Removing the defective riser card
▶
Remove the internal RAID riser module, see "Removing the internal RAID
riser module" on page 273.
▶
Remove the expansion card, see "Removing the expansion card from the
internal RAID riser module" on page
274.

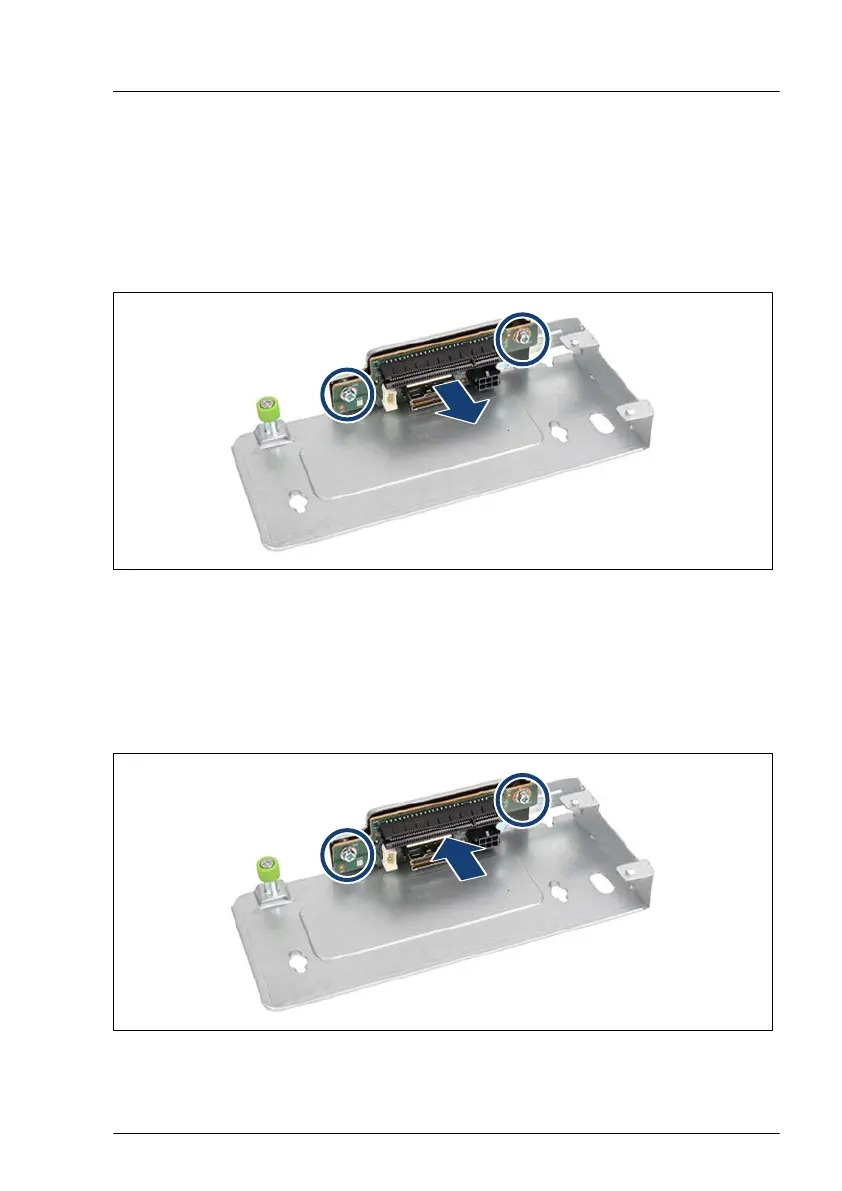

Figure 169: Removing the riser card
▶
Remove the two screws (see circles).
▶
Remove the riser card.
Installing the new riser card
Figure 170: Installing the riser card
Expansion cards and backup units
RX2540 M6 Upgrade and Maintenance Manual 279
