Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

Installing the rear air grid for riser module 2 (if applicable)

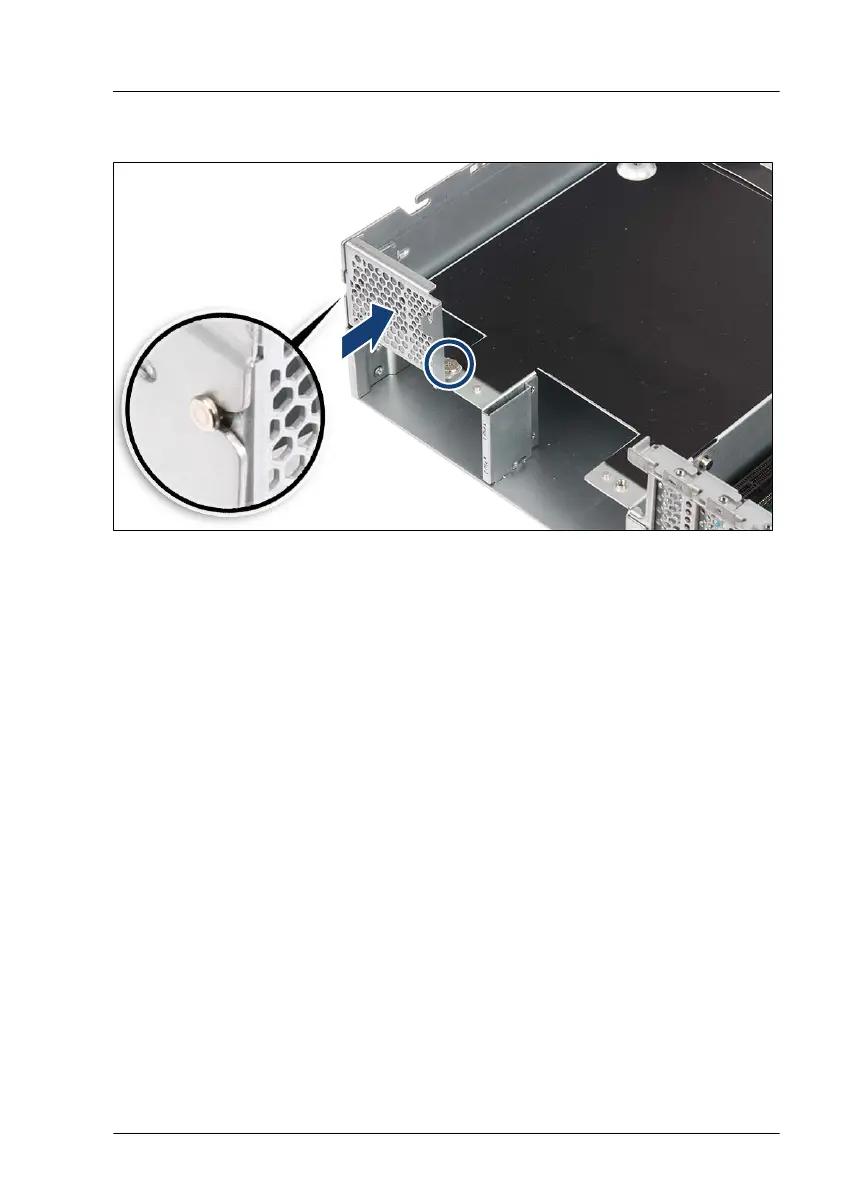

Figure 173: Installing the rear air grid for riser module 2
▶
Position the rear air grid to the chassis. Notice that the recess on the
chassis and bolt on the air grid fit together (see close-up).
▶
Fasten the screw (see circle).
Concluding steps
▶
Install the corresponding riser module, see "Installing a riser module" on
page 72.
▶
"Reassembling" on page 60
.
▶
"Connecting the power cord" on page 65.
▶
"Switching on the server" on page 69.
▶
If applicable, "Installing the front cover with lock" on page 69.
▶
If applicable, update the system information of your server using the Chassis
ID Prom Tool, see "Using the Chassis ID Prom Tool" on page 110.
▶
"Updating expansion card firmware" on page 95.
▶
"Resuming BitLocker functionality" on page 105.
Expansion cards and backup units
RX2540 M6 Upgrade and Maintenance Manual 283

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
