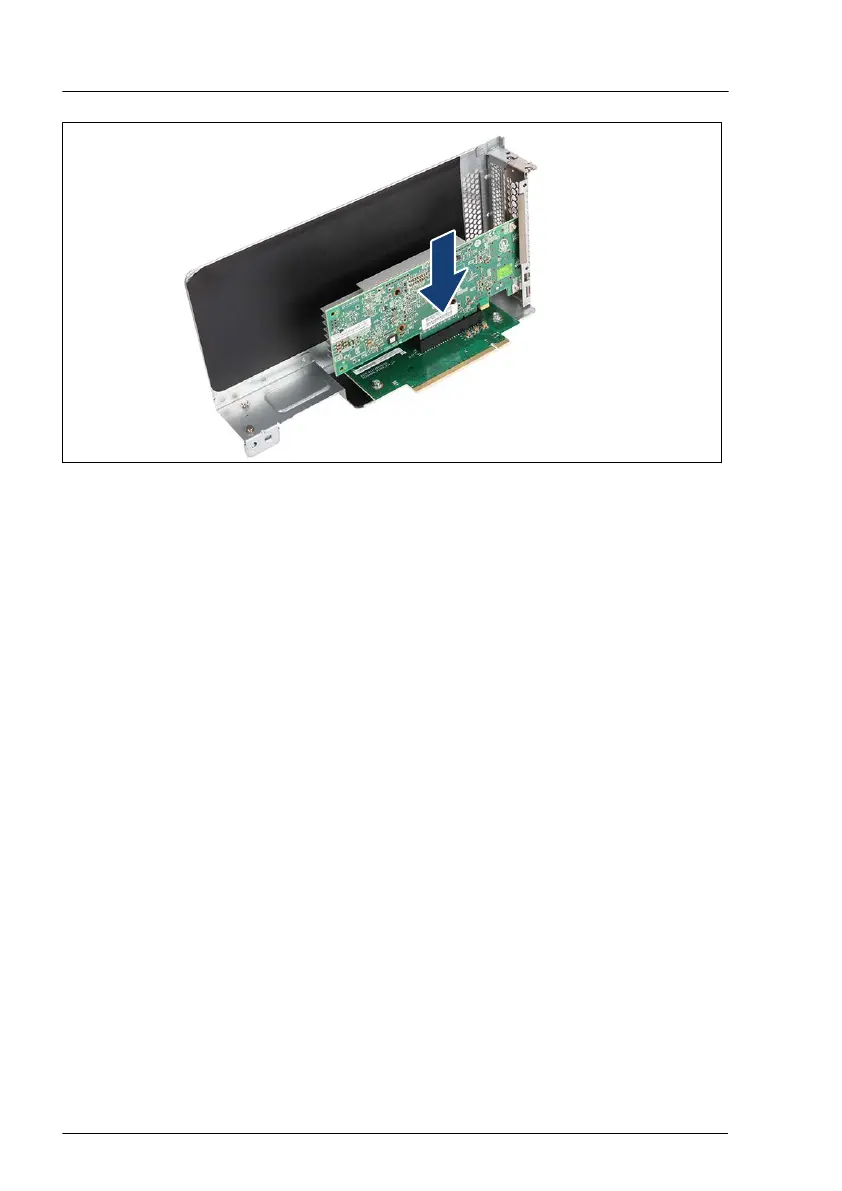

Figure 172: Installing the expansion card in a riser module
▶
Carefully insert the expansion card into the desired PCI slot and press down
firmly until it is fully seated in the slot.
▶
If applicable, install SFP+ transceiver modules into the new expansion card,
see "Installing SFP+ transceiver modules" on page 239
.
▶
If applicable, connect the FBU cable to the FBU, see "Installing an FBU" on
page 317.
Expansion cards and backup units
282 Upgrade and Maintenance Manual RX2540 M6
