Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

Removing the defective riser card
▶
Remove the expansion card, see "Removing the expansion card from a
riser module" on page 284.

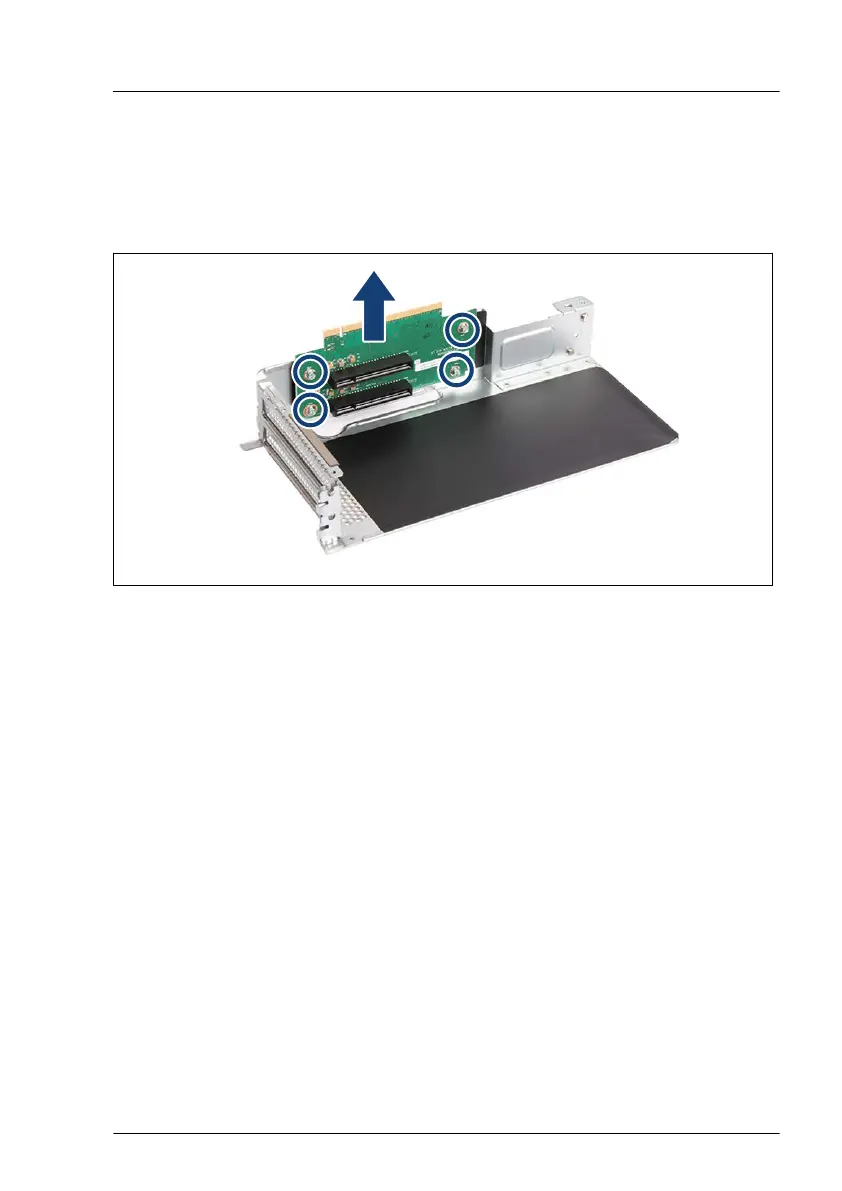

Figure 176: Removing the riser card
▶
Remove the four screws (see circles).
▶
Remove the riser card.
Expansion cards and backup units
RX2540 M6 Upgrade and Maintenance Manual 289

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
