Installing the new riser card

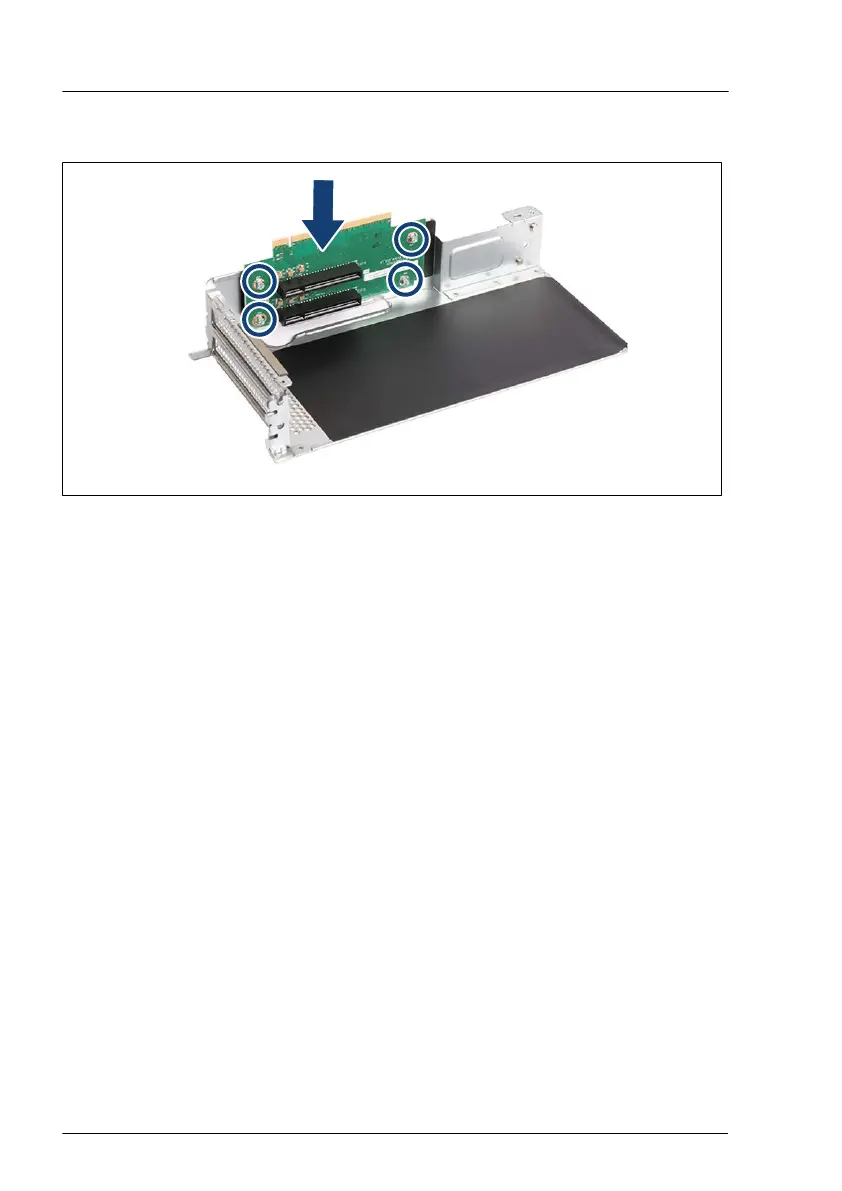

Figure 177: Installing the riser card
▶
Insert the riser card.
▶
Fasten the riser card with four screws (see circles).
▶
Install the expansion card, see "Installing the expansion card in a riser
module" on page
281.
Concluding steps
▶
Install the corresponding riser module, see "Installing a riser module" on
page 72
.
▶
"Reassembling" on page 60.
▶
"Connecting the power cord" on page 65.
▶
"Switching on the server" on page 69.
▶
If applicable, "Installing the front cover with lock" on page 69.
