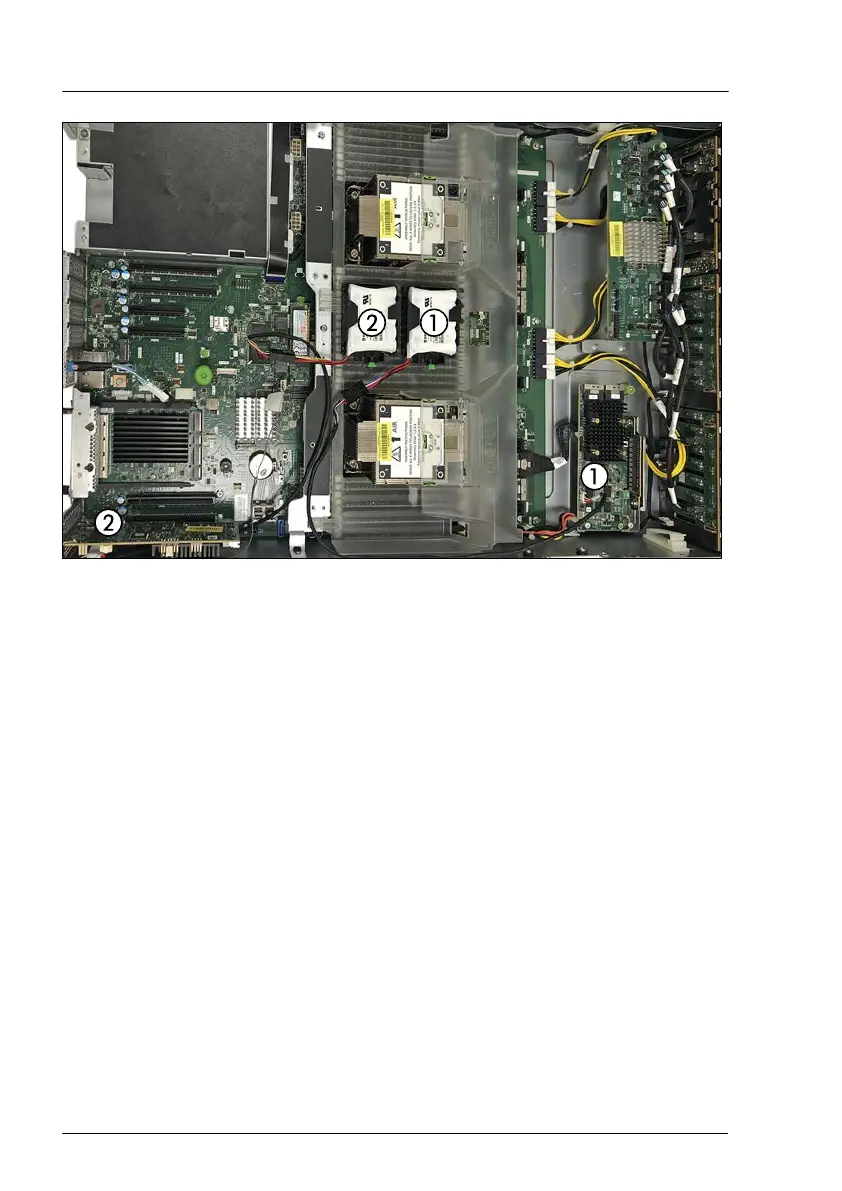

Figure 209: 2x FBUs, 2x SAS EP6xxi RAID controller in internal RAID riser slot and PCIe slot
1
1 Cable to FBU 1 and SAS EP6xxi RAID
controller
2 Cable to FBU 2 and SAS EP6xxi RAID
controller
Expansion cards and backup units
322 Upgrade and Maintenance Manual RX2540 M6
