Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

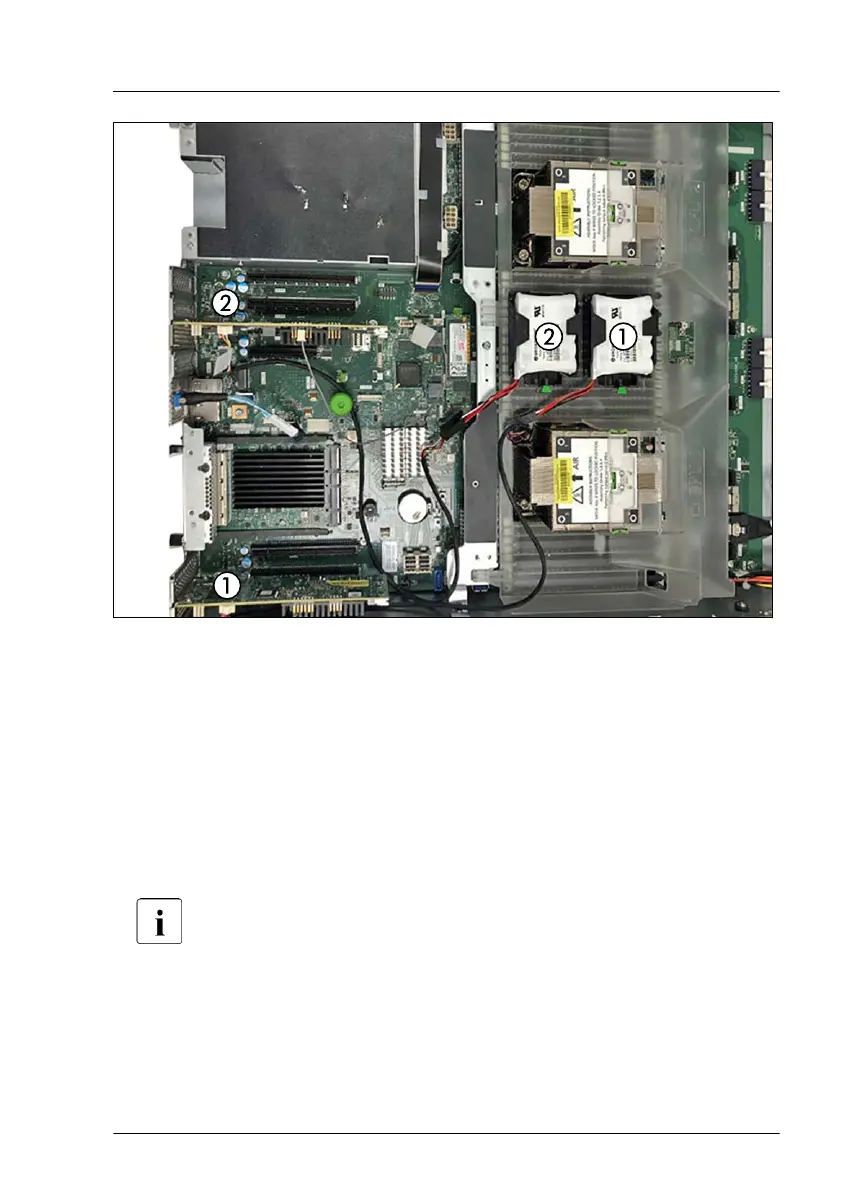

Figure 210: 2x FBUs, 2x SAS EP6xxi RAID controller in PCIe slot 1 and PCIe slot 6
1 Cable to FBU 1 and SAS EP6xxi RAID
controller
2 Cable to FBU 2 and SAS EP6xxi RAID
controller
Concluding steps
▶
"Reassembling" on page
60
.
▶
"Connecting the power cord" on page 65.
▶
"Switching on the server" on page 69.
The recalibration of the FBU starts automatically, and finishes within a
few minutes.
▶
If applicable, "Installing the front cover with lock" on page 69.
Expansion cards and backup units
RX2540 M6 Upgrade and Maintenance Manual 323

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
