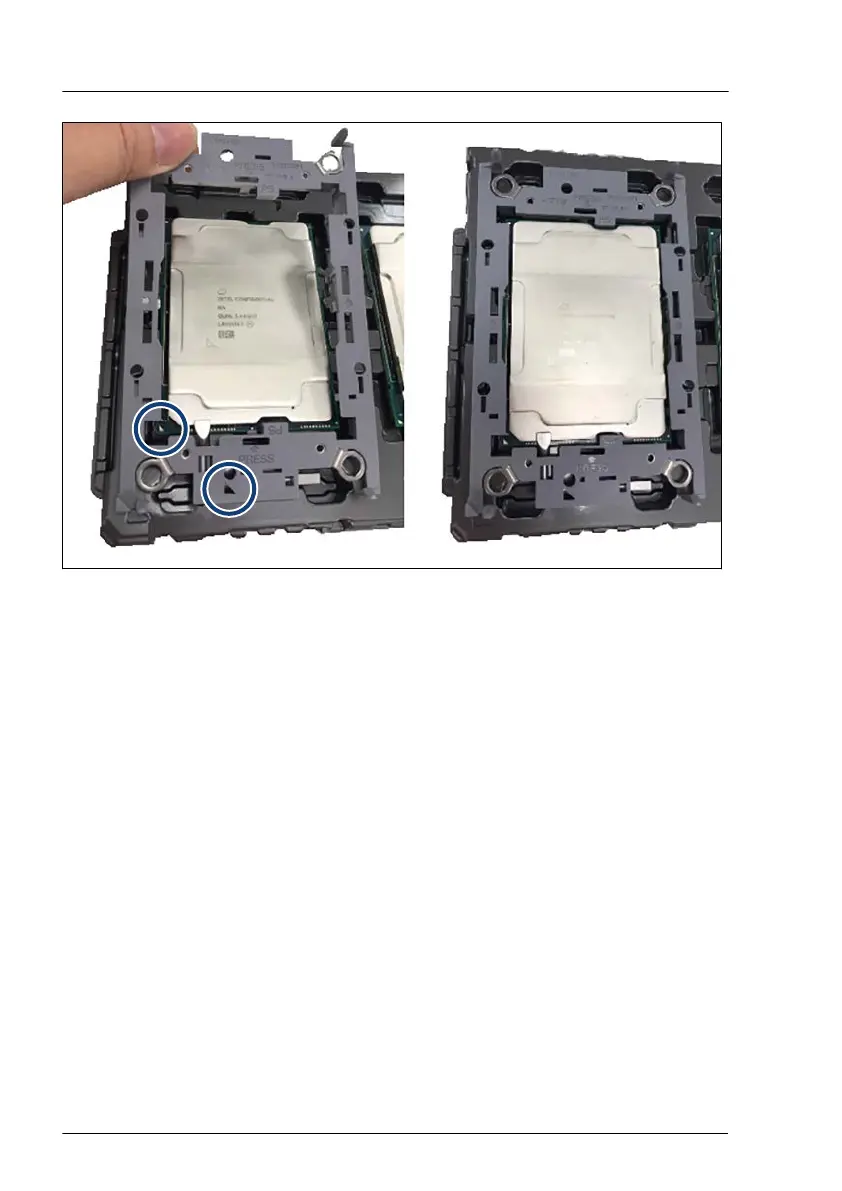

Figure 245: Installing the CPU frame on the CPU
▶
Click the CPU frame into the CPU. Ensure that the triangle marks on CPU
and on CPU frame are on the same edge (see circles).
▶
Ensure that the CPU fits in its place.
Installing the LC kit
▶
When replacing the CPU, apply the thermal paste onto the LC heat sink, see
"Applying the thermal paste to the heat sink surface" on page
363.
Liquid cooling (LC)
376 Upgrade and Maintenance Manual RX2540 M6
