Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

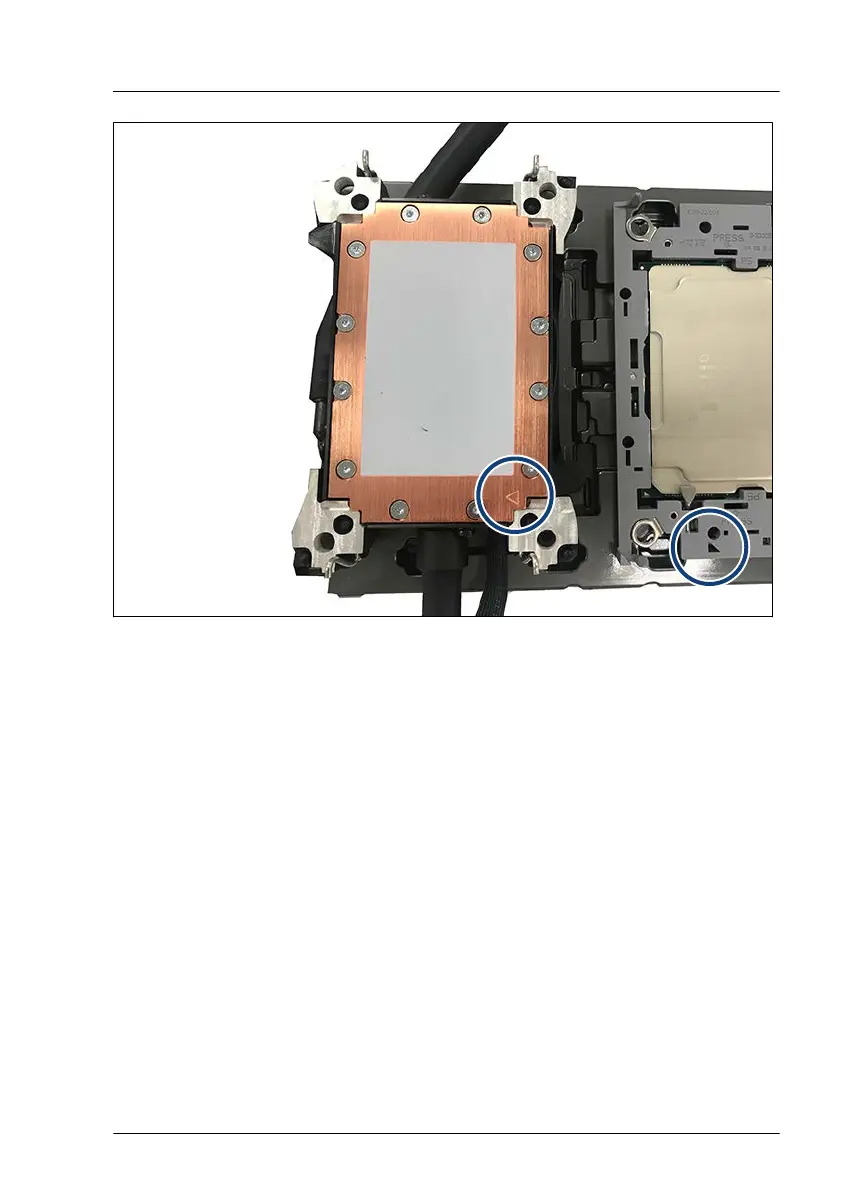

Figure 246: Marks on LC heat sink and CPU frame
▶
When replacing the LC device, remove the protective cover from the heat
sink.
▶
Ensure that the triangle marks on the heat sink and on CPU frame are on
the same edge (see circles).
Liquid cooling (LC)
RX2540 M6 Upgrade and Maintenance Manual 377

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
