Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

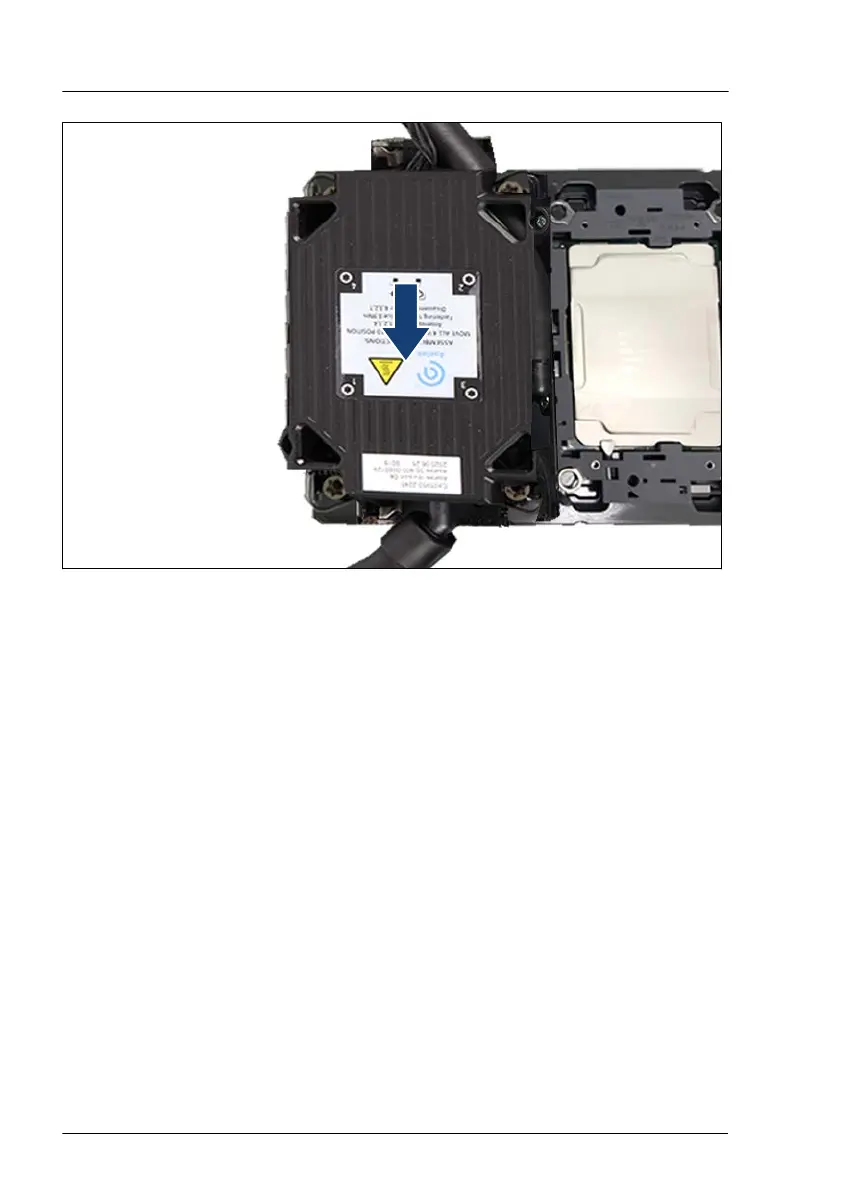

Figure 247: Installing the LC heat sink onto the CPU frame
▶
Place the LC heat sink onto the CPU frame.
▶
Prepare the second CPU and LC heat sink in the same way
.
▶
Hold the complete LC kit with both hands and position it onto the CPU
sockets.
Liquid cooling (LC)
378 Upgrade and Maintenance Manual RX2540 M6

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
