Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

Preparing an RDX drive

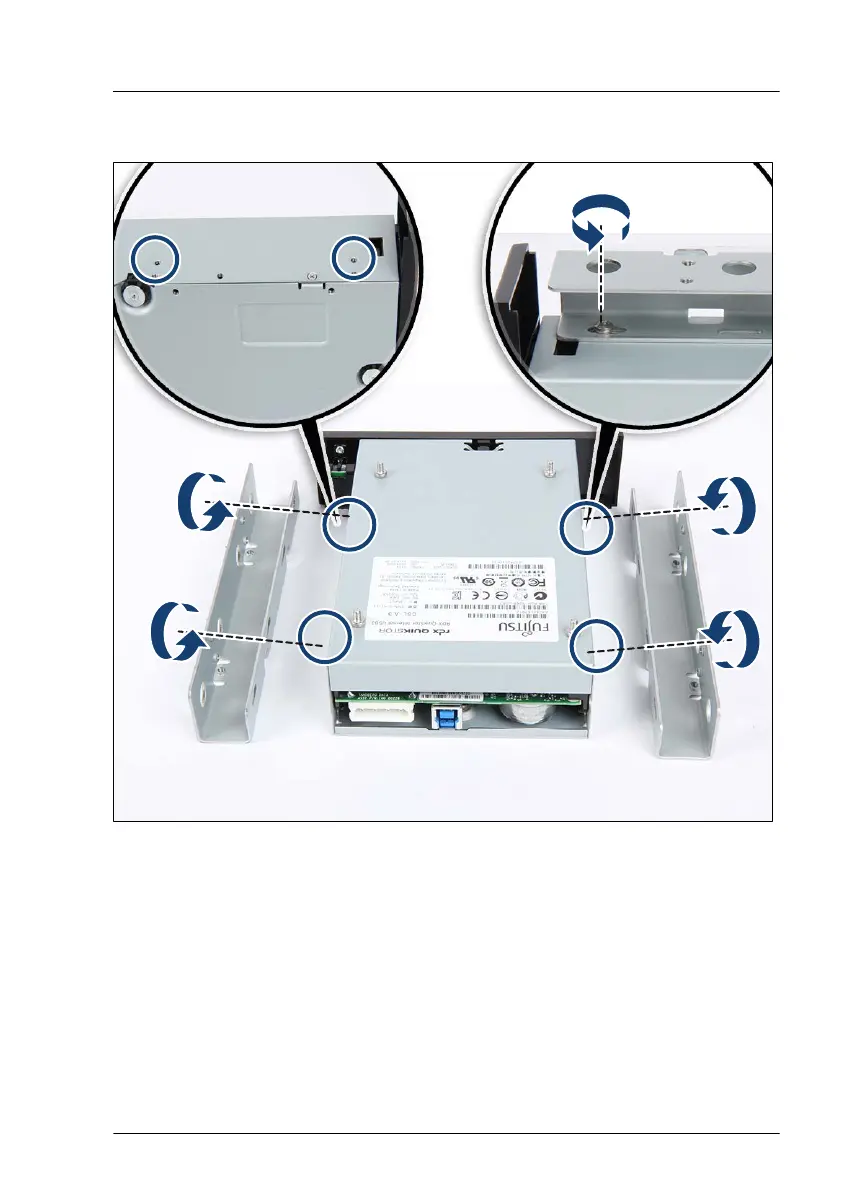

Figure 299: Installing the rails to the RDX drive (A)
▶
Fasten the rails with each two screws (fillister head screw, M3x 5
mm; PZ2,
0.6 Nm; four screws are parts of RDX adapter set). The screws must be
fastened in the middle of the slotted holes.
Accessible drives
RX2540 M6 Upgrade and Maintenance Manual 433

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
