Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

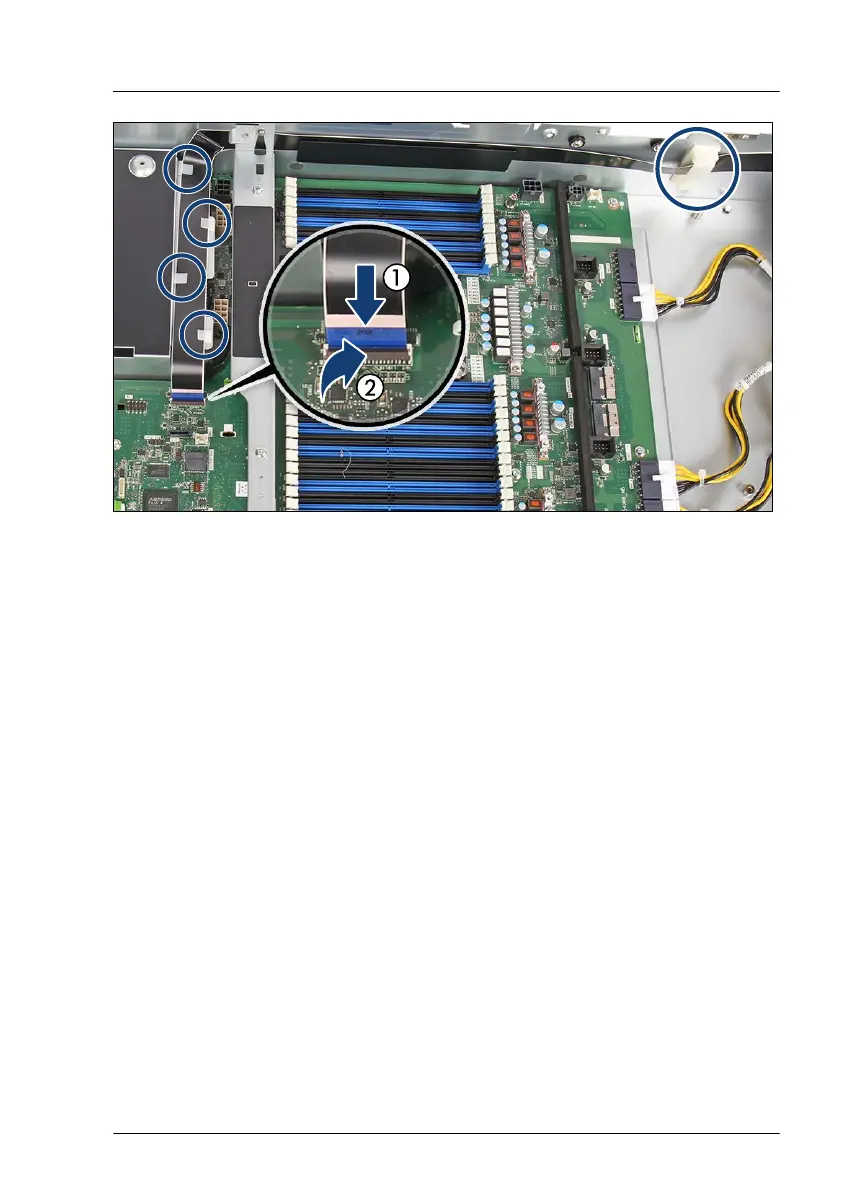

Figure 318: Installing the front panel cable
▶
Bend the cable 90 degrees by hand for easier routing.
▶
Insert the front panel cable in the cable clips (see circles).
▶
Insert the front panel cable in the connector (1).
▶
Press down the locking bar (2).
Concluding steps
▶
"Installing the air duct" on page
79
.
▶
"Removing the fan cage" on page 74.
▶
If applicable, "Installing the riser module 2" on page 73.
▶
"Reassembling" on page 60.
▶
"Connecting the power cord" on page 65.
▶
"Switching on the server" on page 69.
▶
If applicable, "Installing the front cover with lock" on page 69.
▶
"Verifying system information backup or restore" on page 94.
▶
"Resuming BitLocker functionality" on page 105.
Front panel
RX2540 M6 Upgrade and Maintenance Manual 453

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
