Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

Removing the front VGA

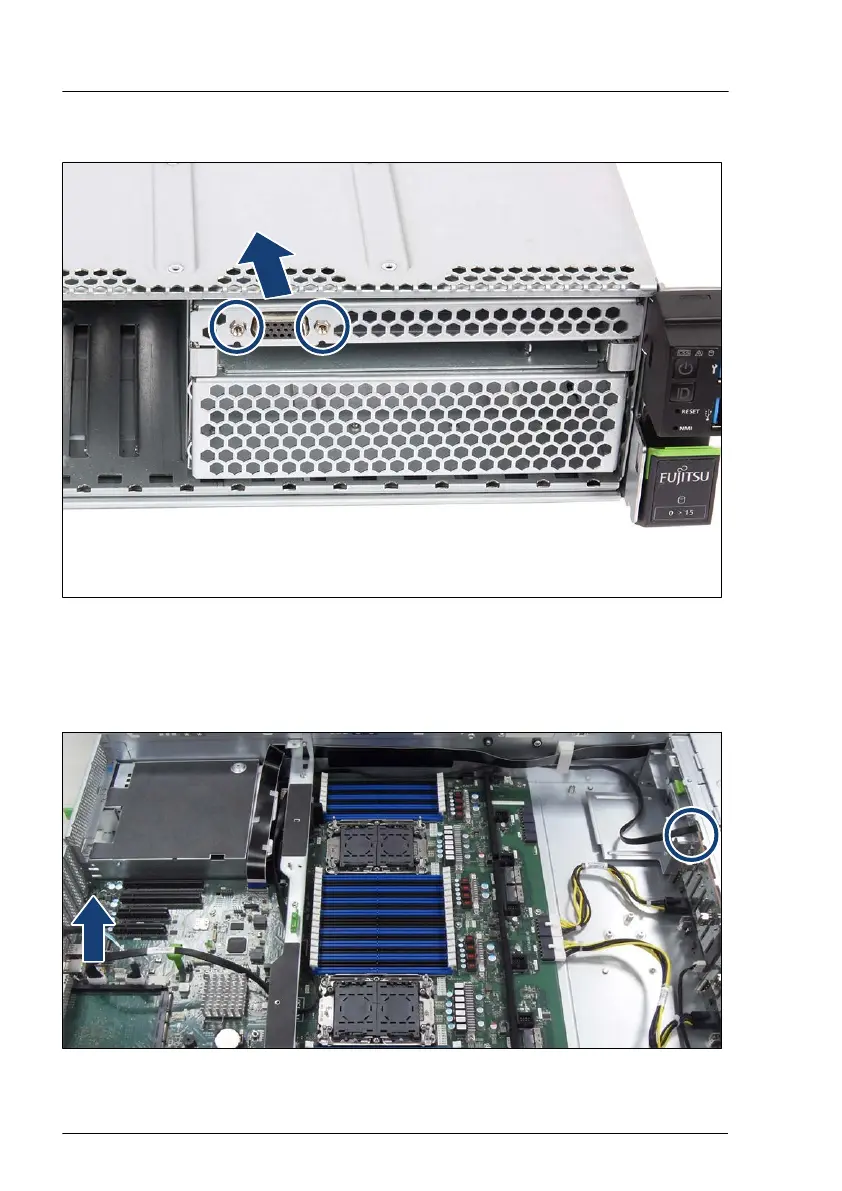

Figure 322: Removing the front VGA
▶
Remove the two screws (see circles).
▶
Pull the front VGA cable out of the opening from the inner side.
Figure 323: Removing the front VGA cable
Front panel
458 Upgrade and Maintenance Manual RX2540 M6

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
