Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

▶
Remove the front VGA cable from the cable clip (see circle).
▶
Disconnect the front VGA cable from the system board connector "Front
VGA" and remove it.
Installing the dummy cover

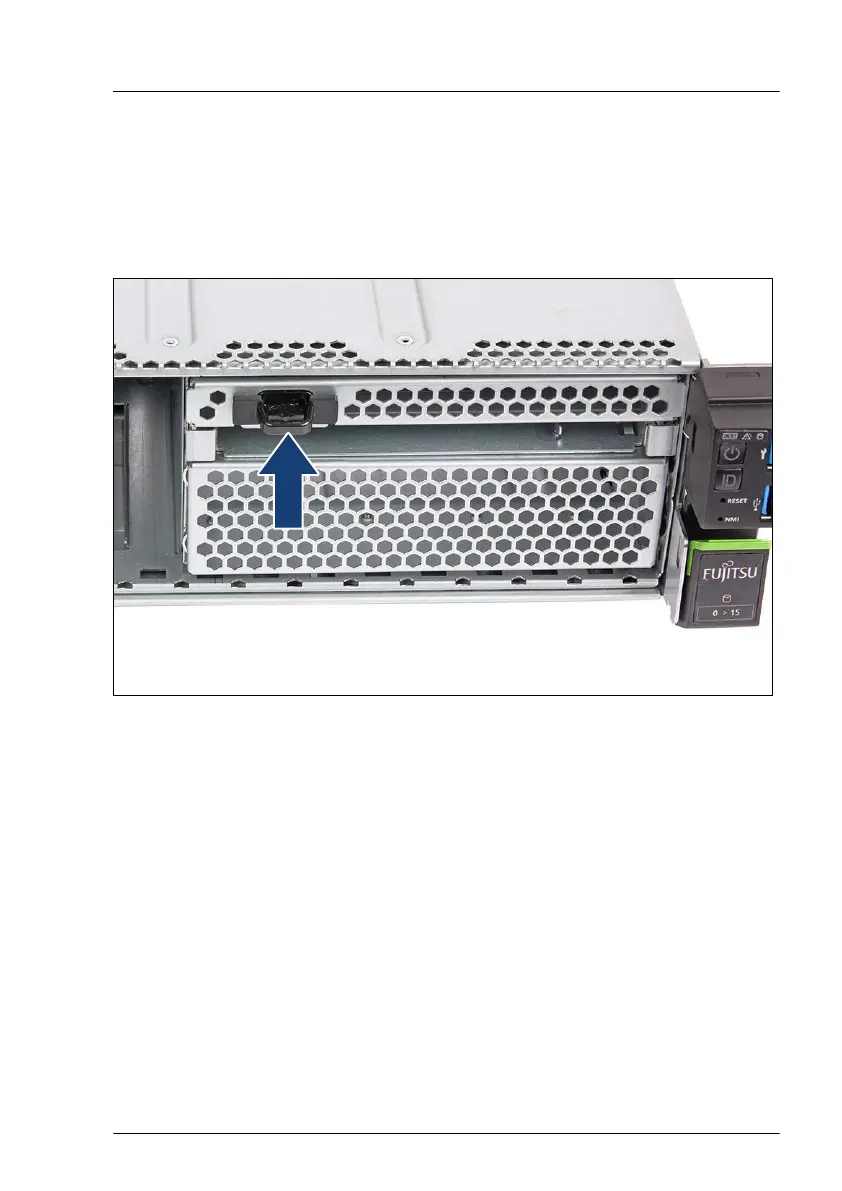

Figure 324: Installing the dummy cover
▶
Install the dummy cover.
Concluding steps
▶
"Installing the air duct" on page
79.
▶
"Installing the fan cage" on page 76.
▶
If applicable, "Installing the riser module 1" on page 72.
▶
"Reassembling" on page 60.
▶
"Connecting the power cord" on page 65.
▶
"Switching on the server" on page 69.
▶
If applicable, "Installing the front cover with lock" on page 69.
Front panel
RX2540 M6 Upgrade and Maintenance Manual 459

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
