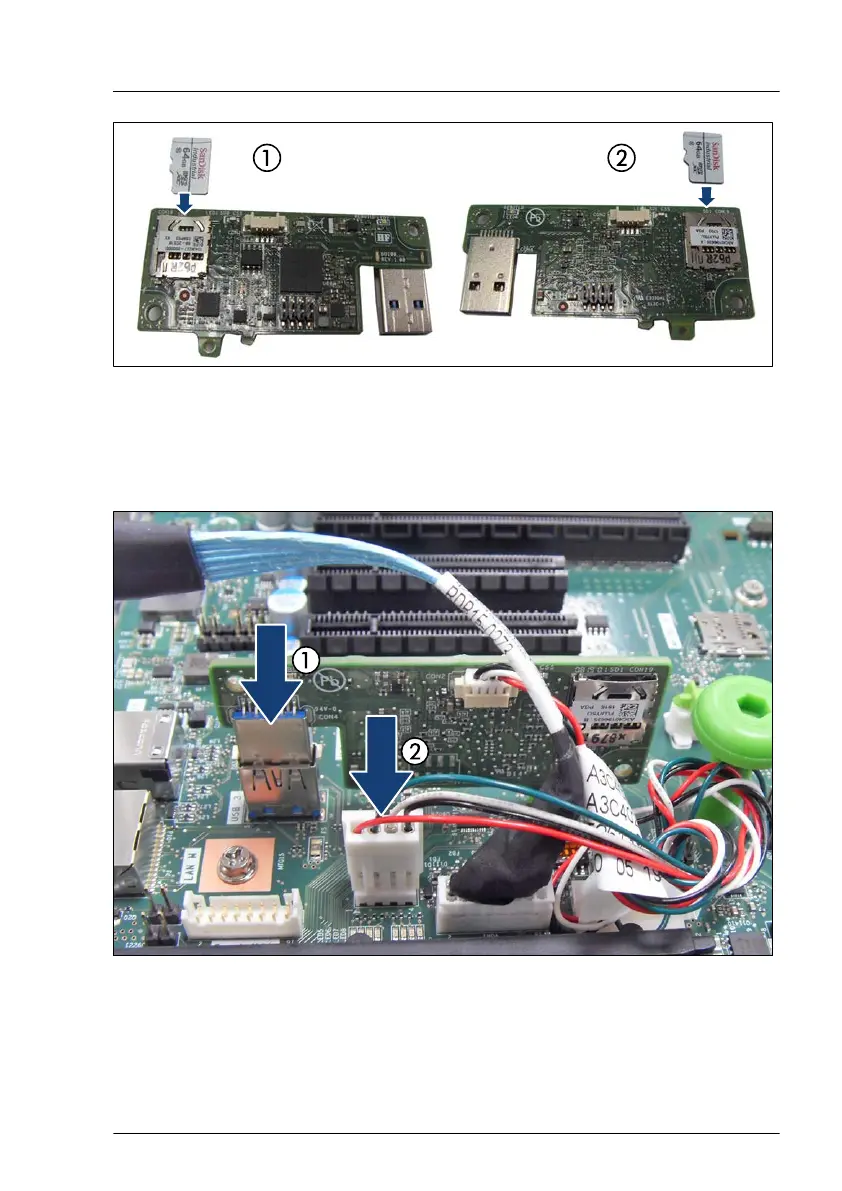

Figure 354: Installing the microSD card
▶
Install the microSD card on the top side (1) or on the bottom side (2) or in
both sides in the corresponding slot. For the installation of the microSD card,
see "Replacing the Dual microSD 64GB Enterprise" on page 512.
Figure 355: Installing the Dual microSD 64GB Enterprise (A)
▶
Install the Dual microSD 64GB Enterprise into the connector "Internal USB
3.0" on the bottom system board (1).
▶
Connect the cable to the connector "ROC" on the bottom system board (2).
System board and components
