Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

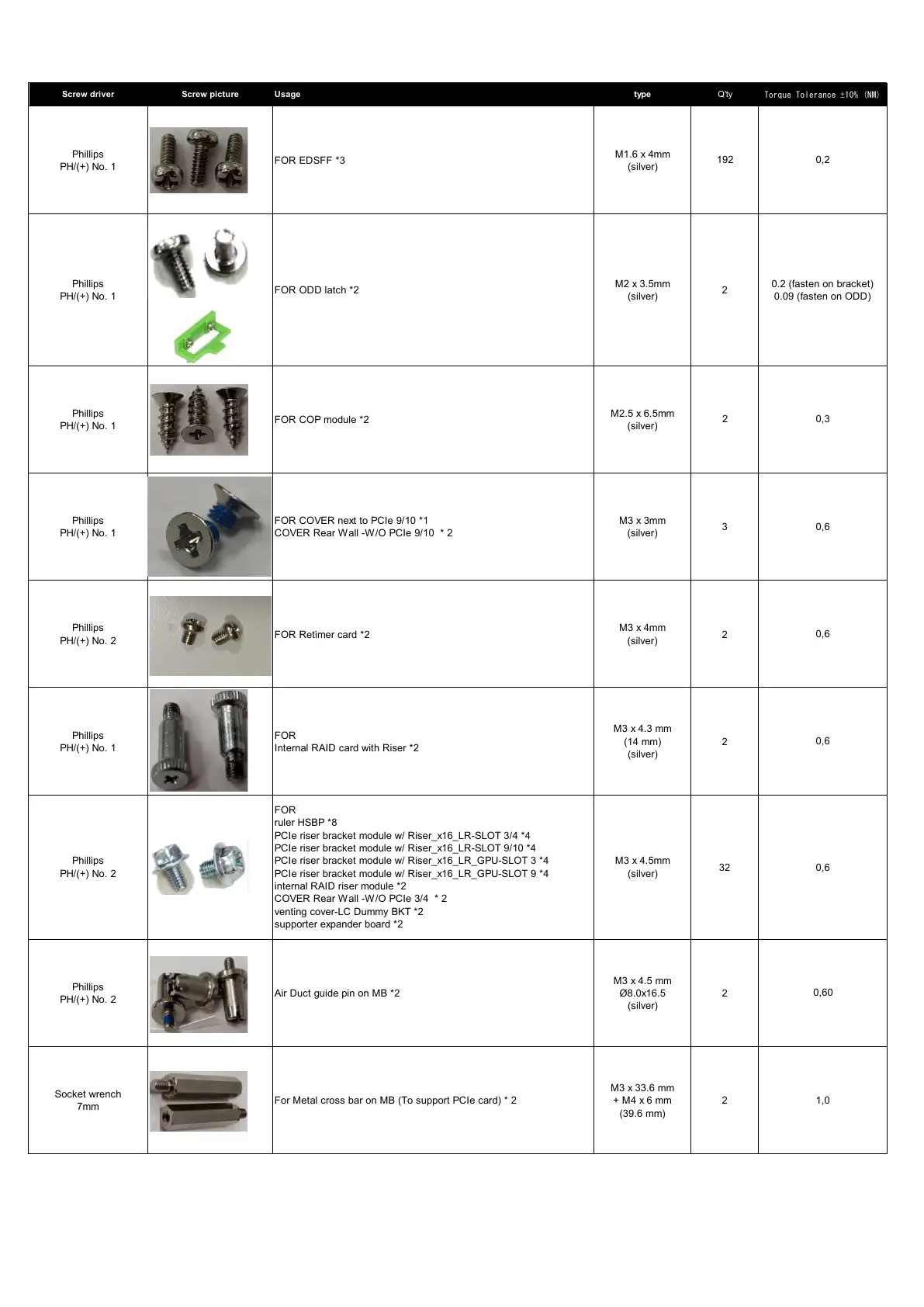

Screw driver Screw picture Usage type Q'ty
Torque Tolerance ±10% (NM)
Phillips
PH/(+) No. 1
FOR EDSFF *3
M1.6 x 4mm
(silver)
192 0,2
Phillips
PH/(+) No. 1
FOR ODD latch *2
M2 x 3.5mm
(silver)
2
0.2 (fasten on bracket)
0.09 (fasten on ODD)
Phillips
PH/(+) No. 1
FOR COP module *2
M2.5 x 6.5mm
(silver)
2 0,3
Phillips
PH/(+) No. 1
FOR COVER next to PCIe 9/10 *1
COVER Rear Wall -W/O PCIe 9/10 * 2
M3 x 3mm
(silver)
3
0,6
Phillips
PH/(+) No. 2
FOR Retimer card *2
M3 x 4mm
(silver)
2
0,6
Phillips
PH/(+) No. 1
FOR
Internal RAID card with Riser *2
M3 x 4.3 mm
(14 mm)
(silver)
2
0,6
Phillips
PH/(+) No. 2
FOR
ruler HSBP *8
PCIe riser bracket module w/ Riser_x16_LR-SLOT 3/4 *4
PCIe riser bracket module w/ Riser_x16_LR-SLOT 9/10 *4
PCIe riser bracket module w/ Riser_x16_LR_GPU-SLOT 3 *4
PCIe riser bracket module w/ Riser_x16_LR_GPU-SLOT 9 *4
internal RAID riser module *2
COVER Rear Wall -W/O PCIe 3/4 * 2
venting cover-LC Dummy BKT *2
supporter expander board *2
M3 x 4.5mm
(silver)
32 0,6
Phillips
PH/(+) No. 2
Air Duct guide pin on MB *2
M3 x 4.5 mm
Ø8.0x16.5
(silver)
2
0,60
Socket wrench
7mm
For Metal cross bar on MB (To support PCIe card) * 2
M3 x 33.6 mm
+ M4 x 6 mm
(39.6 mm)
2
1,0

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
