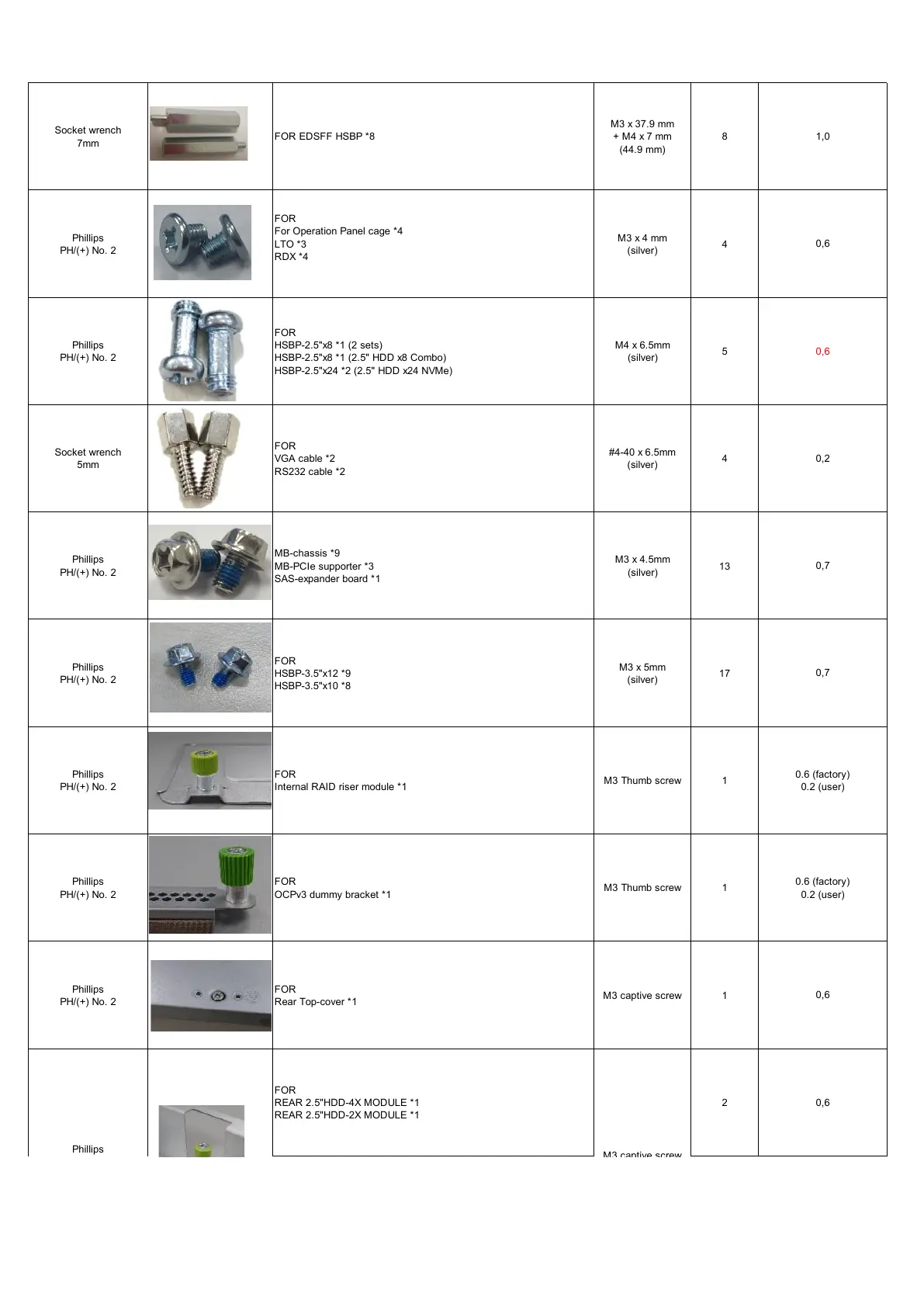

Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

Socket wrench
7mm
FOR EDSFF HSBP *8
M3 x 37.9 mm
+ M4 x 7 mm
(44.9 mm)
8
1,0
Phillips
PH/(+) No. 2
FOR
For Operation Panel cage *4
LTO *3
RDX *4
M3 x 4 mm
(silver)
4
0,6
Phillips
PH/(+) No. 2
FOR
HSBP-2.5"x8 *1 (2 sets)
HSBP-2.5"x8 *1 (2.5" HDD x8 Combo)
HSBP-2.5"x24 *2 (2.5" HDD x24 NVMe)
M4 x 6.5mm
(silver)
5
0,6
Socket wrench
5mm
FOR
VGA cable *2
RS232 cable *2
#4-40 x 6.5mm
(silver)
4
0,2
Phillips
PH/(+) No. 2
MB-chassis *9
MB-PCIe supporter *3
SAS-expander board *1
M3 x 4.5mm
(silver)
13
0,7
Phillips
PH/(+) No. 2
FOR
HSBP-3.5"x12 *9
HSBP-3.5"x10 *8
M3 x 5mm
(silver)
17
0,7
Phillips
PH/(+) No. 2
FOR
Internal RAID riser module *1
M3 Thumb screw 1
0.6 (factory)
0.2 (user)
Phillips
PH/(+) No. 2
FOR
OCPv3 dummy bracket *1
M3 Thumb screw 1
0.6 (factory)
0.2 (user)
Phillips
PH/(+) No. 2
FOR
Rear Top-cover *1
M3 captive screw 1
0,6
FOR
REAR 2.5"HDD-4X MODULE *1
REAR 2.5"HDD-2X MODULE *1
2
0,6
Phillips
PH/(+) No. 2
M3 captive screw

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
