Masterpiece
User Manual

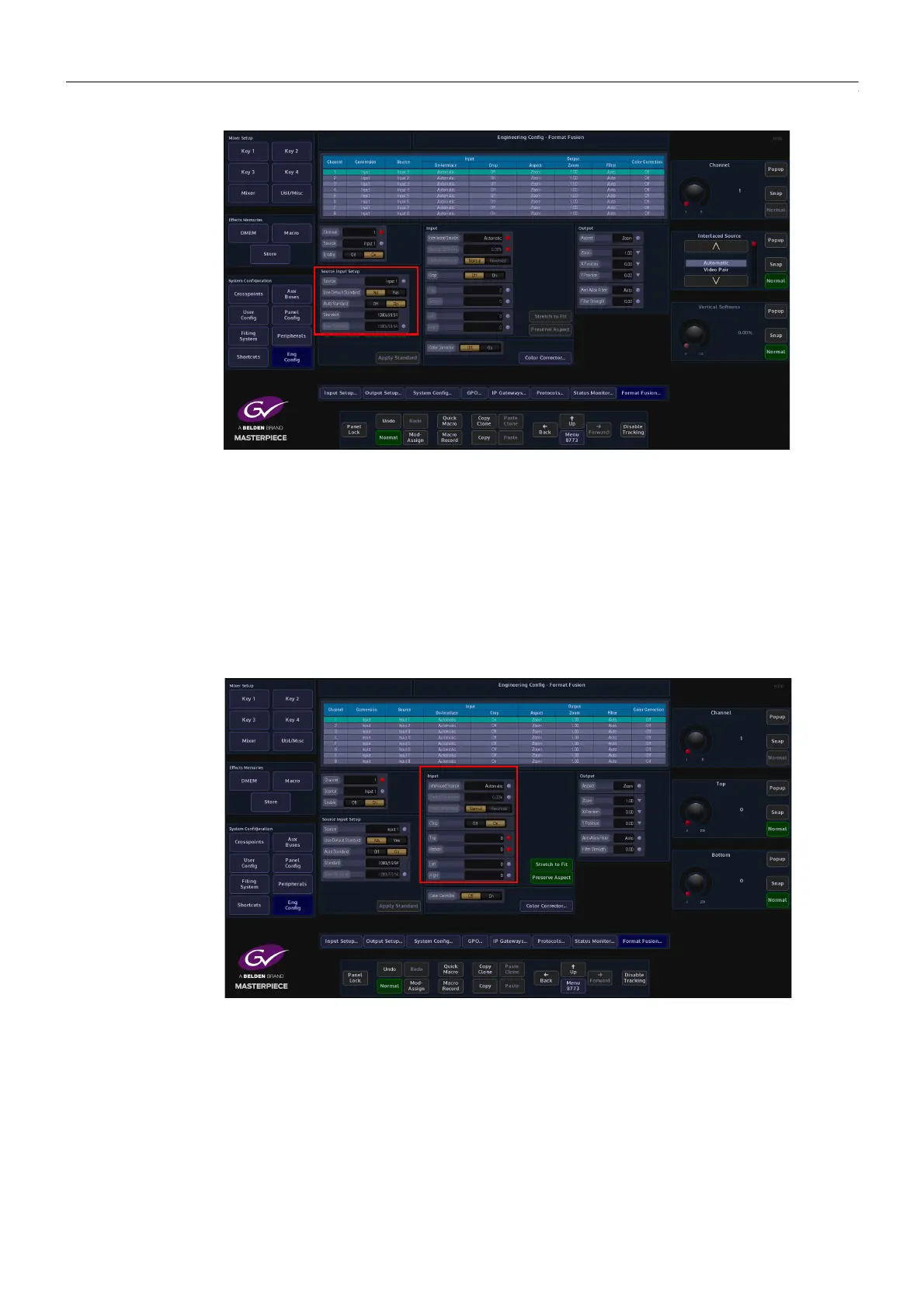

Source Input Setup
Source - This selects the BNC Input.
Use Default Standard - This parameter will force the input source to use the default
mainframe video standard which is set in the Eng Config - System Standard menu. The
Default Standard can be changed using the New Standard parameter, use the Up/Down scroll
buttons to select the required standard, then touch the {Apply} button.
Auto Standard - The video standard for the incoming source can be set to the default
mainframe video standard or changed to a new standard using the {Auto Standard} button
which will allow the system to “auto detect” the incoming source video standard and will keep
the original video standard of the incoming source.
Input
Interlaced Source - This has 4 parameter settings, these settings are listed below:
Automatic is the default setting for Interlaced Source it is the most suitable mode for live
program making. When creating the current field/frame, the automatic setting will use the
current input field and a percentage of both the previous and next input fields. Typically used
when the output of a camera is fed to the switcher as a continuous stream of footage.
Video Pair is used when creating the current field/frame, will use the current input field and a
percentage of either the previous or next field to maintain 1-2 or 2-1 pairing. This could be
used for pre-prepared material with cuts on known field boundaries to prevent possible subtle
