1126800 SmartPAC 2 with WPC Integration
Page 114 Chapter 2 Installing SmartPAC 2 and WPC

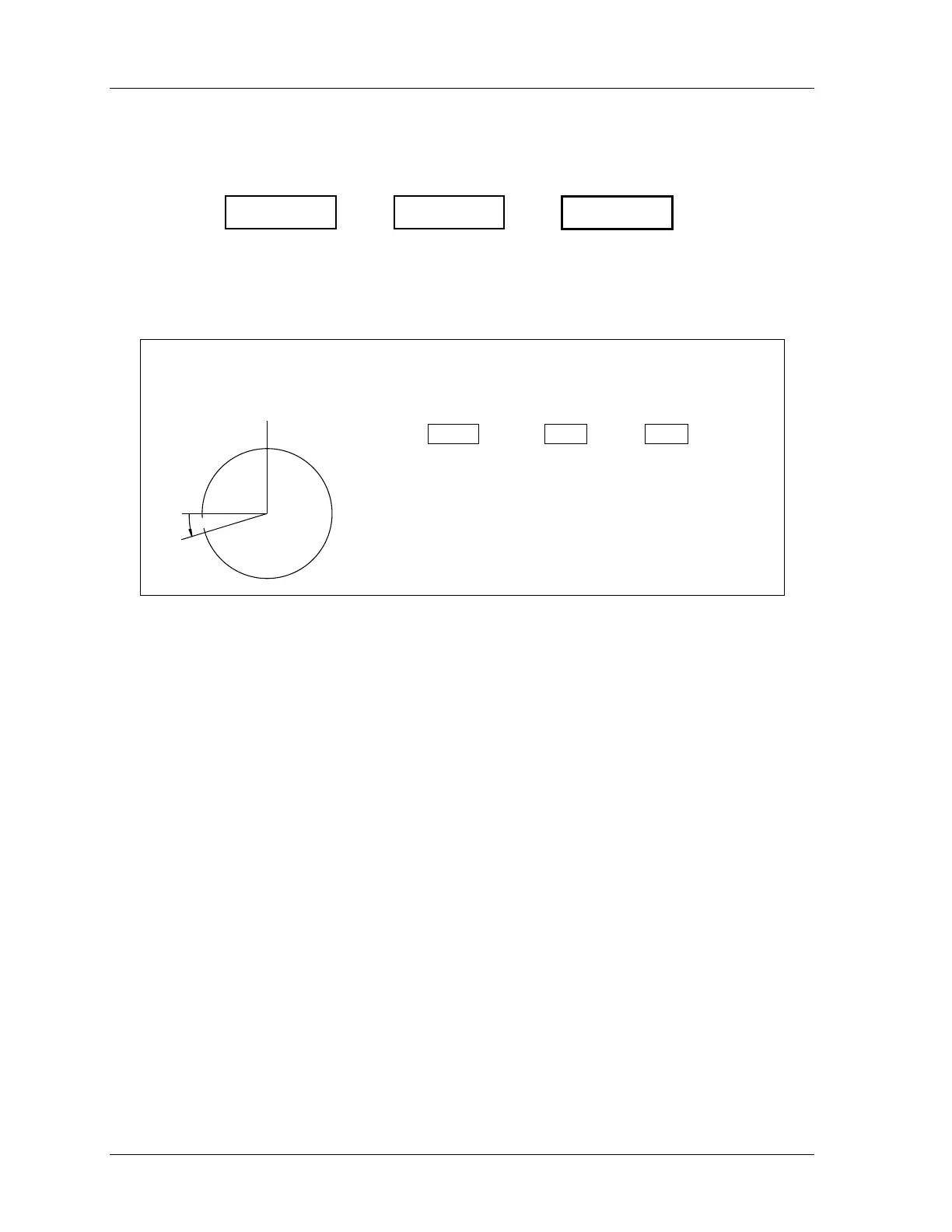

3. Fill in the boxes to find the New Top Stop Angle, by subtracting the Overshoot Angle
from the Old Top Stop Angle.
° ° = °
Old New
Top Stop Overshoot = Top Stop
Angle Angle Angle
(from step 1) (from step 2)
Example:
TDC
360°
(0°)
Old
Top Stop
Angle
270°
255°
New
Top Stop
Angle
15°
_270° _15° = _255°
Old New
Top Stop Overshoot = Top Stop
Angle Angle Angle
(from step 1) (from step 2)
4. In Run mode, select PRESS CONTROL. The value of the Old Top Stop Angle appears
next to “Top Stop Angle” at the top of the menu.
5. Enter the New Top Stop Angle: Highlight the “Top Stop Angle” value and press ENTER.
Adjust the setting by pressing the up and down cursor keys as required. When the
New Top Stop Angle value shows in the display, press RESET and go to the next section.
Go to the next section to check how the press top stops with the new top stop angle.
