SmartPAC 2 with WPC Integration 1126800
Installing SmartPAC 2 and WPC Chapter 2 page 113

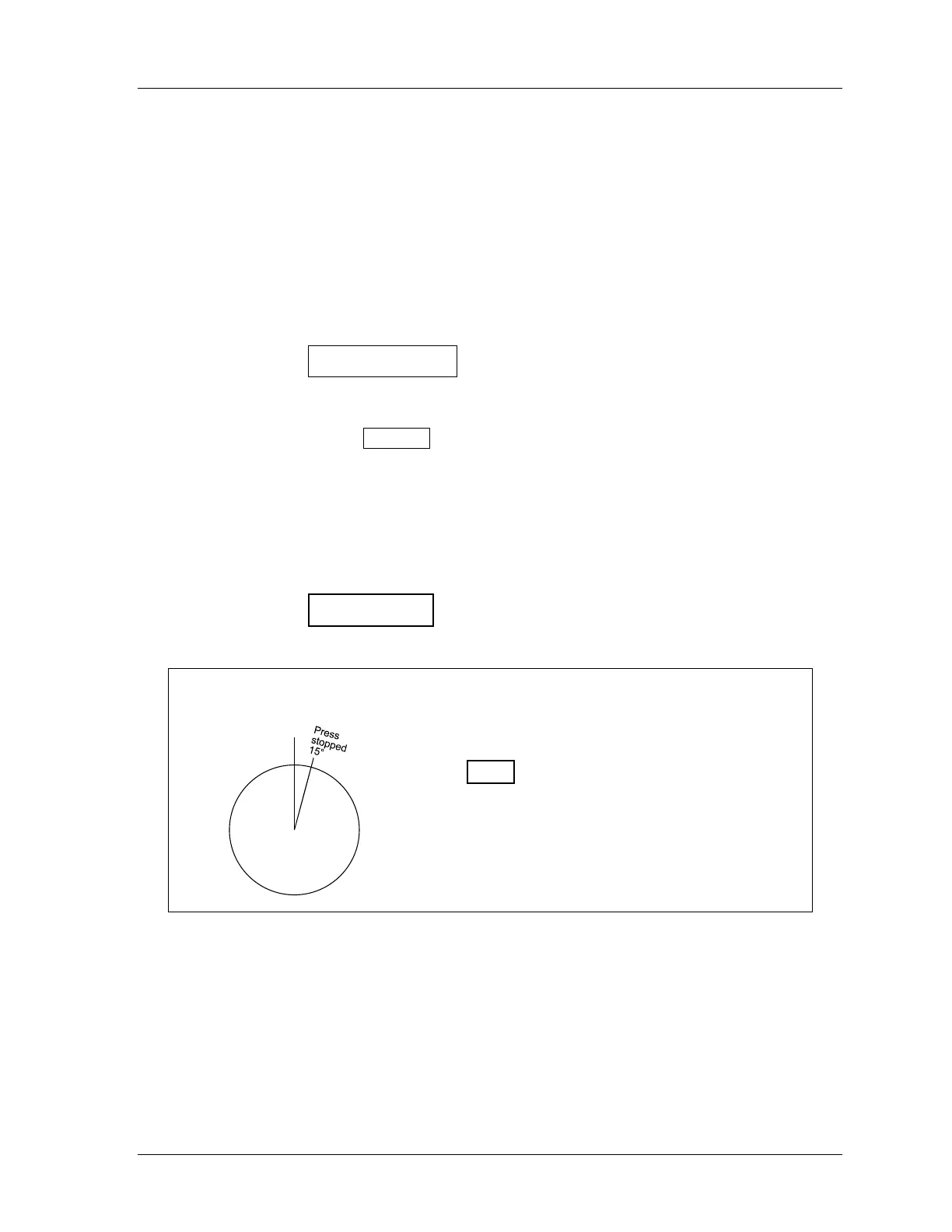

Determine Top Stop Angle if Press Stopped AFTER TDC (Between 0°
°°
° and 180°
°°
° )
If the press stopped AFTER TDC, find and set the correct Top Stop Angle by following the
steps below. Refer to the example given.
1. In Run mode, select PRESS CONTROL. Read the value of the Top Stop Angle at the top
of the menu that appears. This will be the “Old Top Stop Angle” in your calculations,
below. Write this value in the box.
_ ° Old Top Stop Angle
Example:
__270 ° Old Top Stop Angle
2. Press RESET. In step 4 on page109, you wrote the Average Angle the Press Stopped.
Write this number in the box below. This is where the press actually stopped, and, since
it is after TDC, will be called the “Overshoot Angle.”
° Overshoot Angle
Example:
TDC
360°
(0°)
15 ° Overshoot Angle
