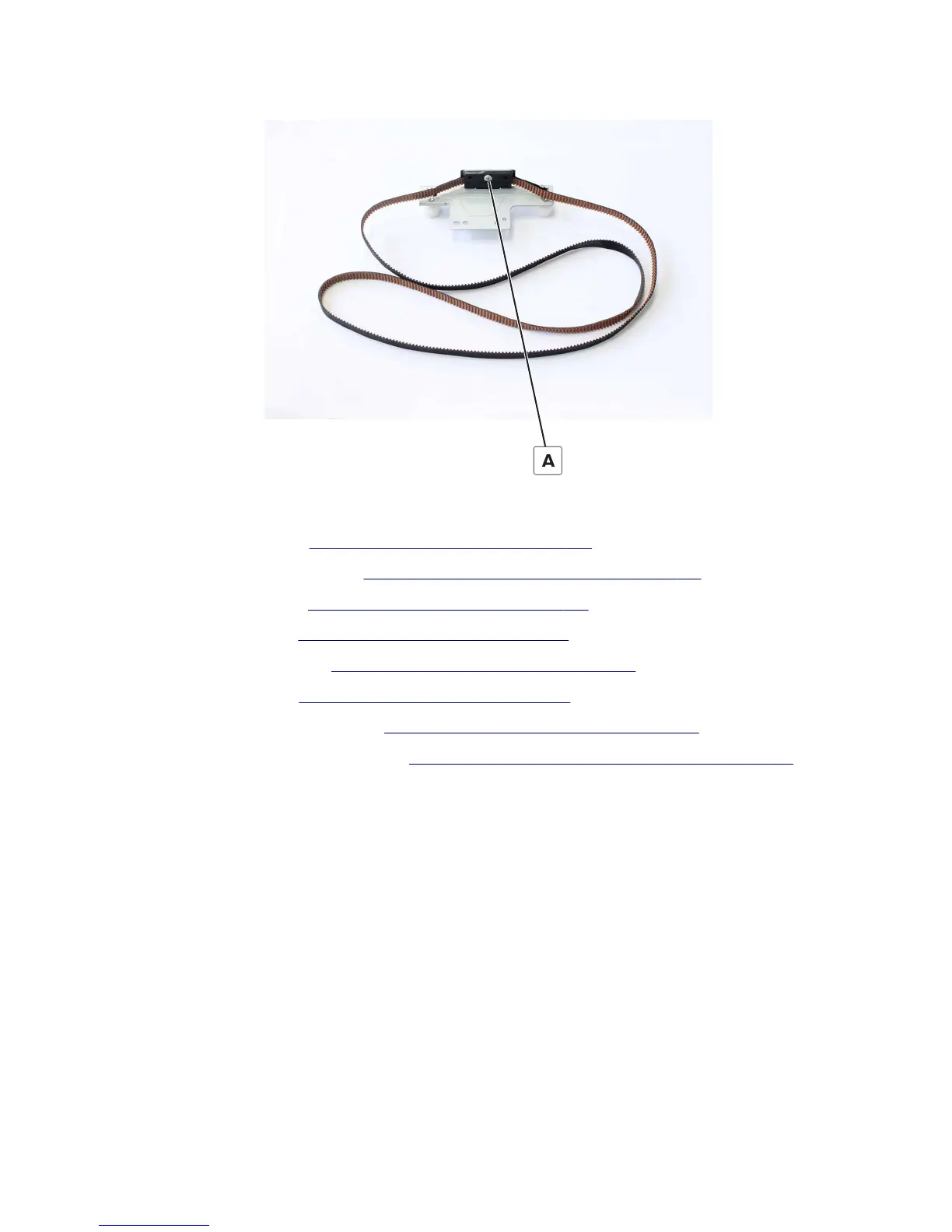

8 Remove the screw (A), and then remove the belt from the holder.
Elevator front belt removal
1
Remove the elevator bin. See “SHPF elevator bin removal” on page 331.
2 Remove the elevator bin bracket. See “SHPF elevator bin bracket removal” on page 332.
3 Remove the lower cover. See “SHPF lower cover removal” on page 333.
4 Remove the front door. See “SHPF front door removal” on page 336.
5 Remove the top inner cover. See “SHPF top inner cover removal” on page 336.
6 Remove the post cover. See “SHPF post cover removal” on page 338.
7 Remove the elevator motor bracket. See “Motor (SHPF elevator) removal” on page 359.
8 Remove the elevator bottom front gear. See “SHPF elevator bottom front gear removal” on page 376.
9 Remove the belt.
4021, 7421
Repair information
378
