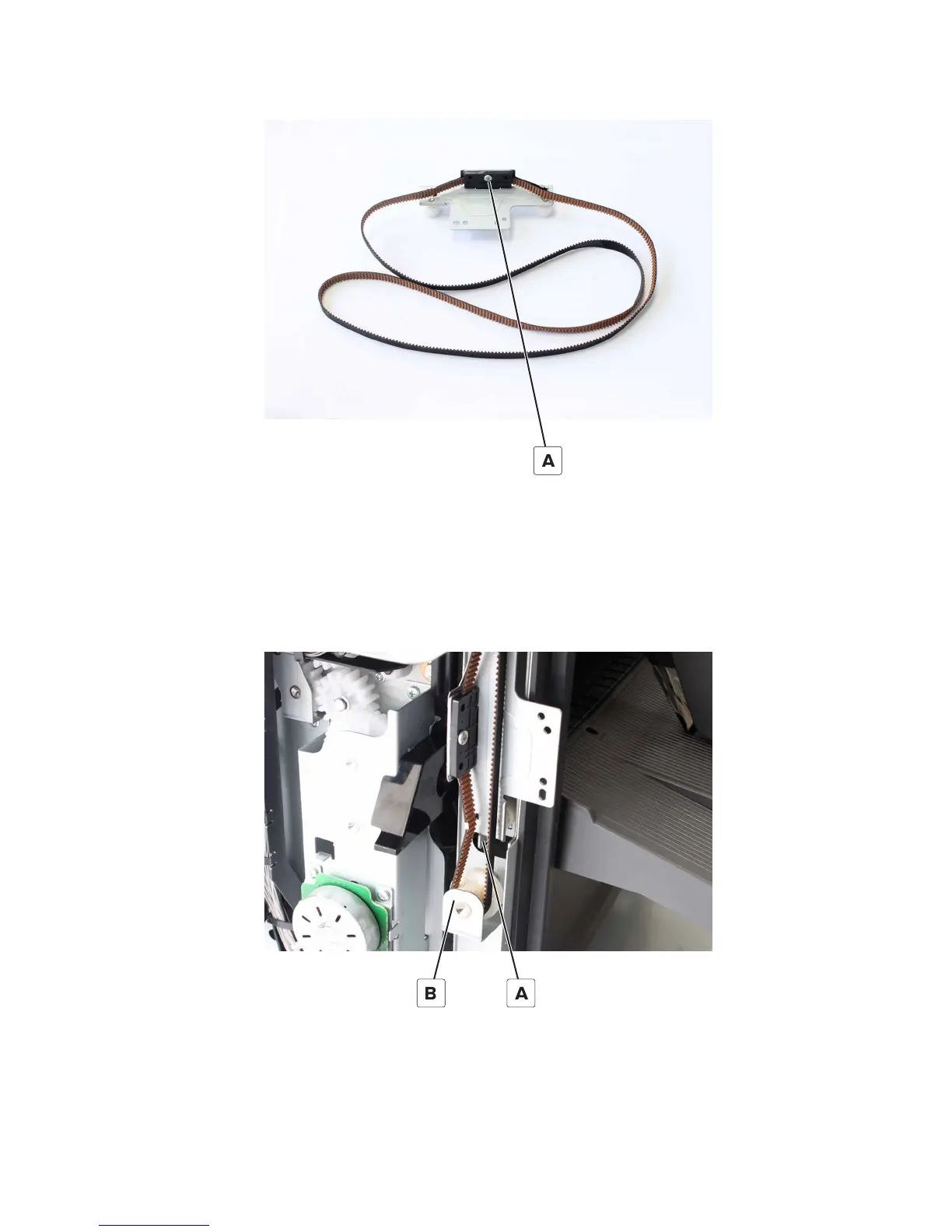

10 Remove the screw (A), and then remove the belt from the holder.
Installation notes:
a Make sure the motor (SHPF elevator) is not yet installed.
b Install the belts on the elevator bottom gears.
c Set both elevator plates on the stoppers (A).
d Mount the bottom elevator gear brackets (B) on the finisher frame. Do not tighten the bracket screws.
4021, 7421
Repair information
379
