12 Remove the gear (E).

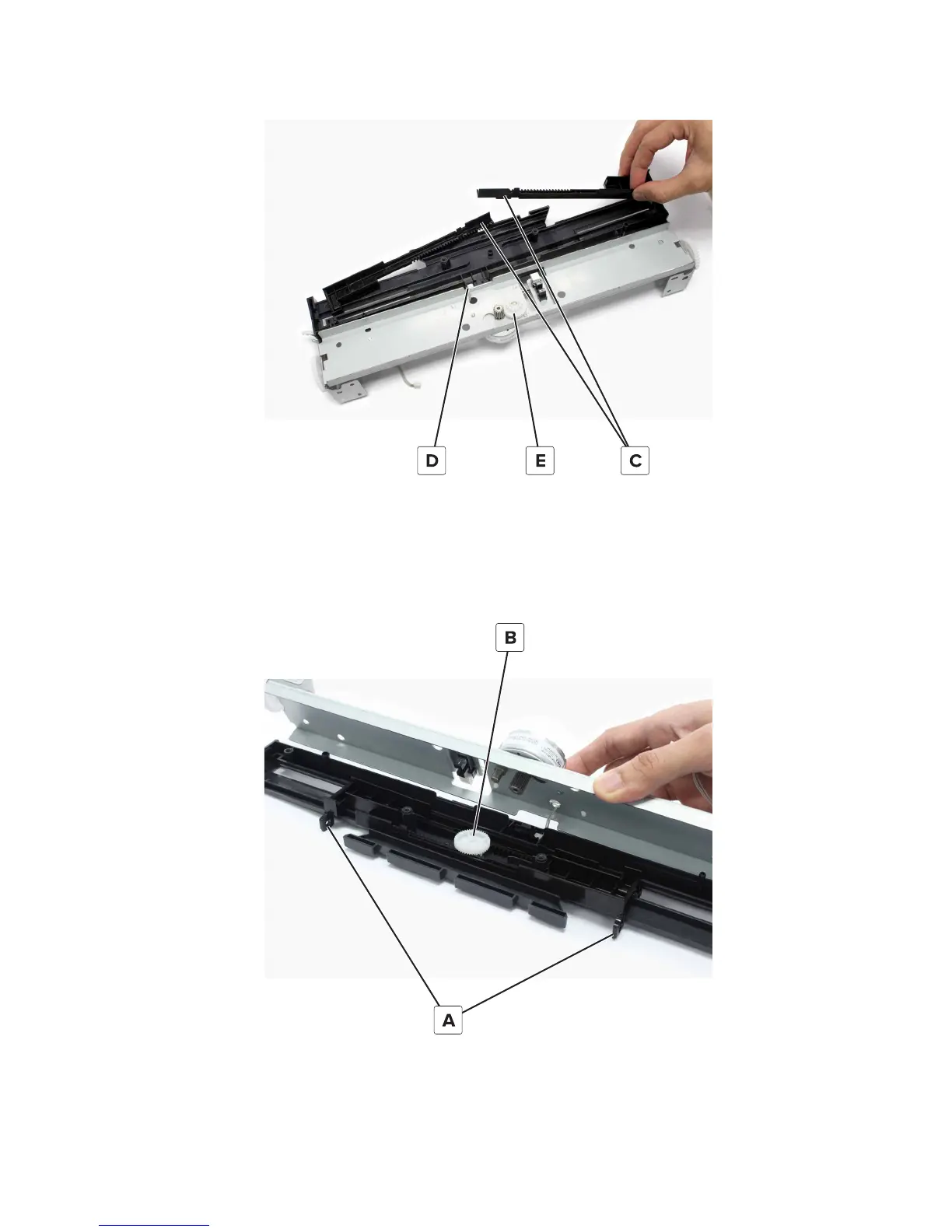

Installation notes:
a Install the sensor (booklet maker tamper paper present).
b Place the tamper racks (A) at the innermost position.
c Install the gear (B) on the tamper tray.
d Install the tamper tray on the metal bracket.
e Test if the tampers are synchronized, and then install the screws.
