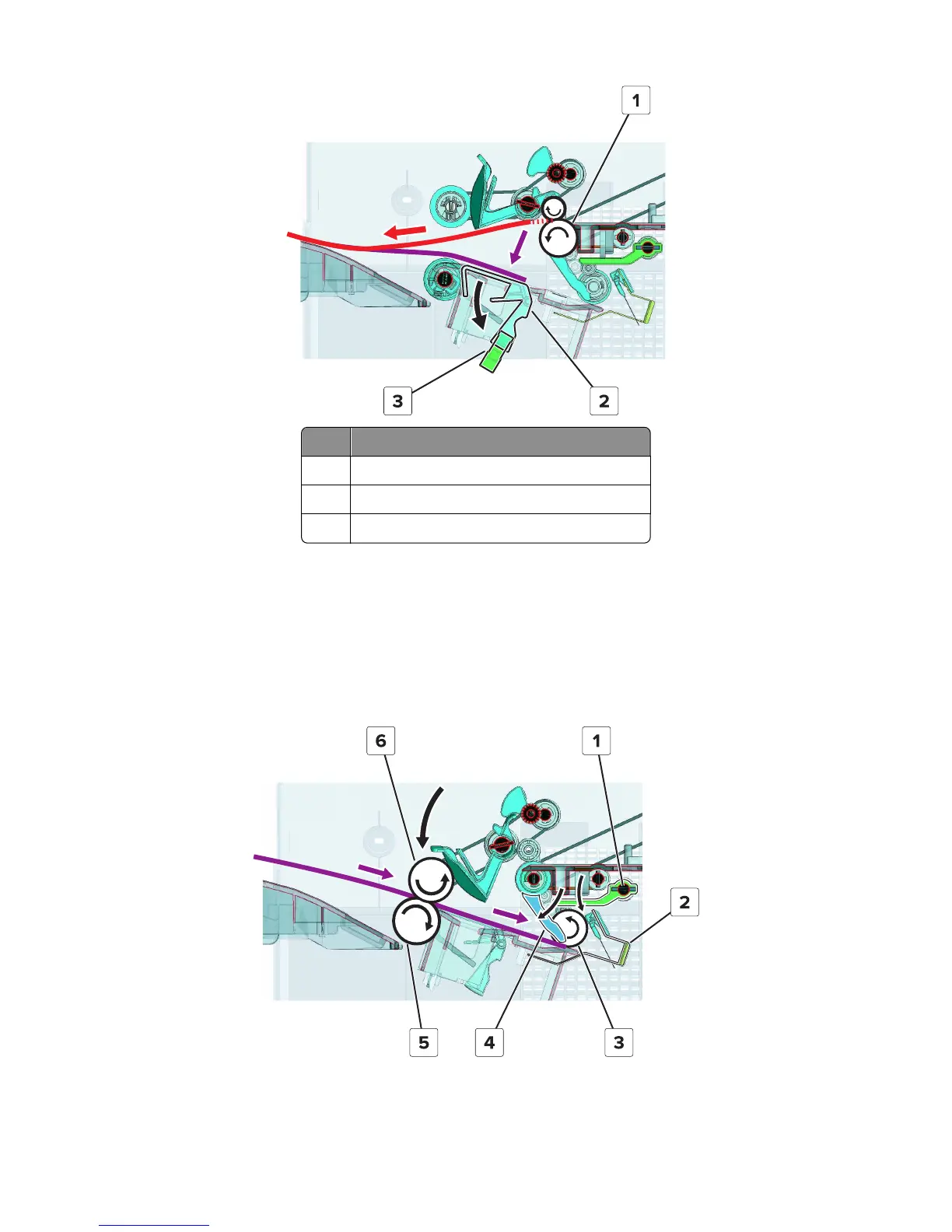

# Part
1 Compiler feed roller
2 Tamper paper present sensor actuator
3 Sensor (staple finisher tamper paper present)
Compiler section paper alignment
The motor (staple finisher upper exit) lowers the upper exit roller to come into contact with the paper. The motor
(staple finisher exit) drives the upper exit roller to feed the paper to the aligner roller. The upper exit roller returns to
the home position and stops rotating to release the paper.
The motor (staple finisher aligner) drives the aligner roller. The roller pushes the paper to the aligners to align the short
edge.
4021, 7421
Appendix C: Theory of operation
638
