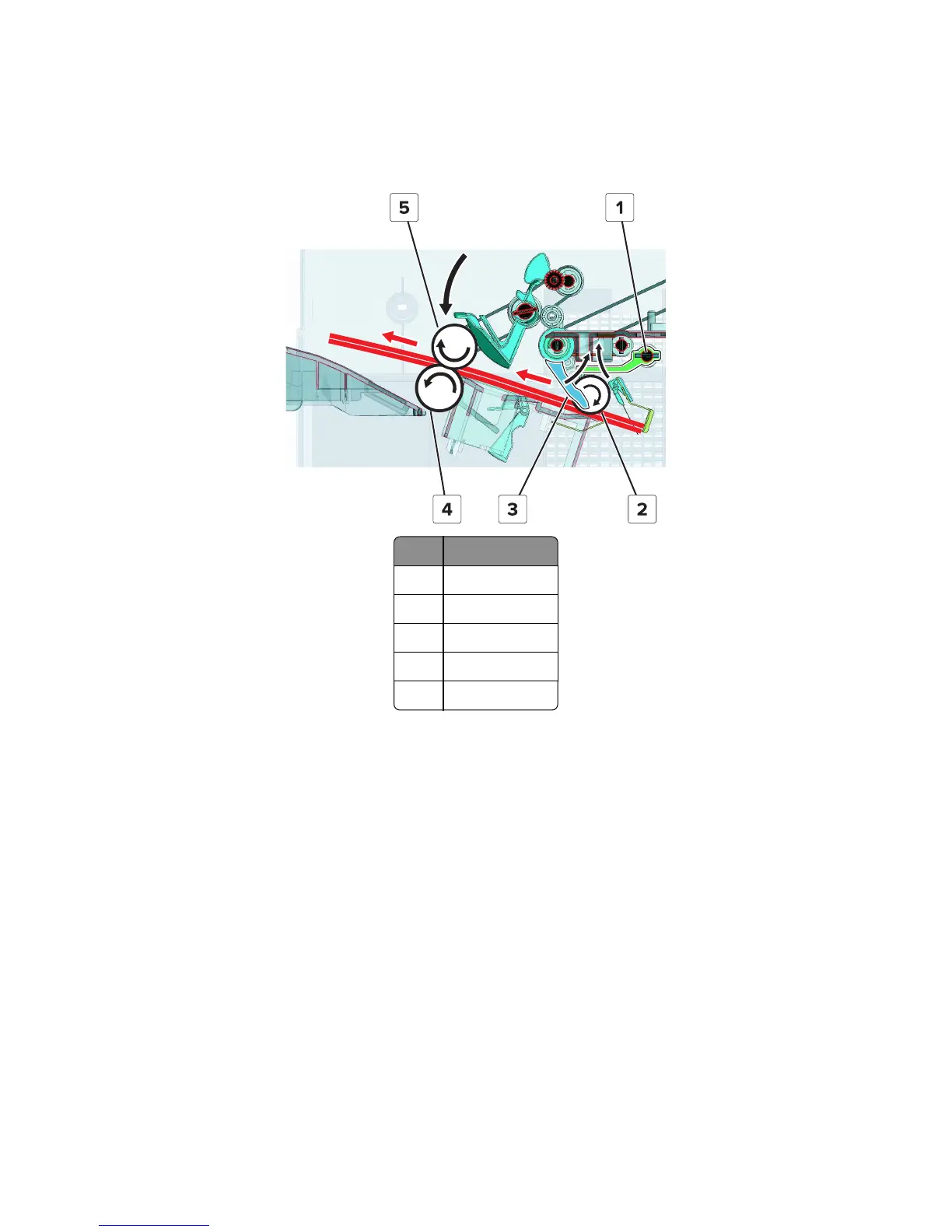

Compiler section exit
After all the sheets of paper are aligned, the upper exit roller moves down, and with the lower exit roller, holds the
stack in place. If it is a staple job, then the stack is stapled. The stack clamp moves up to release the edge of the stack.
The aligner roller and both exit rollers feed the stack to the bin.
# Part
1 Stack lever
2 Aligner roller
3 Stack clamp
4 Lower exit roller
5 Upper exit roller
After the trailing edge of the stack passes the exit rollers, the lower exit roller paddles push the edge to feed the stack
to the bin. The lower exit roller continues to rotate to return to the home position. The tamper paper present sensor
actuator returns to its original position, signaling that the stack is on the bin.
4021, 7421
Appendix C: Theory of operation
640
