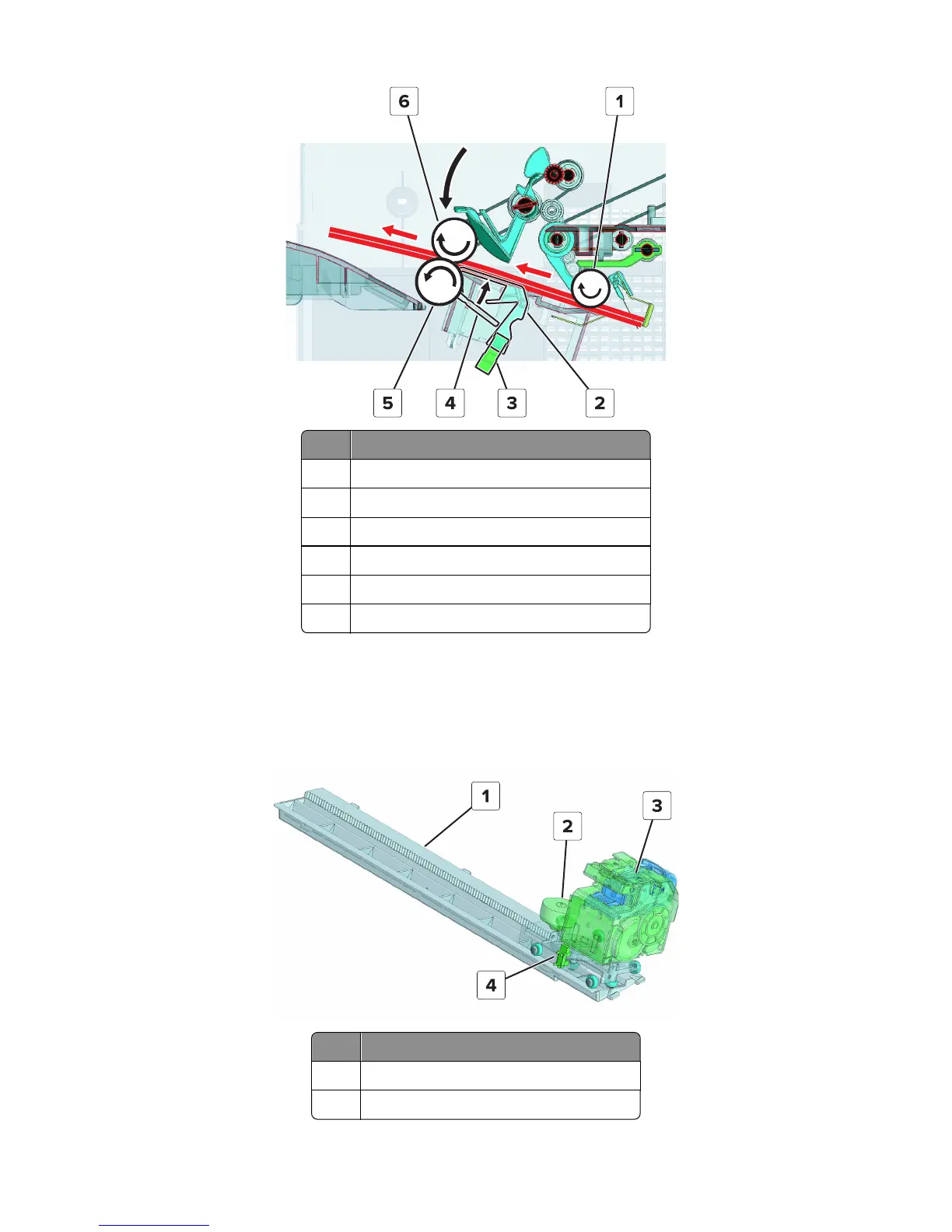

# Part
1 Aligner roller
2 Tamper paper present sensor actuator
3 Sensor (staple finisher tamper paper present)
4 Lower exit roller paddles
5 Lower exit roller
6 Upper exit roller
Staple unit operation
The motor (staple finisher staple unit carriage) controls the movement of the staple unit. The staple unit moves
depending on the number of staples required. The sensor (staple finisher staple unit home) detects the staple unit
home position at the front of the finisher.
# Part
1 Rail
2 Motor (staple finisher staple unit carriage)
4021, 7421
Appendix C: Theory of operation
641
