Shelf Descriptions 3
Power Distribution and Fuse Panel 3
The power distribution and fuse panel (Figure 3-19) is located at the top of each
FT-2000 OC-48 Lightwave System bay. It measures 2 inches high by 21.5 inches
wide by 12 inches deep. The power distribution and fuse panel has a removable
front cover that allows front access for shelf power connections. It accepts two
8-gauge power feeder stubs and distributes power to the shelves in the bay. The
power distribution and fuse panel is also equipped with six 10-amp fuses (two for
each shelf in the bay). Three fuses are for power feeder A and three fuses are for
power feeder B. For more information about power distribution, refer to Volume I,
Section 4, "Power."

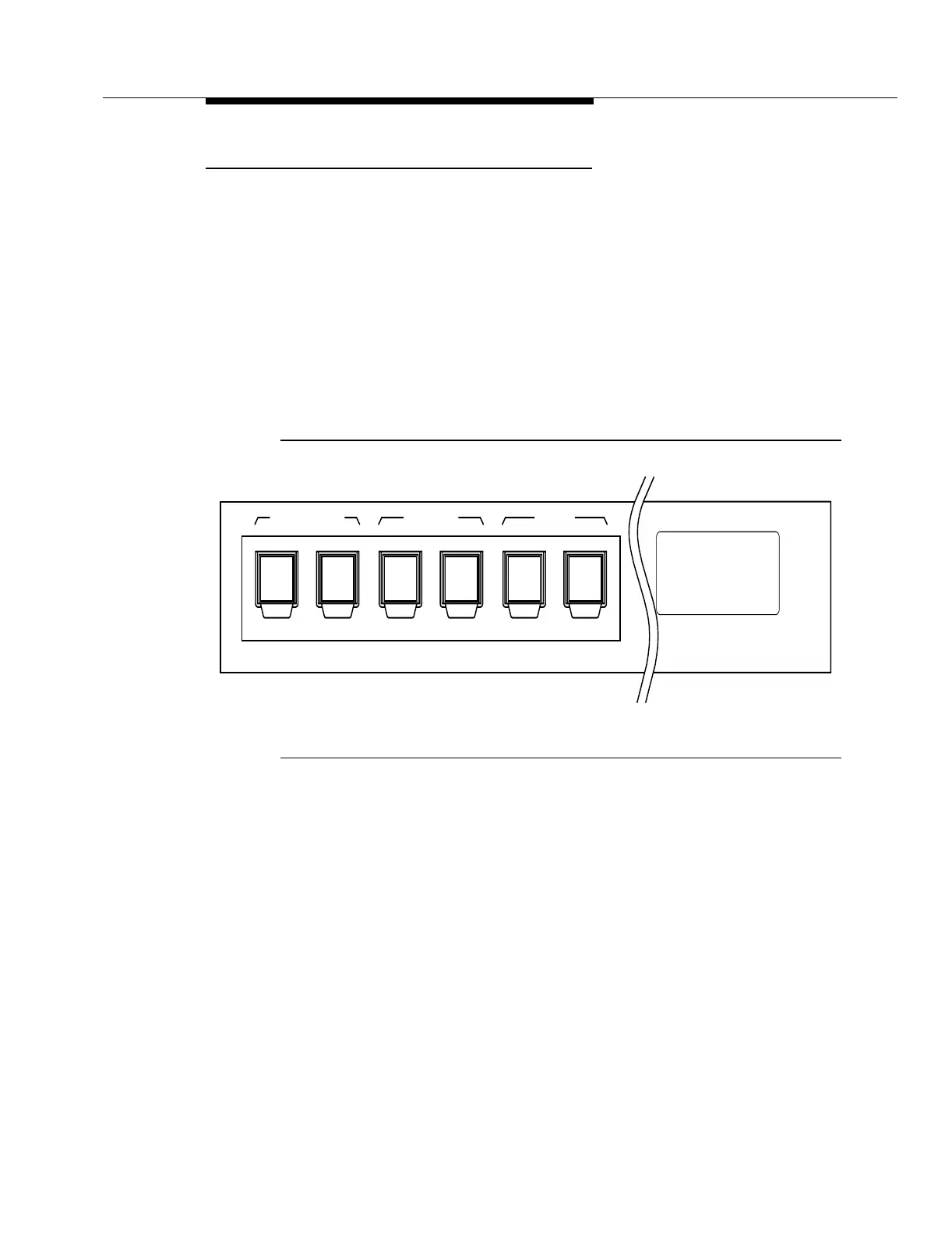

Figure 3-19. Power Distribution and Fuse Panel
FUSE
LIFT UP
10A,60V
-48A
FUSE
LIFT UP
10A,60V
BOTTOM SHELF/FAN
FUSE
LIFT UP
10A,60V
-48A
FUSE
LIFT UP
10A,60V
FUSE
LIFT UP
10A,60V
-48A
FUSE
LIFT UP
10A,60V
MIDDLE SHELF TOP SHELF
FT-2000
-48B -48B -48B
OC-48 Repeater Bay
OC-48 Lightwave Repeater Bay
J68974R SD5G252-01
