Administration and Provisioning
Issue 8.0 July 2002
8-61
Entering 1-Way-DRI STS-1 Cross-Connections in Dual Ring Interworking
Applications 8
Figure 8-19 shows a 1-way circuit that has been established on a 2-fiber
bidirectional ring that is part of a dual ring interworking application. 1-way and
1-way-DRI cross-connections are used at the primary and secondary nodes. The
CONFIGURATION-Enter-Crossconnection-STS1 input is used to enter
1-way and 1-way-DRI cross-connections. Refer to "Entering 1-Way and 2-Way
STS-1 Cross-Connections" in this section for examples showing bridge and 2-way
cross-connections.

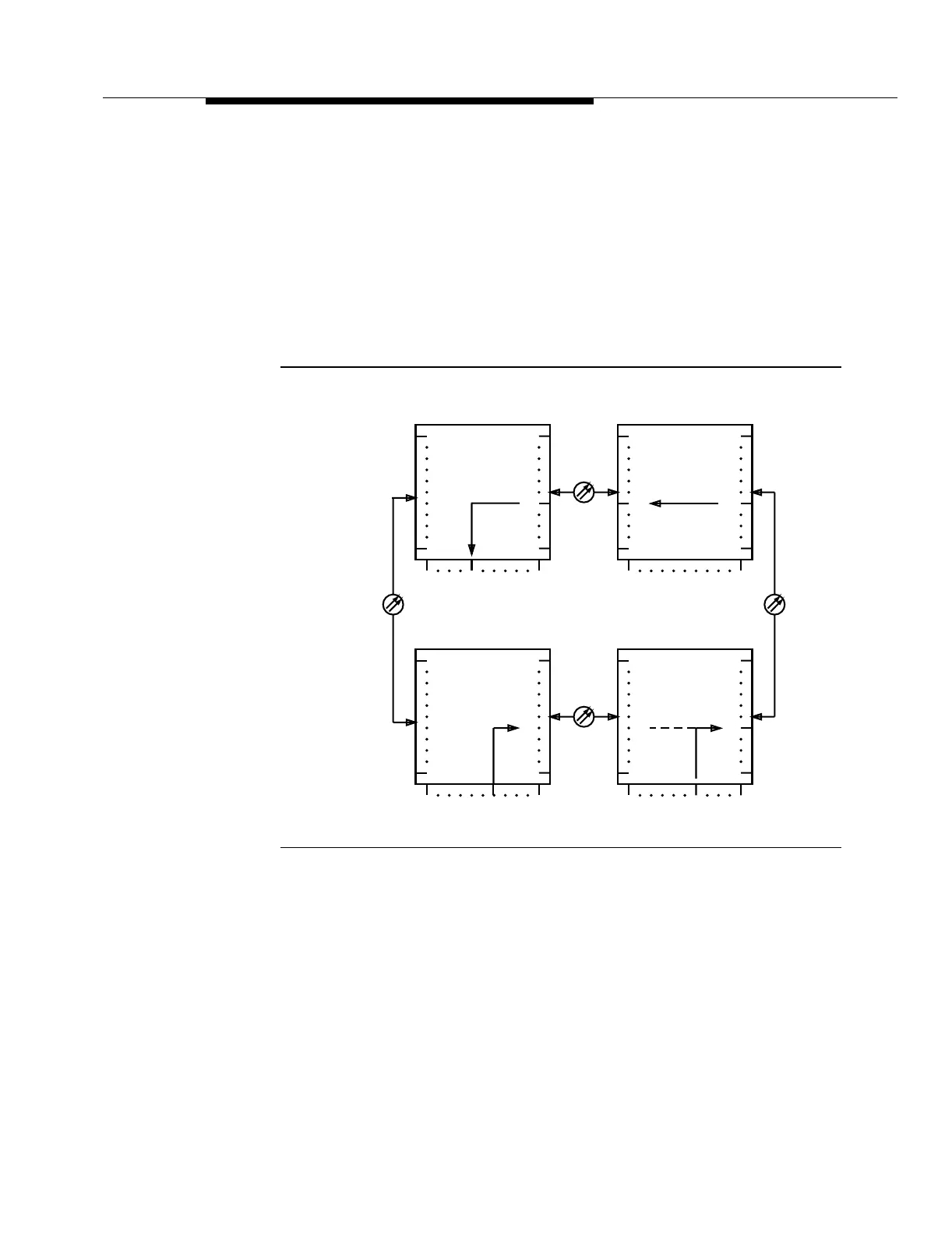

Figure 8-19. Example of STS-1 1-Way-DRI Cross-Connections in a
2-Fiber Bidirectional Ring
Node 0
1W 1E
1A 8B
16
1
OC-48
16
1
6-1
Node 1
1W 1E
1A 8B
16
1
16
1
6-16-1
Node 3
1E 1W
1A 8B
16
1
OC-48
16
1
Node 2
1E 1W
1A 8B
16
1
16
1
6-1
OC-48OC-48
(Primary)
(Secondary)
6-1
6-1
2B-1
4B-1 5A-1
To Next Page
