Lucent Technologies FT-2000 OC-48 User Manual

Operations Interfaces
Issue 8.0 July 2002
6-13
User Panel 6
The user panel is a factory-installed unit mounted next to the right-hand flange on
the Low Speed Shelf - System Controller, the Repeater Shelf - System Controller,
and the FT-2000 OC-48 Repeater Shelf. Figure 6-2 and Figure 6-3 shows the
user panel on the Low Speed Shelf - System Controller and the Repeater Shelf -
System Controller. Figure 6-4 shows the user panel on the FT-2000 OC-48
Repeater Shelf. The user panel provides −48 V power filters, an electrostatic
discharge jack, and local system-level information.

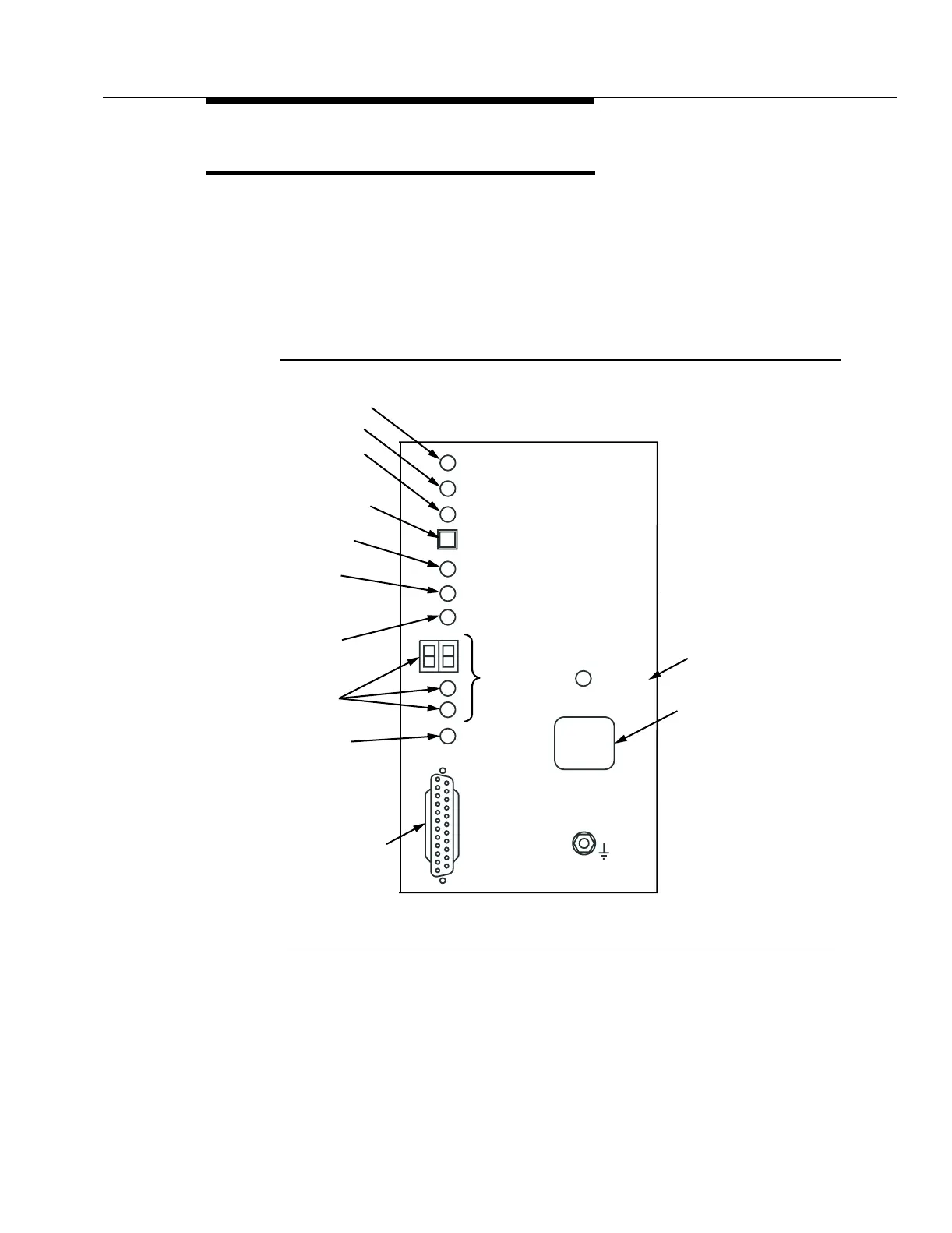

Figure 6-2. User Panel (Low Speed Shelf - System Controller and
Repeater Shelf - System Controller) — Cabled Version
(Before 06/97)
nc-ft2000-041
Critical Alarm
Major Alarm
Minor Alarm
Abnormal
Near-End
Activity
Far-End
Activity
Line
Locator
Use CIT
CIT Connector
CR
MJ
MN
ABN
NE ACTY
FE ACTY
LINE
LOCTR
E
W
USE CIT
ACO/
LOCTR
CIT
(DCE)
Line
Identification
Label
ESD WRIST
STRAP GROUND
Alarm Cutoff/
Line Locator
Pushbutton
PWR ON
-48 V Power On
