Lucent Technologies FT-2000 OC-48 User Manual

Circuit Pack Descriptions
7-18 Issue 8.0 July 2002
General Description of Operation 7
The LAA28 LNCTL (4 MEG) circuit pack provides overall administrative control of
up to two OC-48 high speed lines for the FT-2000 OC-48 Add/Drop-Rings
Terminal. The LNCTL circuit pack provides low and high speed protection
switching computations and other line specific computations. It interfaces with the
board controllers on each circuit pack associated with an OC-48 high speed line
and the System Controller (SYSCTL) circuit pack.
Detailed Description of Operation 7
Control Circuitry 7
Processor. 7Figure 7-6 provides an overall block diagram of the LNCTL circuit pack.
The LNCTL circuit pack is the middle level processor in the three-level control
hierarchy of the FT-2000 OC-48 Lightwave System.

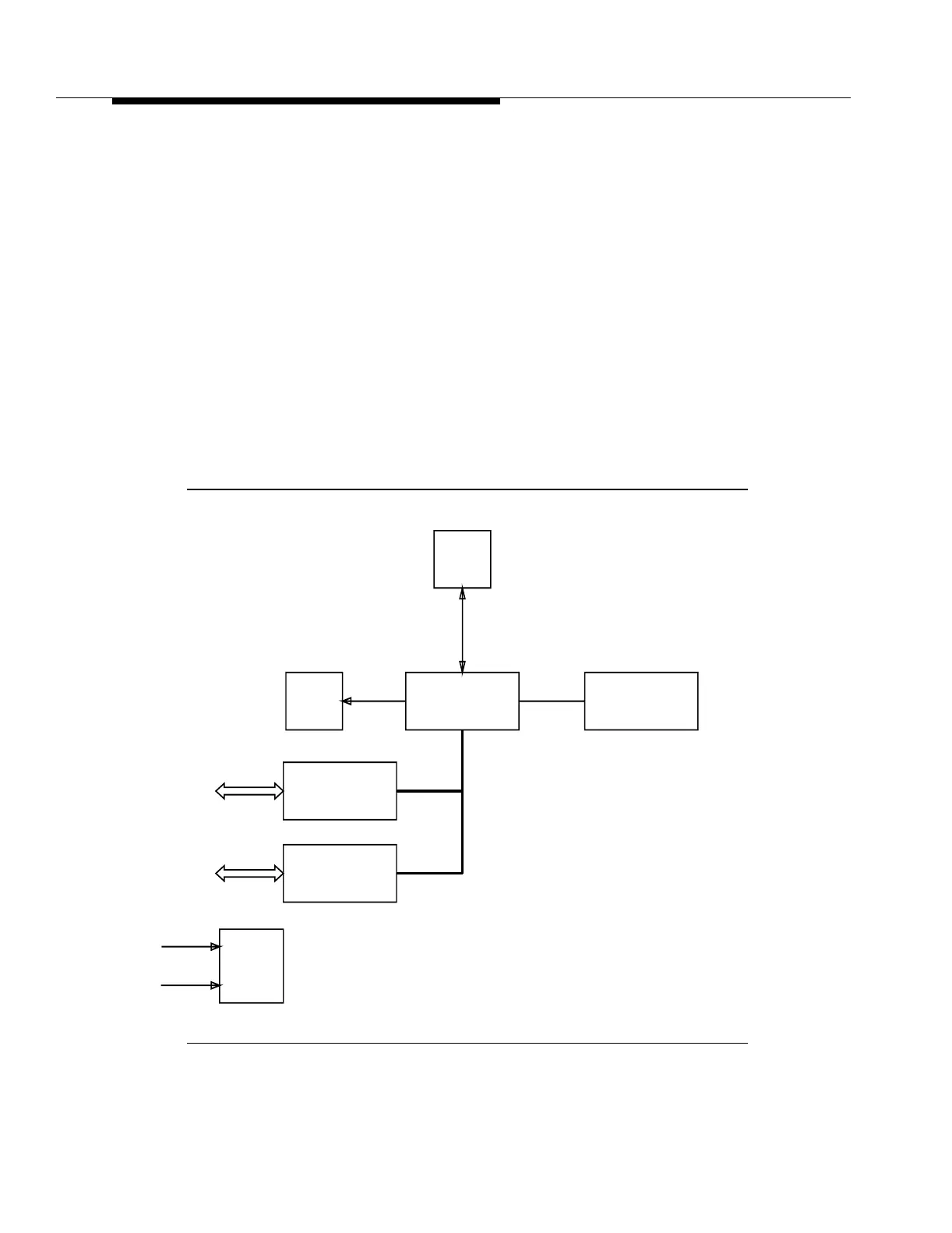

Figure 7-6. LNCTL Circuit Pack Block Diagram
Processor
Memory
Sanity
Timer
FAULT
LED
Power
Circuit
Board
Controller
LAN 0 and 1
Line
Controller
LAN
Board
Controller
LAN Interface
Line Controller
LAN Interface
-48 V (A)
-48 V (B)
