Lucent Technologies FT-2000 OC-48 User Manual

Administration and Provisioning
8-20 Issue 8.0 July 2002
1-Way-DRI Cross-Connections 8
A 1-way-DRI cross-connection is a 1-way add cross-connection and a
superimposed 1-way through cross-connection sharing the same destination. The
add cross-connection and through cross-connection share the same outgoing
service 155 Mb/s (STS-3) tributary of OC-48 high-speed line 1E or 1W. For
example, Figure 8-5 shows incoming service STS-3 tributary 3 of OC-48
high-speed line 1W cross-connected to outgoing service STS-3 tributary 3 of
OC-48 high-speed line 1E. Service low-speed interface slot 6B is also
cross-connected to outgoing service STS-3 tributary 3 of OC-48 high-speed line
1E.
A single input enters an active add cross-connection and a standby through
cross-connection.

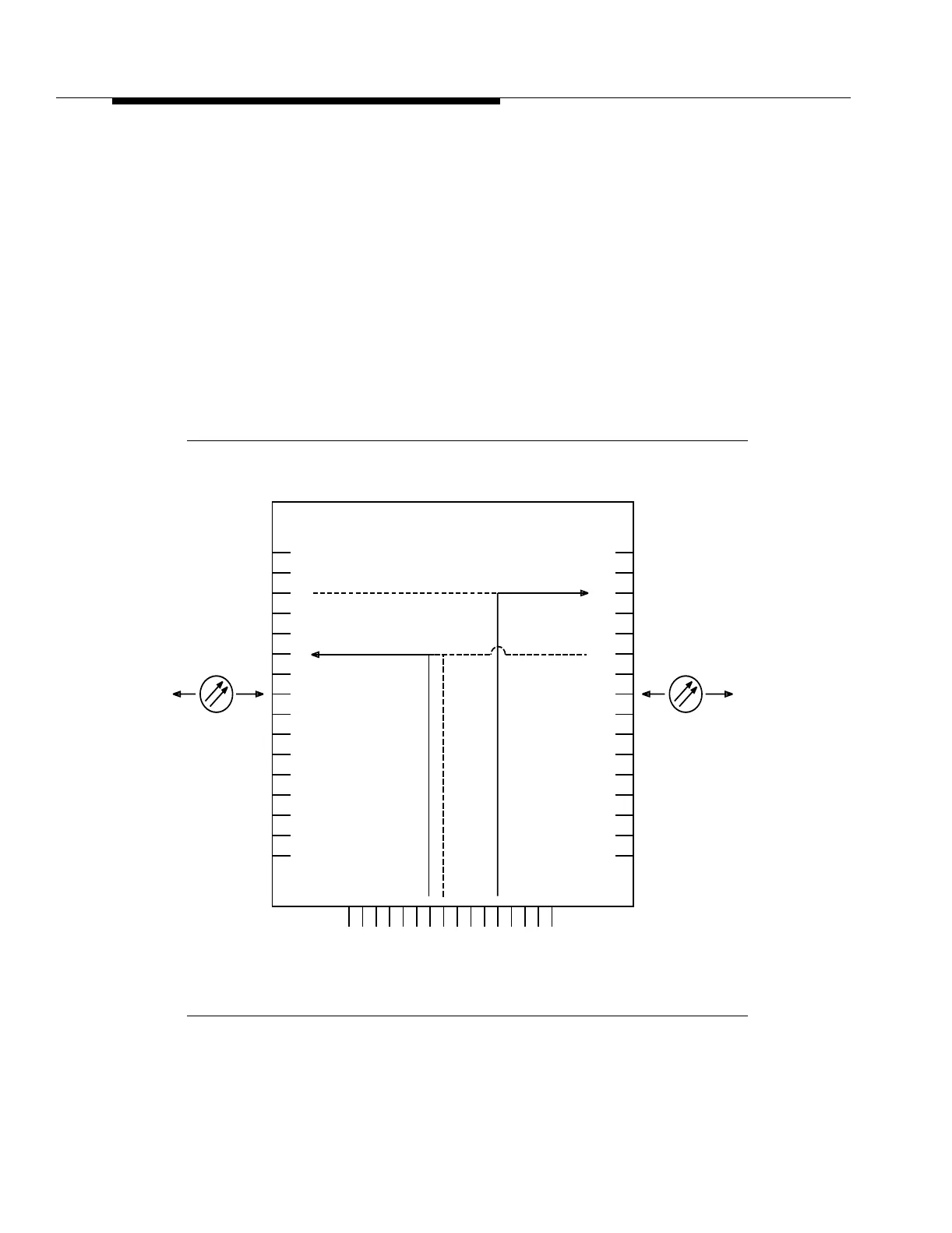

Figure 8-5. STS-3 1-Way-DRI Cross-Connections at an FT-2000
OC-48 Add/Drop-Rings Terminal
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
FT-2000 OC-48 Add/Drop-Rings Terminal
STS-3 Tributaries
1A 2B 4B 8B
OC-48
1E
Low Speed Interface Slots
OC-48
1W
6B
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
4A
1-Way-DRI
1-Way-DRI
