To reduce the possibility of ESD damage, shelves are equipped with grounding jacks to
enable personnel to ground themselves using wrist straps (Figure 1) while handling
circuit packs or working on a shelf. The jacks for connection of wrist straps are located
at the lower right-hand corner of each user panel and filter panel and at the rear of the
bay. These jacks are labeled. The wrist straps should be checked periodically with a
wrist strap tester to ensure that they are working properly.

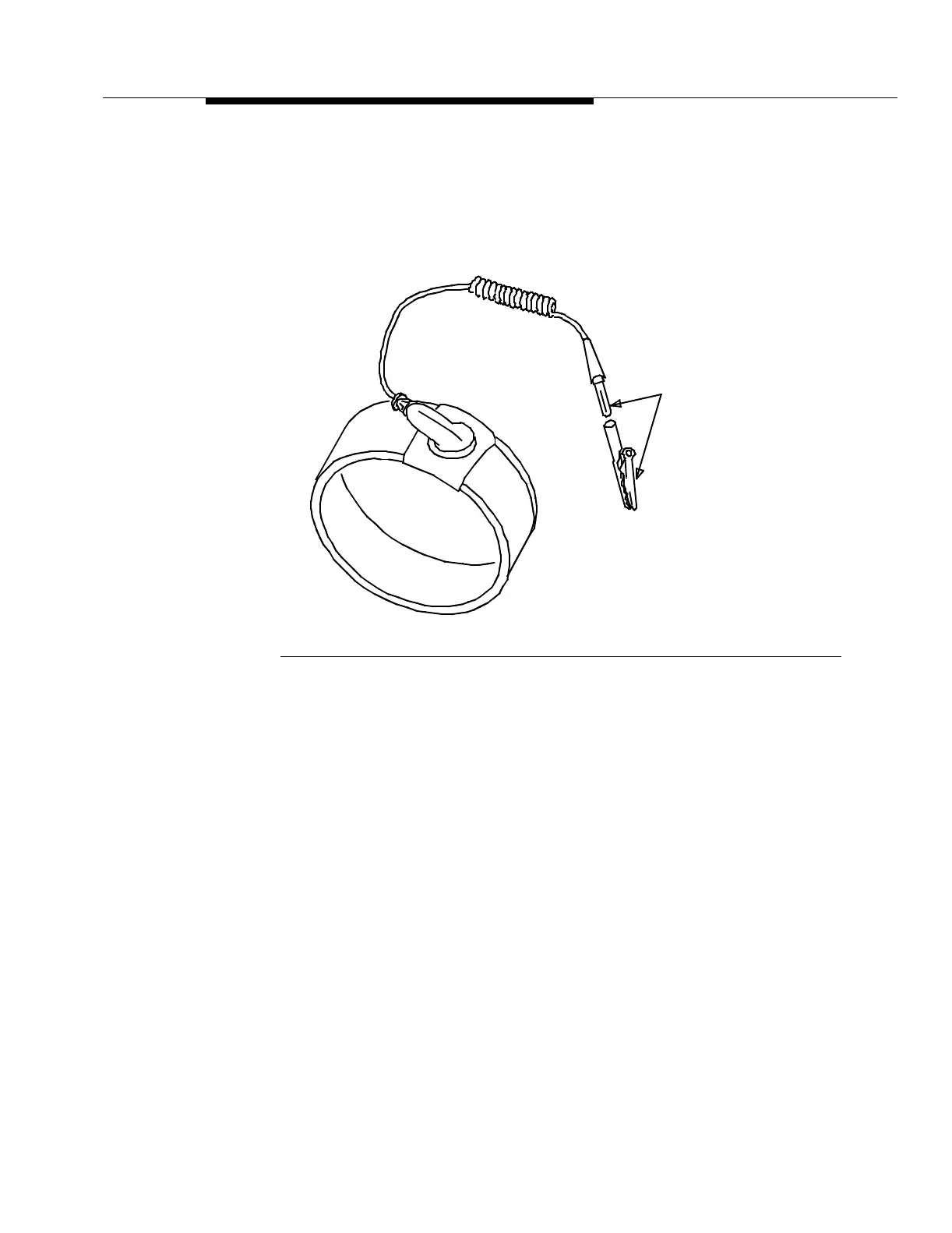

Figure 0-1. Static Control Wrist Strap
IMPORTANT SAFETY INSTRUCTIONS
READ AND UNDERSTAND ALL INSTRUCTIONS.
When using this telecommunication equipment, basic safety precautions should
always be followed to reduce the risk of fire, electric shock, and
injury to persons, including the following:
■ Follow all warnings and instructions marked on the product.
■ Slots and openings in this product and the back or bottom are provided for
ventilation. To protect it from overheating, these openings must not be
blocked or covered.
■ Opening or removing rear covers or sheet-metal parts may present
exposure to high current or electrical energy levels, or to other risks. Refer
all servicing in those areas to qualified service personnel.
