Setting up Compax3
192-121102 N04 June 2008 139
Procedure
In this chapter you can read about:
Parameters for manual movement/jogging mode and test movement. ........................... 139
Limit valve set value ........................................................................................................ 140
Move drive controlledly.................................................................................................... 140
Check sense of direction ................................................................................................. 141
Set valve offset ................................................................................................................ 141
Check connection assignment of the pressure sensors .................................................. 141
Check input offset or zero of the pressure sensors ......................................................... 141
Direction dependent gain................................................................................................. 142
Optimization of position controller.................................................................................... 142
Optimization of pressure/Force Controller ....................................................................... 145
A valid configuration is a prerequisite for this operation and for
force/pressure control, operation with one or 2 pressure sensors per cylinder
is assumed.
Parameters for manual movement/jogging mode and test movement.
In the optimization window ⇒ setup field ⇒ parameter.

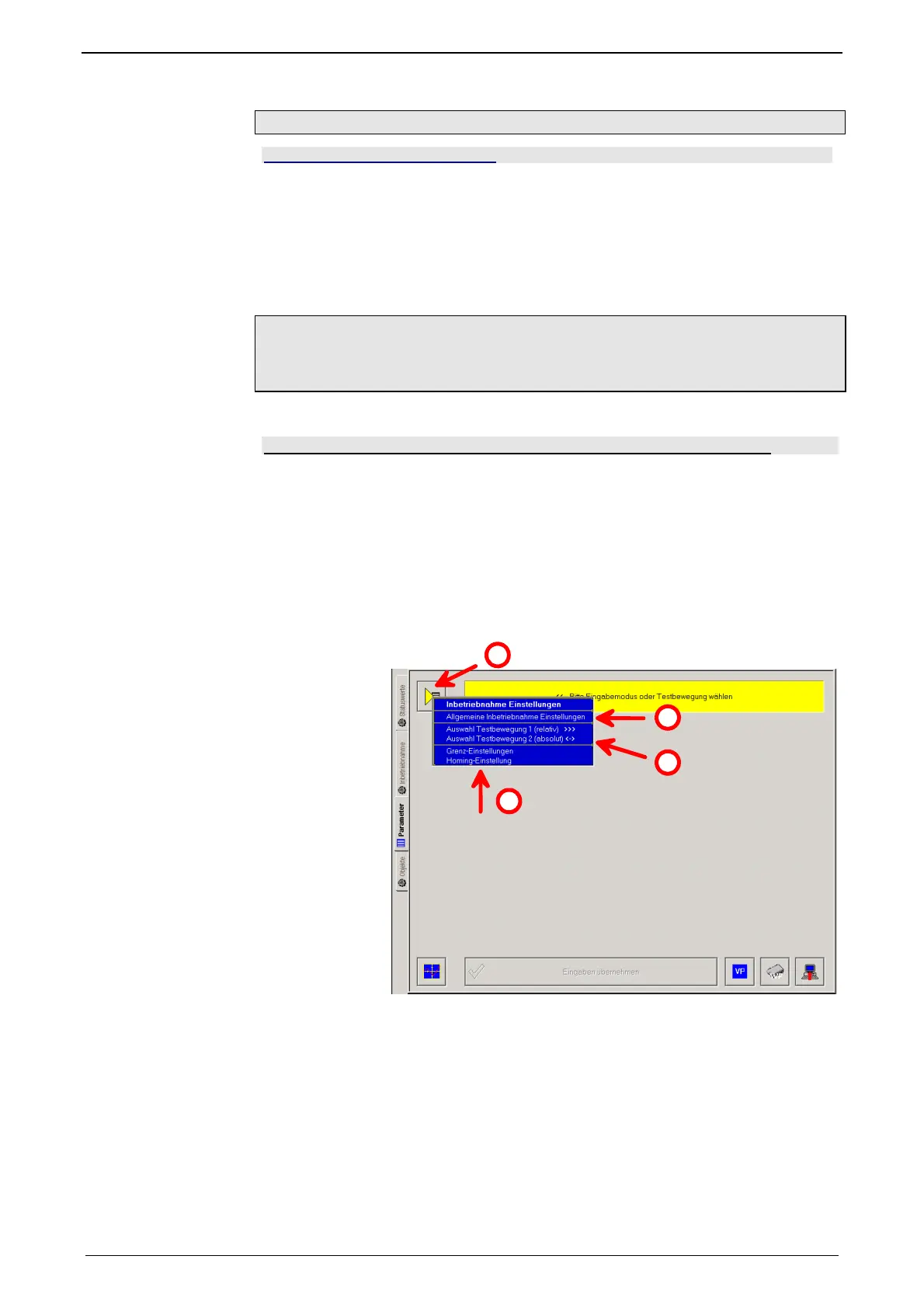

 Activate dropdown list via button on the upper left (1)
 The parameters for manual movement/jogging mode can be found under general
setup settings (2).
 Select test movement absolute (3) for linear drives (cylinders)
 If needs be, change the limit and homing settings from the configuration for the
setup (4).
 Terminate with "accept entry".
