Parker Compax3 Fluid T40

Setting up Compax3 C3F_T40
50 192-121102 N04 June 2008

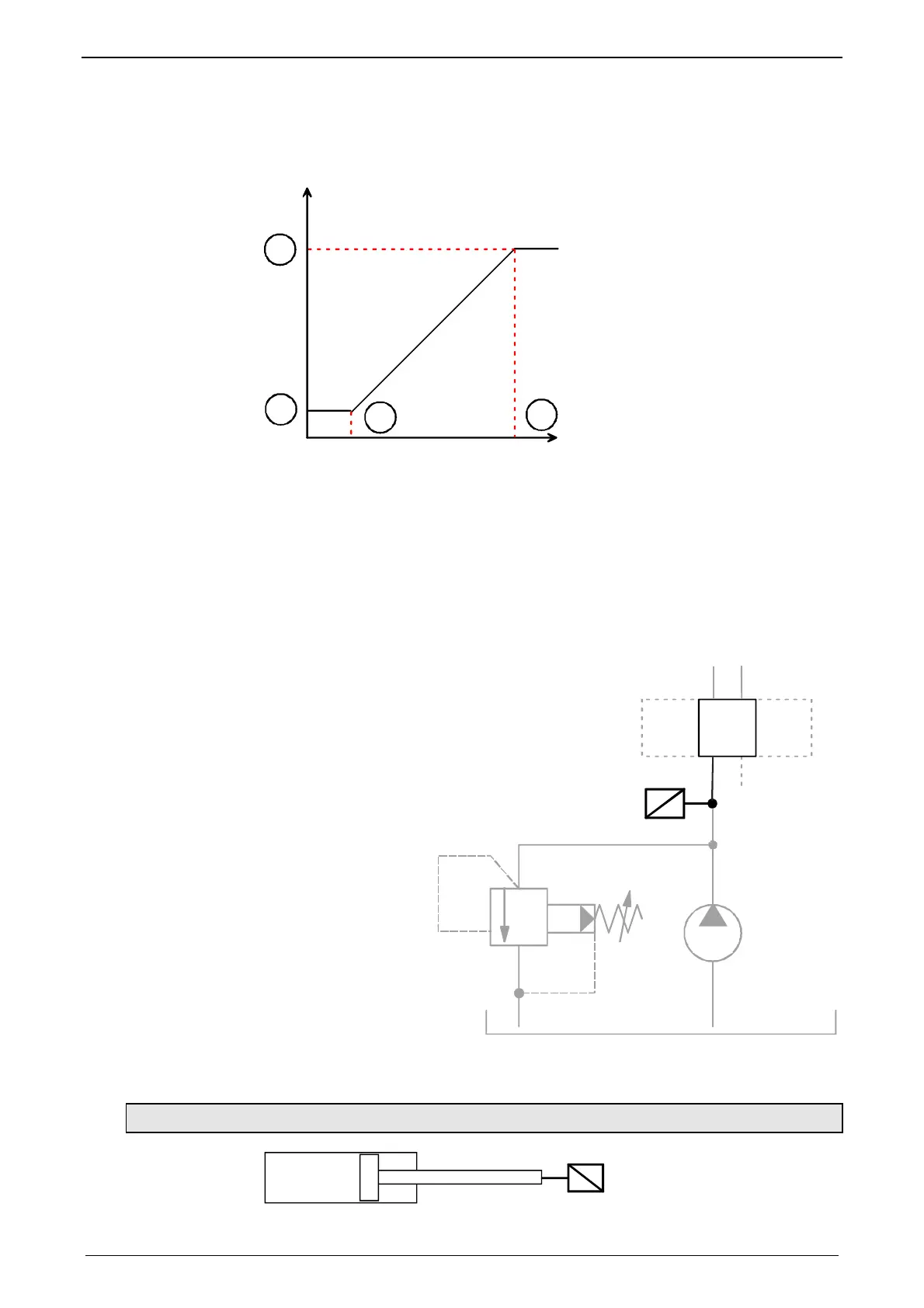

 Interface:
Select the interface where the sensor is connected. Only the freely available
inputs are displayed.
p
2
1
3
4
I, U
 (1) pressure min.: Enter the minimum pressure.
 (2) pressure max.: Enter the maximum pressure.
 (3) Sensor signal min.: Enter the minimum singal of the pressure sensor.
 (4) Sensor signal max.: Enter the maximum singal of the pressure sensor.
 Constant pressure: If the pressure is constant, a pressure sensor is not
necessary. You can then specify a constant pressure value instead.
Example: Parameterization interface supply pressure p0
AB
P T
I
p
4.1.6.2 Force sensor drive 1
I
F
