Parker Compax3 Fluid T40

Parker EME
Compax3F device description
192-121102 N04 June 2008 27

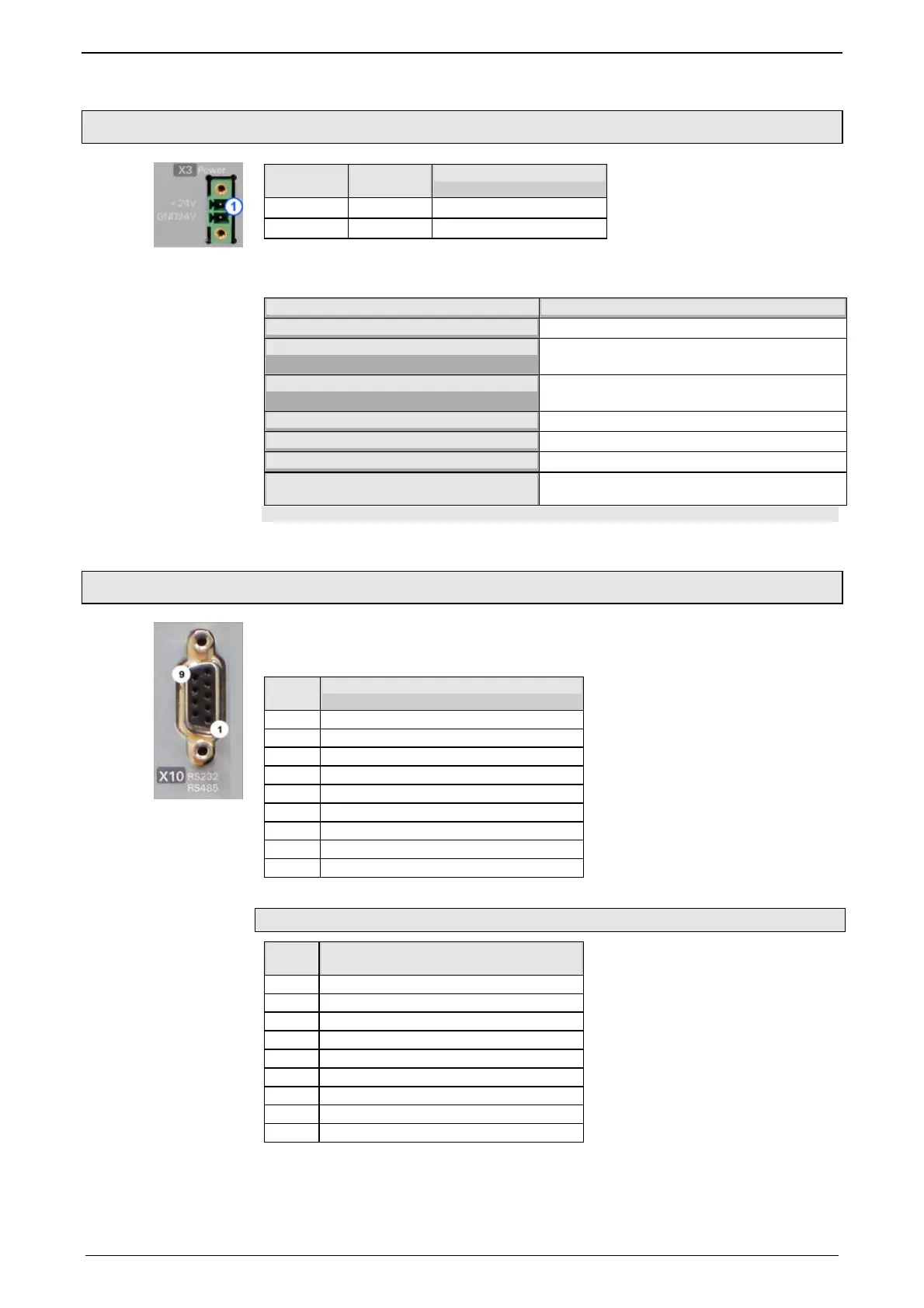

3.2.6. Voltage supply (plug X3)
Connector
X3 Pin
Descriptio
n
Combicon 5mm
1 +24 V 24 VDC (power supply)
2 Gnd 24 V GND
Voltage supply 24VDC
Controller type Compax3 F001 D2
Voltage range
21 - 27VDC
Mains module
with switch-on current limitation, due to
capacitive load
Fuse
MTP miniature circuit breaker or "delayed action
fuse", due to capacitive load
Current drain of the device
0.8A (max. 1.5A)
Total current drain
0.8A + total load of the digital outputs
Ripple
<1Vss
Requirement according to safe extra
low voltage (SELV)
yes
3.2.7. RS232 / RS485 interface (plug X10)
Interface selectable by contact functions assignment of X10/1:
X10/1=0V RS232
X10/1=5V RS485
PIN
X10
RS232 (Sub D)
1 (Enable RS232) 0V
2 RxD
3 TxD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 +5V
RS485 2-wire
PIN
X10
RS485 two wire (Sub D)
Pin 1 and 9 jumpered externally
1 Enable RS485 (+5V)
2 res.
3 TxD_RxD/
4 res.
5 GND
6 res.
7 TxD_RxD
8 res.
9 +5V
