Setting up Compax3 C3F_T40
52 192-121102 N04 June 2008
4.1.7.1 Selection and configuration of the valves
The selection of the respective valves is made from the hdydraulics database. You
can choose between Parker valves or customized valves that were created with the
aid of the C3HydraulicsManager from the database.
The valves in the valve database are structured as follows:
Parker Valves
Porportional direction control valves
• ...
• High dynamics, high repeatability
• VCD® Dynamics, highest precision
• D*FP
• …
• ...
Pressure valves
Pressure control valves
• PE
• …
Pressure reducing valves
• RE
• ...
Flow-control valves
• ...
• TDL
• ...
Other valves
Input values:

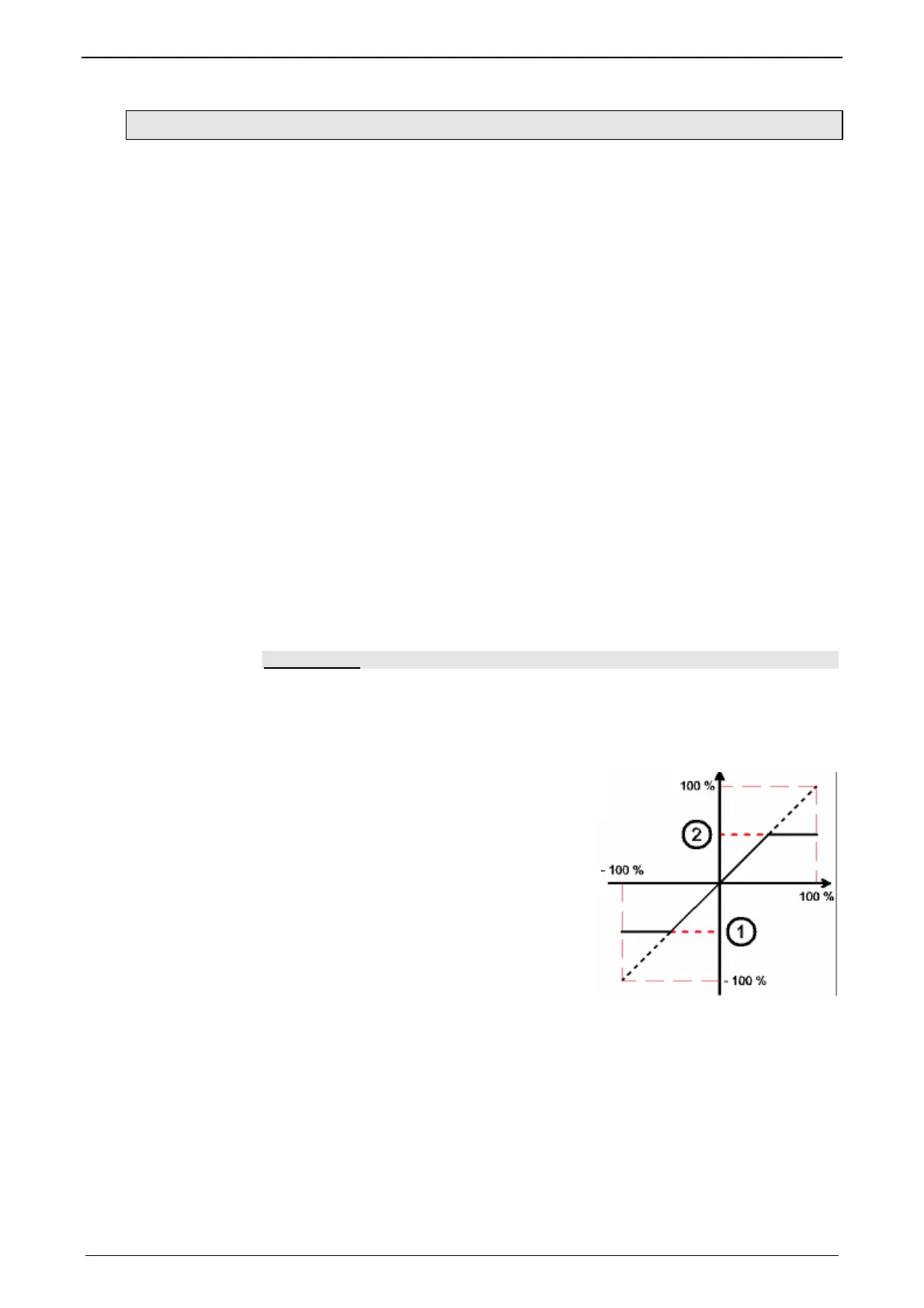

Control variable limitation [min.][max.]:
Via these parameters, the control signal of the valve is limited. This limitation is
above all sensible during commissioning in order to avoid an uncontrolled
movement of the axis if the parameterization is not yet optimal.
(1) min. control variable limitation
(2) max. control variable limitation
Drive:
Hereby you can define the assignment of the selected valve to a specific drive.
This dialog comes only up, if 2 drives were selected.
