Motion control C3F_T40
220 192-121102 N04 June 2008
The dashed sections are now calculated by the CamDesigner.
The transitions from dwell to motion are always calculated via a polynomial 5th
order (in the BASIC version).
For the transitions dwell-to-dwell, the preselected motion law is used. This can also
be changed retrospectively in the header data (menu: edit: Header data). The
header data mask also states the cycle time (cycles per minute).

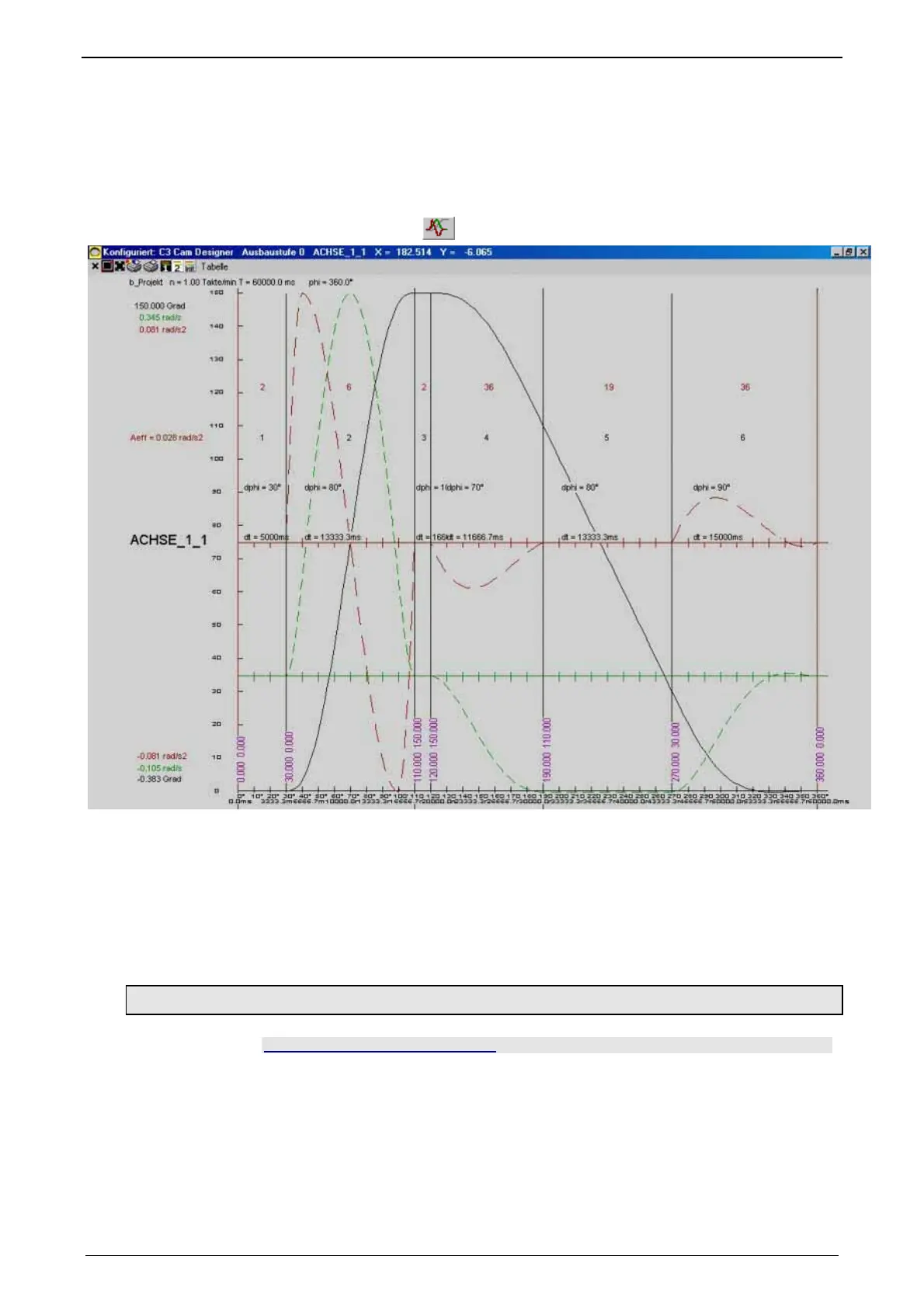

The result is displayed
via the ”show motion diagram” icon:
Displayed are the sequences for position, speed and acceleration, in physical units
and with respect to the cycle time entered.
This window can be left via the X Icon.
If necessary, you can make modifications (motion laws, cycle time, etc.)
After the optimization the curve progression you can leave the CamDesigner via
”file”: "Exit"
The following dialog queries if the Cam Download is to take place immediately. The
download can also be executed later via "Download": "Cam - curve data".
5.10.4.2 Cam functions of the Compax3 ServoManager / motion laws
In this chapter you can read about:
Description of the cam wizard.......................................................................................... 221
Motion laws:..................................................................................................................... 223
