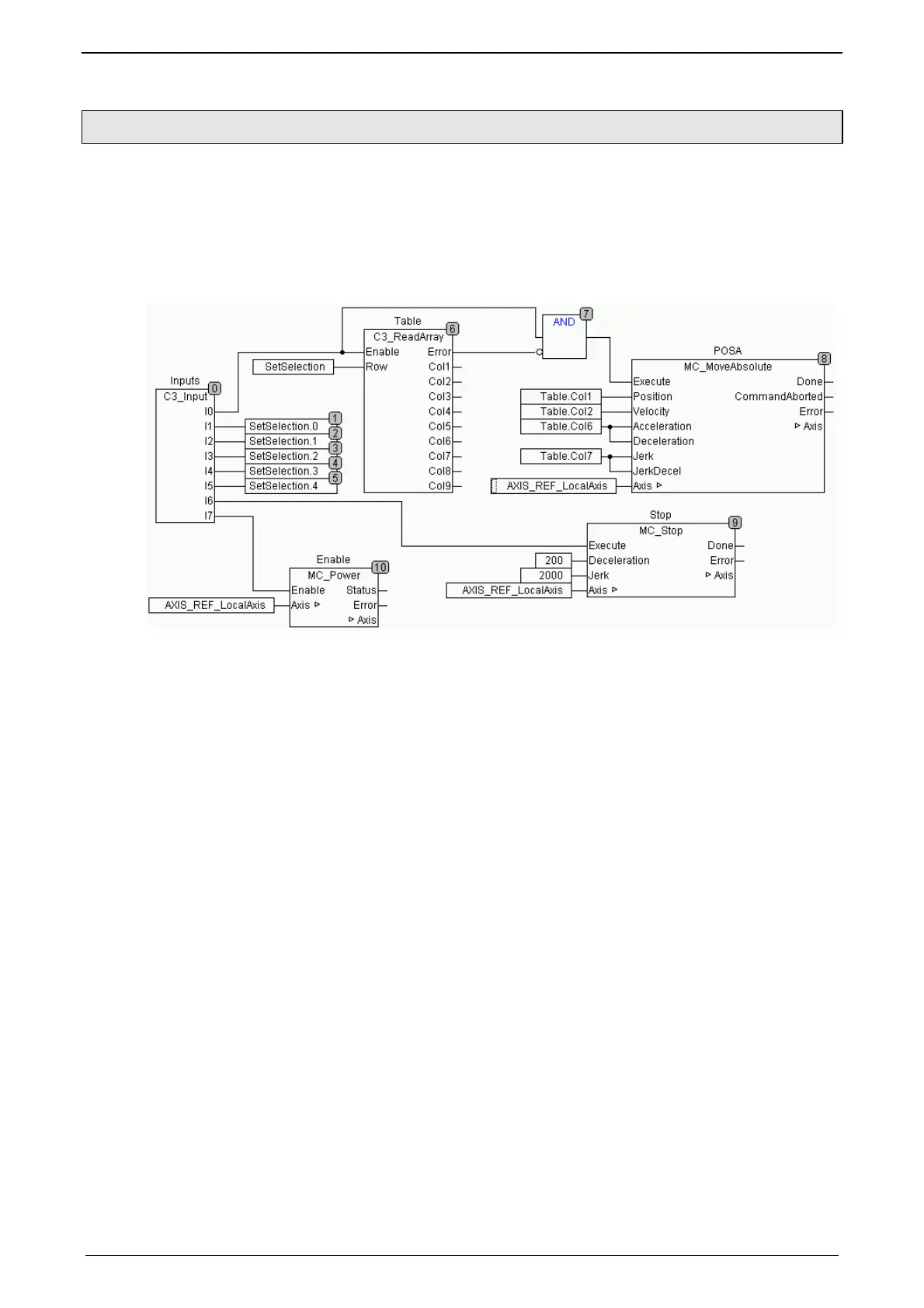

5.15.4. Example in CFC: Positioning with set selection
Input I7 enables the power output stage
The position, speed and ramps can be stored in the array (table) (for example
input with the Compax3 ServoManager)
The desired set can be selected with inputs I1 through I5 (binary coded)
Input I0 starts the positioning (absolute positioning)
Positioning that is in progress can be stopped with Input I6
