Parker Compax3 Fluid T40

Compax3F device description C3F_T40
28 192-121102 N04 June 2008
RS485 4-wire
PIN
X10
RS485 four wire (Sub D)
Pin 1 and 9 externally jumpered
1 Enable RS485 (+5V)
2 RxD
3 TxD/
4 res.
5 GND
6 res.
7 TxD
8 RxD/
9 +5V
USB - RS232/RS485 converter
The following USB - RS232 converters were tested:
 ATEN UC 232A
 USB GMUS-03 (available under several company names)
 USB / RS485: Moxa Uport 1130 http://www.moxa.com/product/UPort_1130.htm
 Ethernet/RS232/RS485: NetCom 113 http://www.vscom.de/666.htm

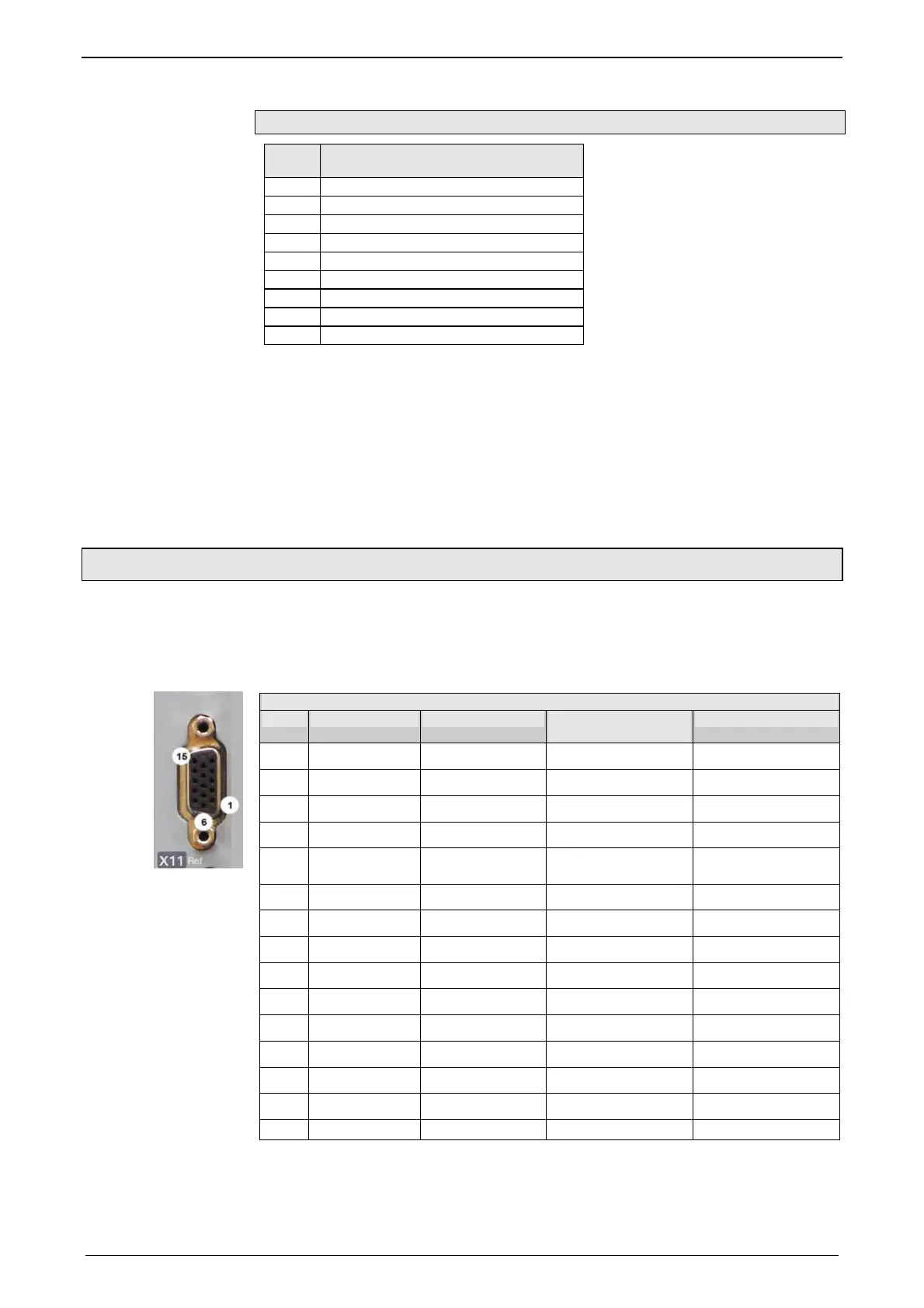

3.2.8. Analog / Encoder (plug X11)
The following position sensors can be connected via X11:
 RS422 Encoder (max. 5MHz, or Step/Direction)
 SSI (RS422)
 Start / Stop (Time of Flight, RS422)
2. Feedback system / X11 High Density /Sub D
PIN D-A Monitor RS422 Encoder Start / Stop
(Time of Flight)
SSI
1 +24V max. 100mA +24V max. 100mA
2
3 Aout1
4 Aout0
5
+5V (for encoder)
max. 150mA
6 A- INIT- Clock-
7 A+ INIT+ Clock+
8 B+ STSP+
9
10
11
12 B- STSP-
13 N- DATA-
14 N+ DATA+
15 GND GND GND GND
Max. start/stop time is 1.6ms (over 4.15m).
