Parker Compax3 Fluid T40

Communication
C3F_T40
350 192-121102 N04 June 2008
6.3 Remote diagnosis via Modem
In this chapter you can read about:
Structure...........................................................................................................................350
Configuration of local modem 1........................................................................................351
Configuration of remote modem 2....................................................................................352
Recommendations for preparing the modem operation ...................................................353
As the transmission via modem may be very slow and interference-prone, the
operation of the Compax3 ServoManager via modem connection is on your
own risk!
The function setup mode as well as the ROLL mode of the oscilloscope are
not available for remote diagnosis!
It is not recommended to use the logic analyzer in the Compax3 IEC61131-3
debugger due to the limited bandwidth.
Requirements:
For modem operation, a direct and stable telephone connection is required.
Operation via a company-internal telephone system is not recommended.

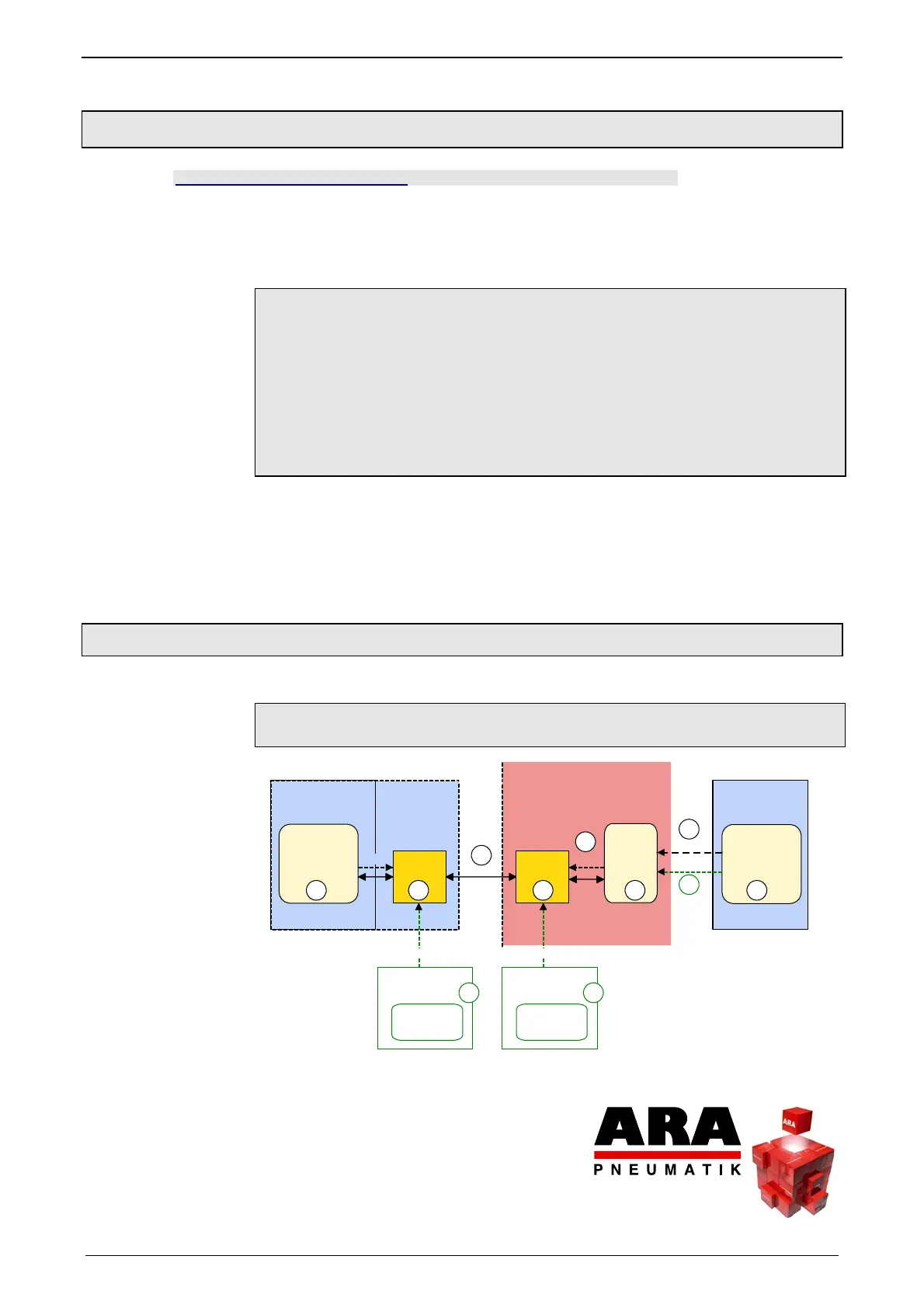

6.3.1. Structure
Layout and configuration of a modem connection ServoManager -
Compax3:
PC
Compax3
ServoManager
Modem 1
konfig
Modem 2
Compax3
X10
SSK31
Phone
konfig
PC
Compax3
ServoManager
konfig
machine
konfig
PC
Hyper-
terminal
Release < R4-5
(115200Baud)
ATE0 cr
ATQ1 cr
1 4
7
2
5
8
3
6
9
Release
> R5-0
Release
> R4-5
< R5-0
konfig
11
konfig
Compax3.ini
Release < R5-0
10
Caution!
