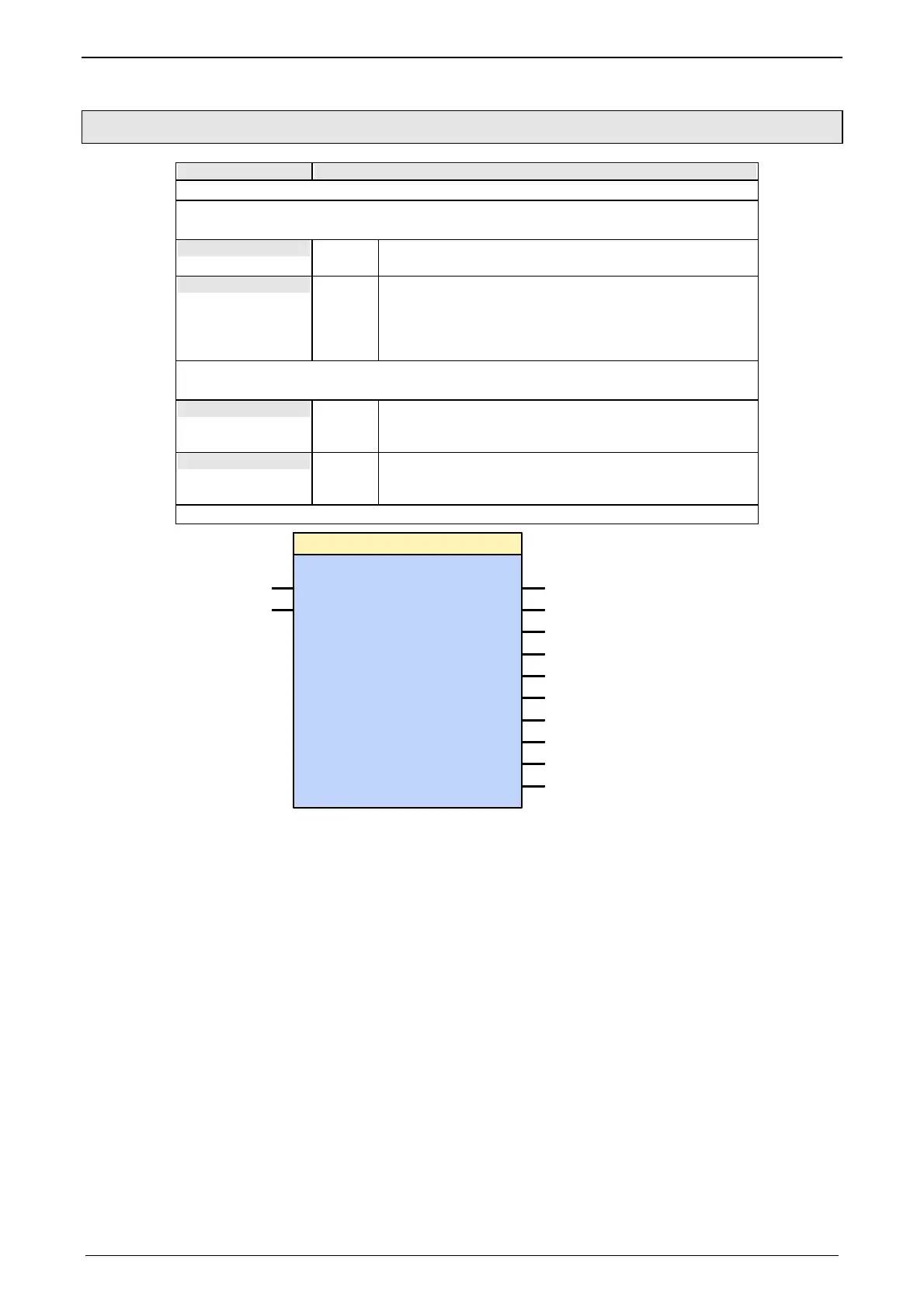

5.4.2. Read access to the (C3_ReadArray) array
FB name C3_ReadArray
This module is used for simplified read access to the array (recipe table).
VAR_INPUT
Enable
BOOL
The desired rows can be read with the Enable input (after
selecting "Row").
Row
INT
The desired row in the table must be created at the end of
the Row module input.
this input works with object 1900.1; please take
this into consideration, if you directly access the object
1900.1 in addition.
VAR_OUTPUT
Error
BOOL
Error as an output indicates that an error was encountered
while reading the array
(a row that does not exist selected on the Row input).
Col1 – Col9
REAL
INT
DINT
The individual columns of the array can be accessed
through outputs Col1 through Col9.
Notes: Rows will be read cyclically as long as Enable = TRUE.
C3_ReadArray
Row : INT
Enable : BOOL
Col5 : INT
Col6 : DINT
Col7 : DINT
Col1 : REAL
Col2 : REAL
Col3 : INT
Error : BOOL
Col4 : INT
Col8 : DINT
Col9 : DINT

Parker Compax3 Fluid T40 Specifications

General

Series	Compax3
Power Supply Voltage	24 VDC
Output Current	40A
Protection Class	IP20
Communication	CANopen, RS232
Operating Temperature	0°C to +45°C
Relative Humidity	5 to 95 %, non-condensing
Storage Temperature	-25 to +70 °C
