Parker Compax3 Fluid T40

Parker EME
Compax3F device description
192-121102 N04 June 2008 29

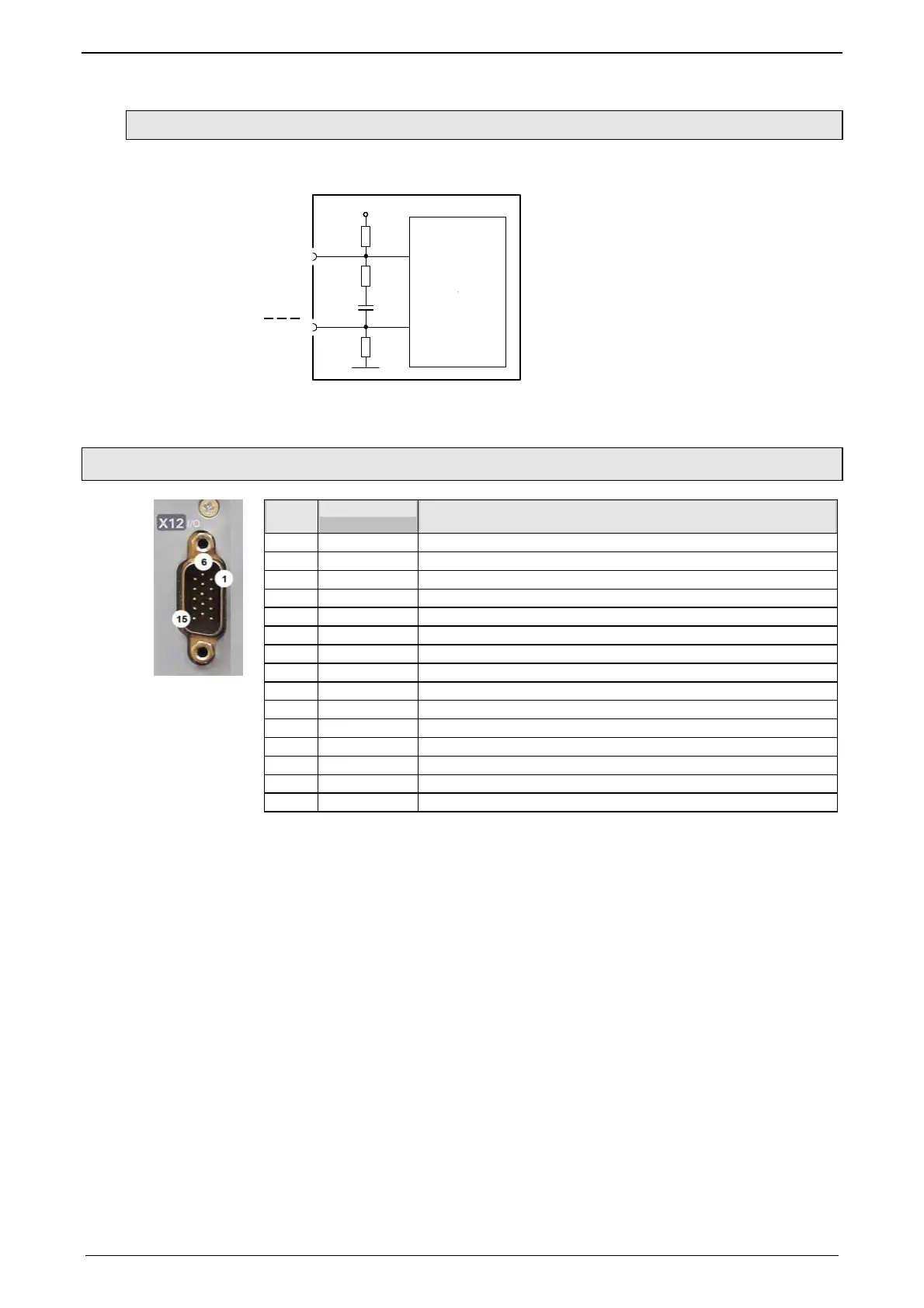

3.2.8.1 Connections of the encoder interface
10nF
+5V
121
Ω
A
1K
Ω
1
K
Ω
GND
A
BN
RS422
Transceiver
BN
Compax3
The input connection is available in triple (for A & /A, B & /B, N & /N)
3.2.9. Digital inputs/outputs (plug X12)
X12
Pin
Input/output I/O /X12
High density/Sub D
1 Output +24VDC output (max. 340mA)
2 O0 Output 0 (max. 100mA)
3 O1 Output 1 (max. 100mA)
4 O2 Output 2 (max. 100mA)
5 O3 Output 3 (max. 100mA)
6 I0 Input 0
7 I1 Input 1
8 I2 Input 2
9 I3 Input 3
10 I4 Input 4
11 E 24V input for the digital outputs Pins 2 to 5
12 I5 Input 5
13 I6 Input 6
14 I7 Input 7
15 Output Gnd 24 V
All inputs and outputs have 24V level.
The exact assignment depends on the the device type!
You will find the description of the device-specific assignment in the online help
which can be opened from the Compax3 – ServoManager.
Maximum capacitive loading of the outputs: 50nF (max. 4 Compax3 inputs).
