Parker Compax3 Fluid T40 User Manual

Setting up Compax3 C3F_T40
90 192-121102 N04 June 2008

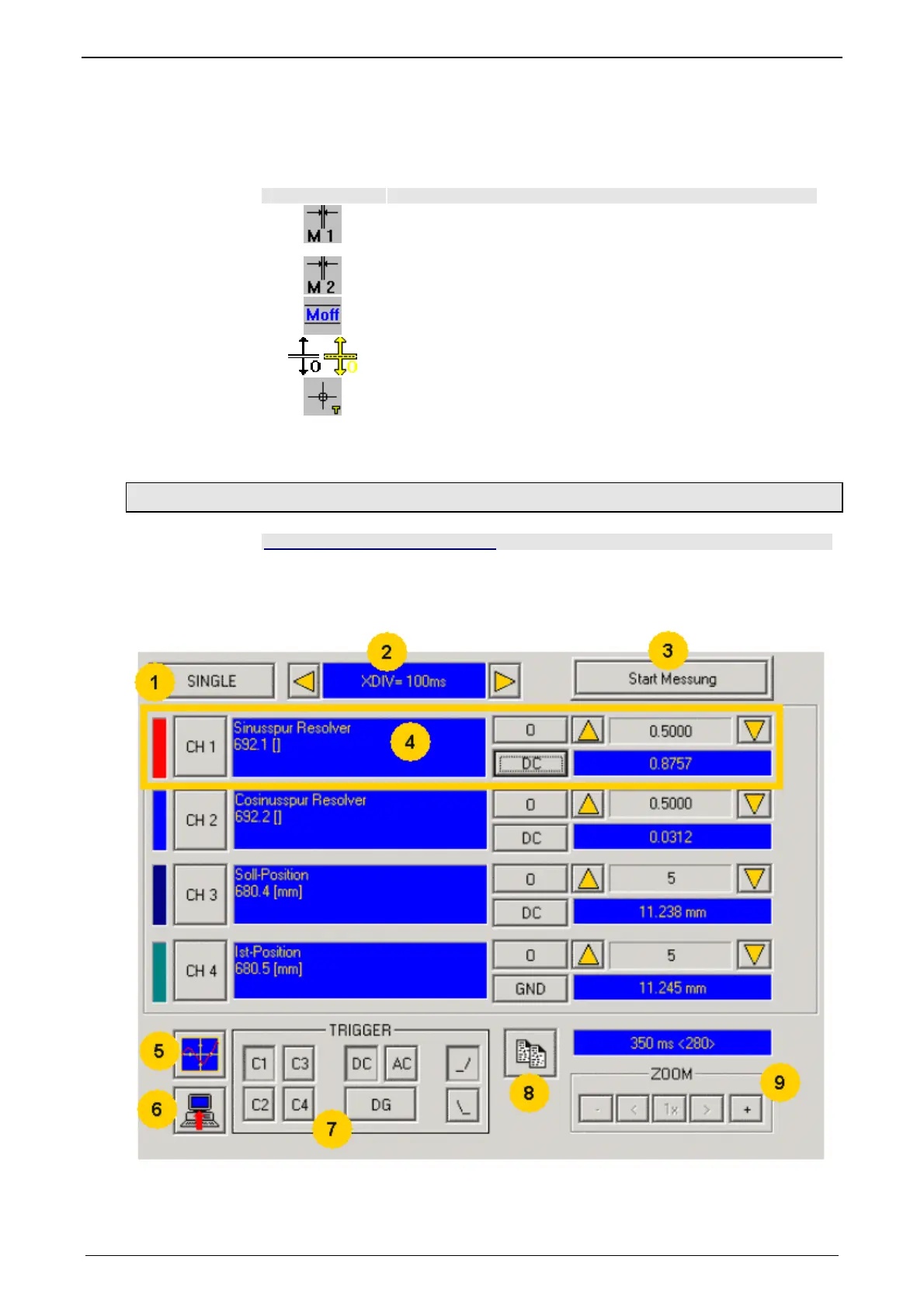

Cursormodes/ -functions
Depending on the operating mode, different cursor functions are available within
the osci monitor.
The functions can be changed sequentially by pressing on the right mouse button.
Cursor Symbol Function
Set Marker 1
the measurement values of the active channel as well as the y
difference to marker 2 are displayed
Set Marker 2
Delete and hide marker
Move offset of the active channel.
The yellow symbol indicates that the scrolling is active.
Set trigger level and pretrigger
In the ROLL operating mode, marker functions and set trigger level positions are
not available.
4.3.2.2 User interface
In this chapter you can read about:
Oscilloscope operating mode switch: ................................................................................ 91
Setting the time basis XDIV ............................................................................................... 91
Settings for channels 1..4 .................................................................................................. 92
Trigger settings .................................................................................................................. 93
Special functions................................................................................................................ 93

Parker Compax3 Fluid T40 Specifications

General

Series	Compax3
Power Supply Voltage	24 VDC
Output Current	40A
Protection Class	IP20
Communication	CANopen, RS232
Operating Temperature	0°C to +45°C
Relative Humidity	5 to 95 %, non-condensing
Storage Temperature	-25 to +70 °C
