192-121102 N04 June 2008 327

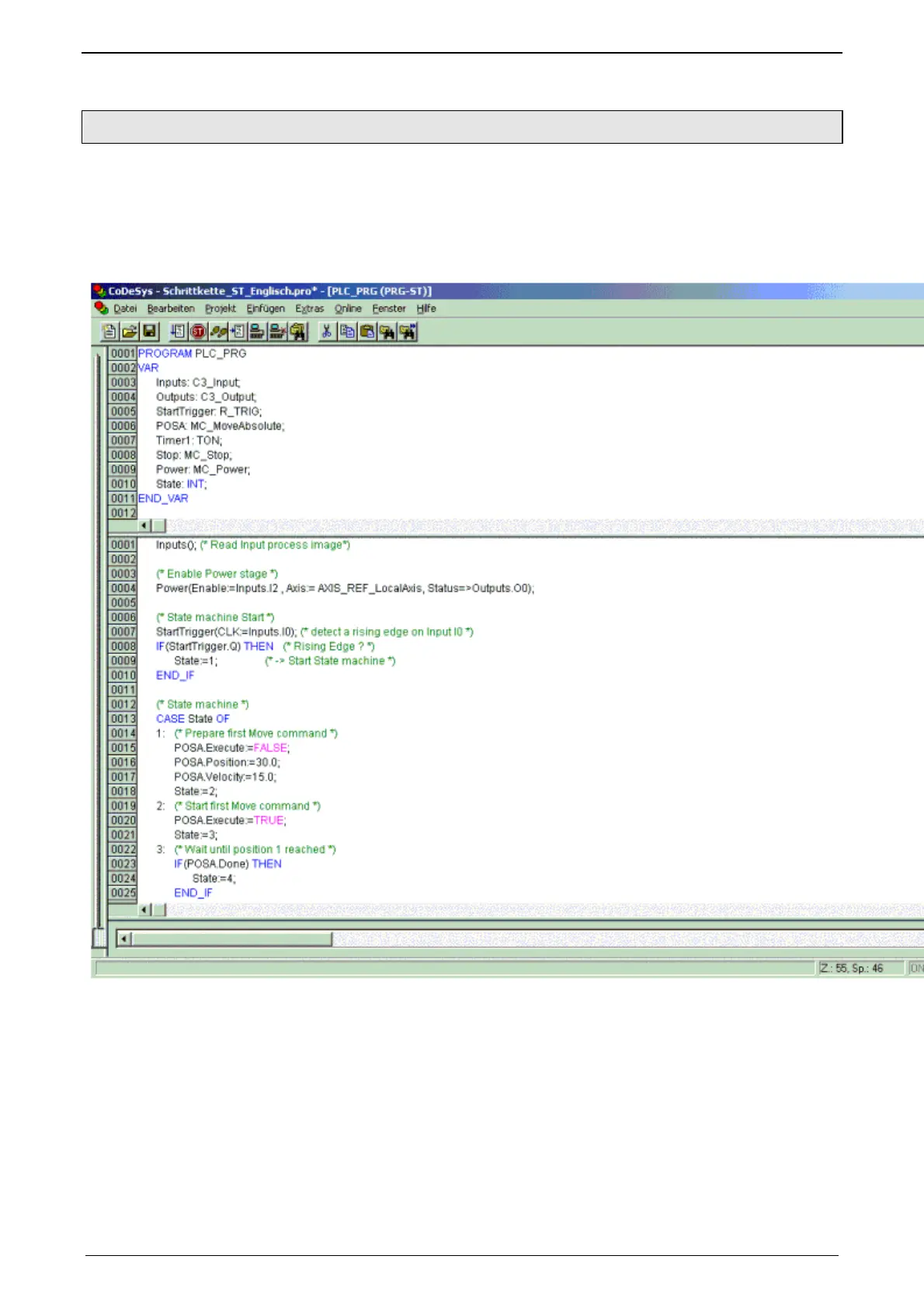

5.15.6. Example in ST: Cycle mode with a Move module
Input I2 enables the power output stage.
 Input I0 starts cycle mode. Two positions are approached alternately.
 There is a pause of 1 second after the first position is reached.
 There is a pause of 1.5 seconds after the second position is reached.
 Input I1 stops cycle mode.

Parker Compax3 Fluid T40 Specifications

General

Series	Compax3
Power Supply Voltage	24 VDC
Output Current	40A
Protection Class	IP20
Communication	CANopen, RS232
Operating Temperature	0°C to +45°C
Relative Humidity	5 to 95 %, non-condensing
Storage Temperature	-25 to +70 °C
