4.3.1. Optimization window

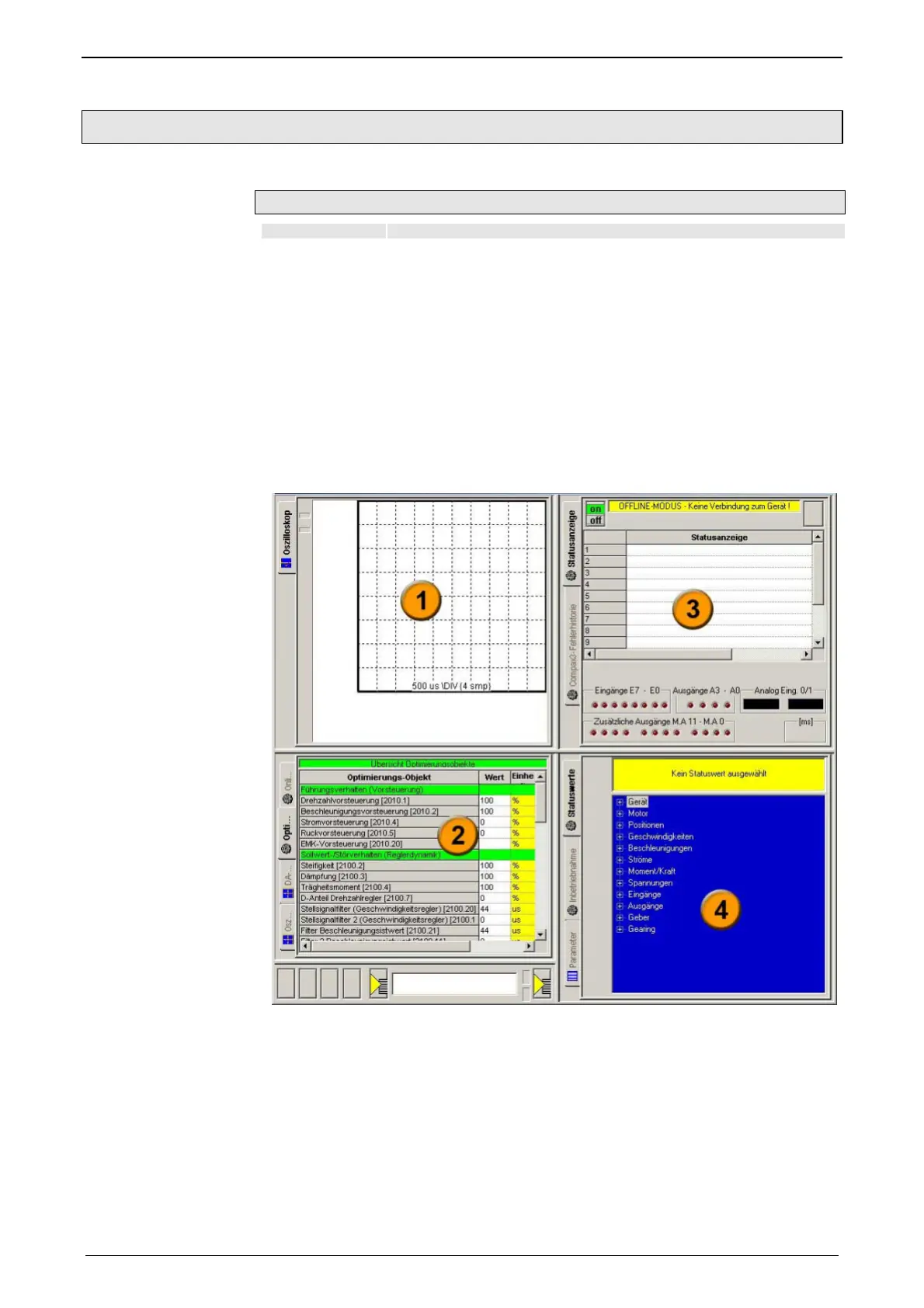

Layout and functions of the optimization window
Segmentation Functions (TABs)
Window1:
 Scope (see page 89)
Window 2:
 Optimization: Controller optimization (see page 97)
 D/A Monitor (see page 427): Output of status values via 2
analog outputs
 Scope Settings
Window 3:
 Status Display
 Compax3 Error History
Window 4:
 Status values
 Commissioning: Setup mode with load identification
 Parameters for commissioning, test movements (relative &
absolute) and for load identification.
