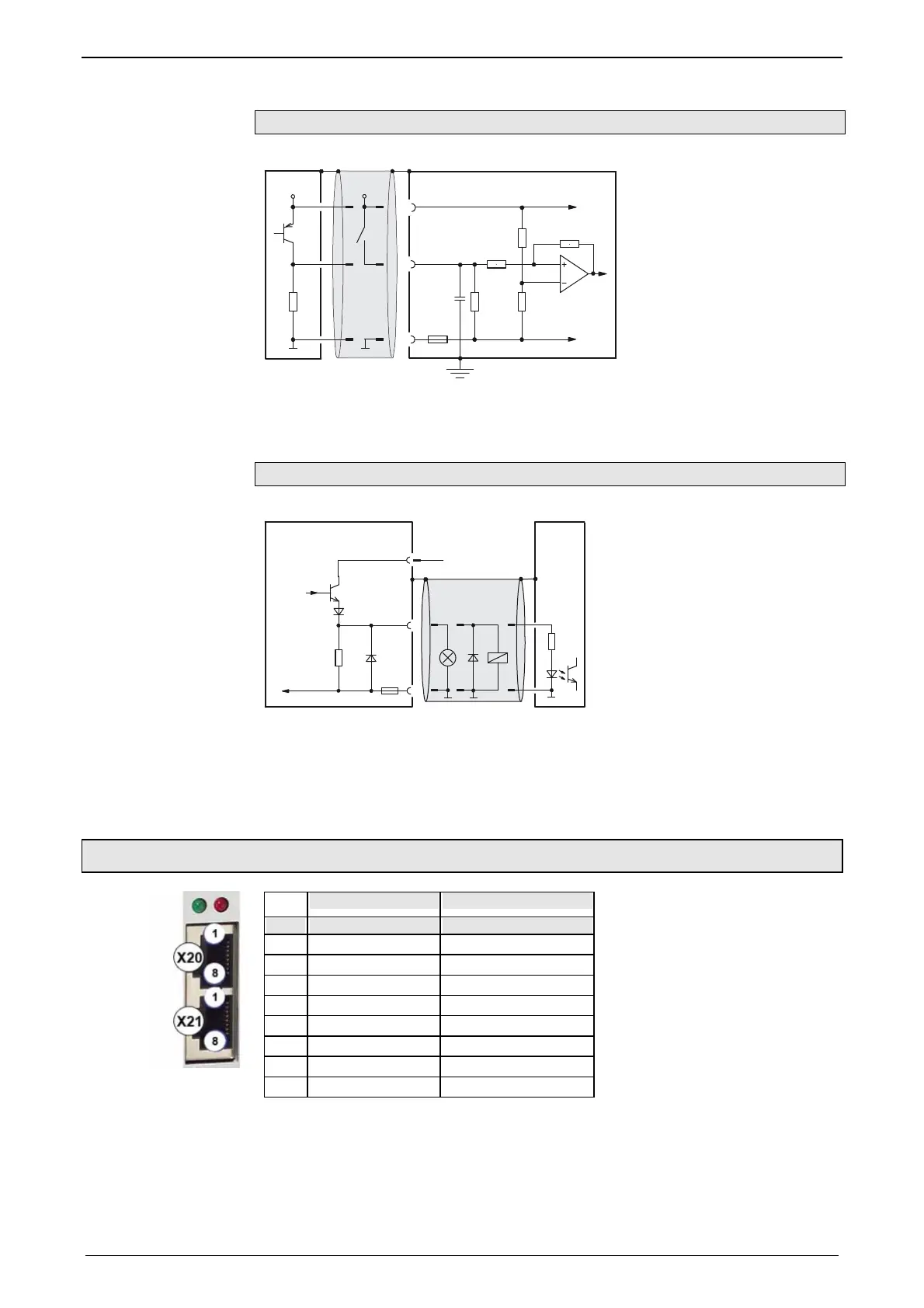

Compax3 Accessories C3F_T40
448 192-121102 N04 June 2008
Input wiring of digital inputs
100KΩ
X22/11
X22/6
10KΩ22KΩ
22KΩ
22KΩ
SPS/PLC
F1
X22/15
24VDC
24VDC
10nF
Compax
3
The circuit example is valid for all digital inputs!
F1: quick action electronic fuse; can be reset by switching the 24VDC supply off
and on again.
Output wiring of digital outputs
X12/2
22KΩ
X22/15
X22/11
SPS/
PLC
F1
24VDC
Compax
3
The circuit example is valid for all digital outputs!
The outputs are short circuit proof; a short circuit generates an error.
F1: quick action electronic fuse; can be reset by switching the 24VDC supply off
and on again.
11.6.2. HEDA (motion bus) - Option M11
RJ45 (X20) RJ45 (X21)
PIN HEDA in HEDA out
1 Rx Tx
2 Rx/ Tx/
3 Lx Lx
4 - Reserved
5 - Reserved
6 Lx/ Lx/
7 - Reserved
8 - Reserved
