Setting up Compax3 C3F_T40
48 192-121102 N04 June 2008
4.1.4.2 Cylinder / motor selection
The selection is made from the hdydraulics database.
Parker cylinders or Parker motors are stored there.
Furthermore you can create customer-specific cylinders/motors with the aid of the
C3HydraulicsManager and then select them here.
The selection of the drive is separated as follows:
Parker Cylinder
Customer cylinders.
Cylinder / motor data from the hydraulics database
A cylinder / motor can be created in the hydraulics database with or without
position feedback system.
4.1.4.3 Load configuration drive1
In order to make the settings of the servo controller, information on the external
load is needed. The more accurately the load of the system is known, the better is
the stability and the shorter is the settle-down time of the control loop. It is
important to specify the minimum and maximum external load for best possible
behavior under varying loads.
With rotatory drives: as minimum and maximum external moment of inertia.
With linear drives: as minimum and maximum external mass.
With a fixed load, minimum = maximum load or moment is entered.

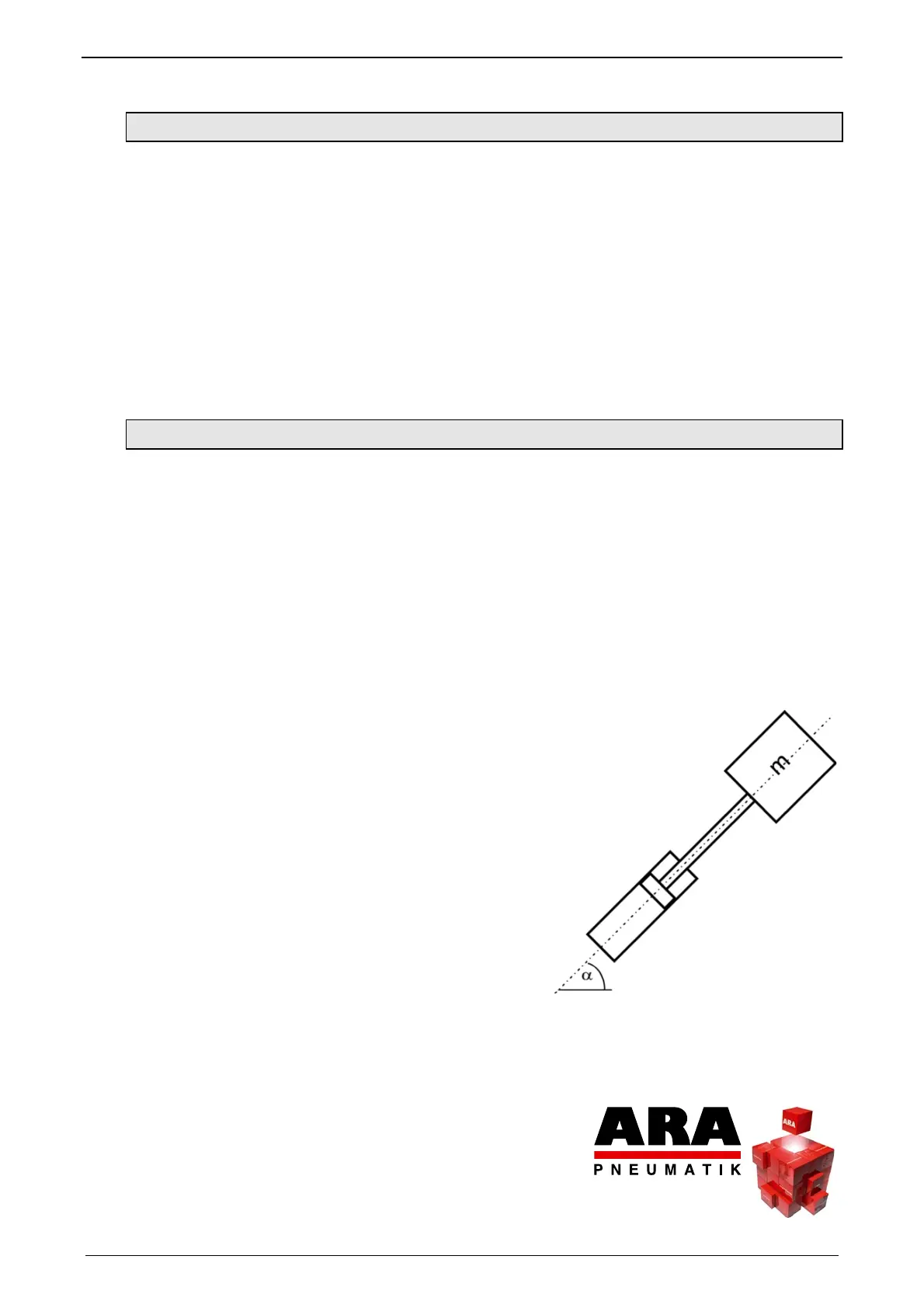

Installation position for linear drives:
The installation position is entered as an angle. For an upright load upwards, the
installation position is 90°.
Stroke length for linear drives:
This value is not stored in the hydraulics database.
