Parker Compax3 Fluid T40

Parker EME
Compax3 Accessories
192-121102 N04 June 2008 447
11.6 Options M1x
In this chapter you can read about:
Input/output option M12....................................................................................................447
HEDA (motion bus) - Option M11.....................................................................................448
Option M10 = HEDA (M11) & I/Os (M12) .........................................................................450
11.6.1. Input/output option M12
An optional input/output extension is available for Compax3. This option is named
M12 and offers 12 digital 24V inputs/outpus (Ports) on X22.
The use of the option as inputs or outputs is programmable in groups of 4 (via the
object 133.4).
The outputs are written via the object 133.3 "Output word for the I/O option"; this
applies only for the ports defined as output.
The inputs are read via the object 121.2 " Input word for the I/O option"; all ports
are being read, also the outputs.

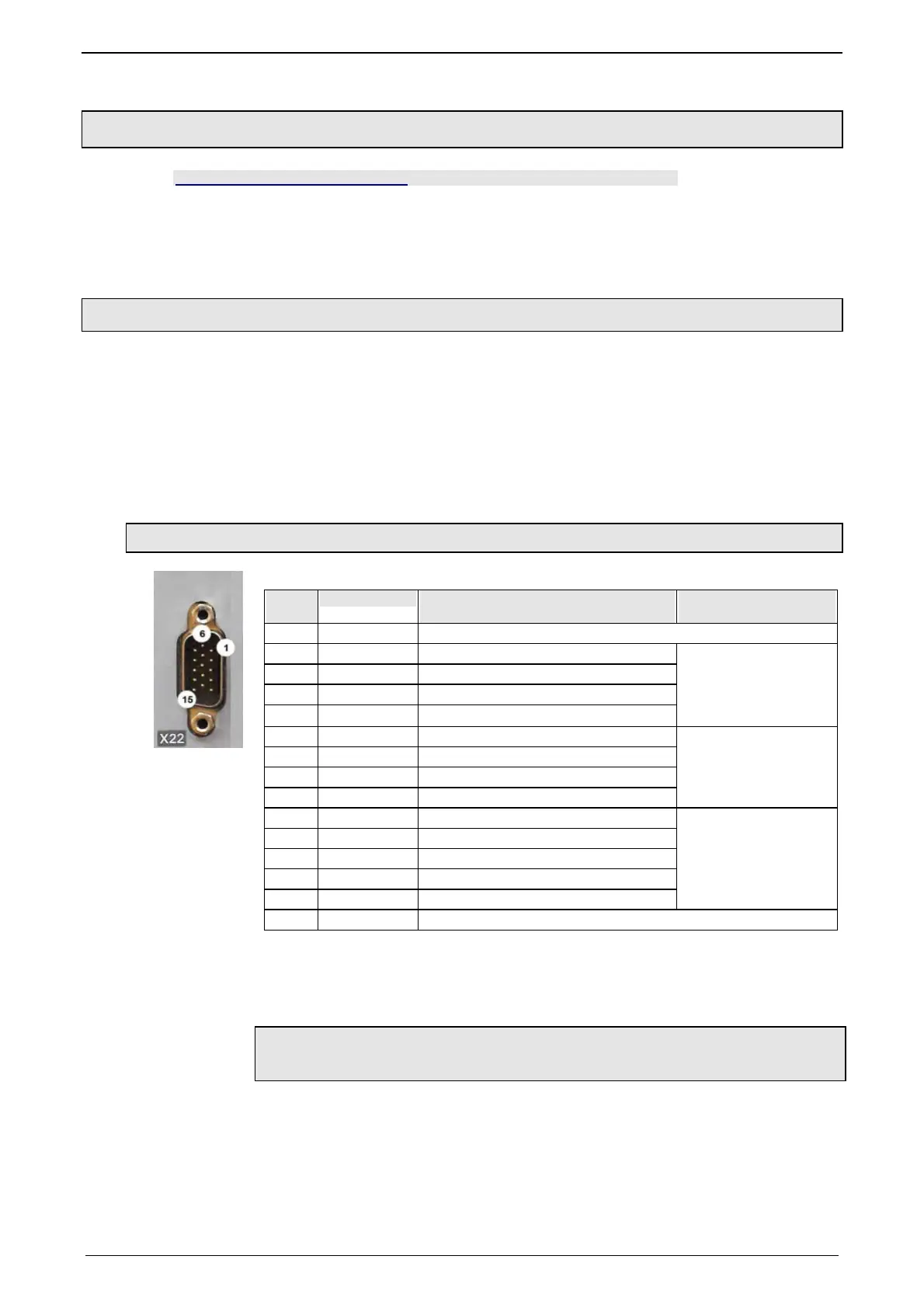

11.6.1.1 Assignment of the X22 connector
PIN
X22/
Input/output I/O /X22
High density/Sub D
Access via IEC
module:
1 n.c. Reserved
2 O0/I0 Output 0 / Input 0 - adjustable
3 O1/I1 Output 1 / Input 1 - adjustable
4 O2/I2 Output 2 / Input 2 - adjustable
5 O3/I3 Output 3 / Input 3 - adjustable
C3_IOAddition_0 (see
page 304)
6 O4/I4 Output 4 / Input 4 - adjustable
7 O5/I5 Output 5 / Input 5 - adjustable
8 O6/I6 Output 6 / Input 6 - adjustable
9 O7/I7 Output 7 / Input 7 - adjustable
C3_IOAddition_1 (see
page 304)
10 O8/I8 Output 8 / Input 8 - adjustable
11 E 24 VDC power supply
12 O9/I9 Output 9 / Input 9 - adjustable
13 O10/I10 Output 10 / Input 10 - adjustable
14 O11/I11 Output 11 / Input 11 - adjustable
C3_IOAddition_2 (see
page 305)
(not
24VDC)
15 E Gnd 24 V
The assignment can be adjusted.
All inputs and outputs have 24V level.
Maximum load on an output: 100mA
Maximum capacitive load: 50nF (max. 4 Compax3 inputs)
Caution! The 24VDC power supply (X22/11) must be supplied from an
external source and must be protected by a 1.2A delayed fuse!
