Compax3 Accessories
192-121102 N04 June 2008 451

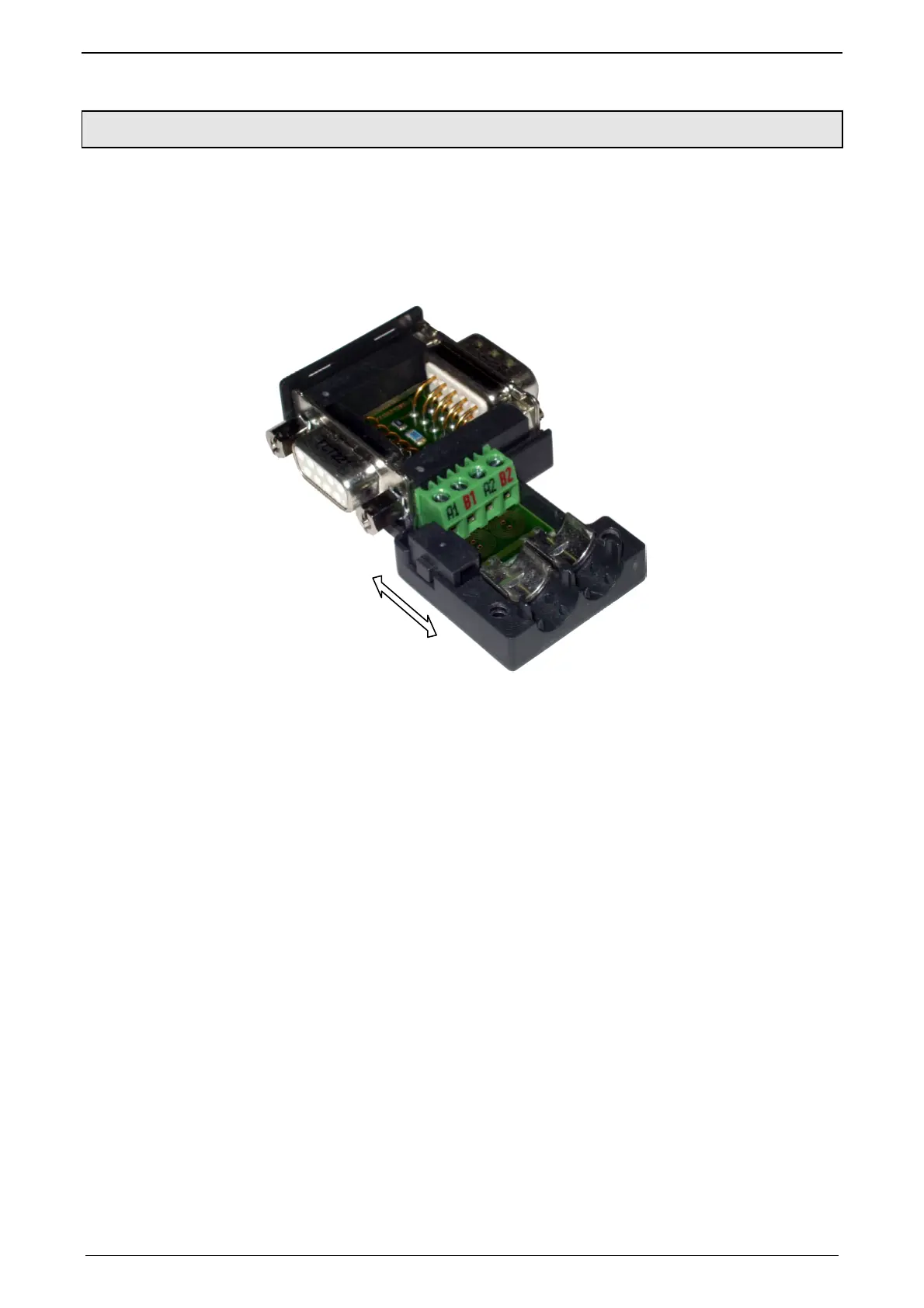

11.7 Profibus plug BUS08/01
We offer a Profibus plug and special cable as meterware for Profibus wiring:
 Profibus cable: SSL01/.. not prefabricated (color according to DESINA).
 Profibus plug: BUS8/01 with 2 cable inputs (for one incoming A1, B1 and one
continuing Profibus cable- A2, B2 -) and screw terminals as well as a switch for
activating the terminal resistor.
The terminal resistor must be activated on the first and on the last station (=
switch setting ON).
ON
OFF

Parker Compax3 Fluid T40 Specifications

General

Series	Compax3
Power Supply Voltage	24 VDC
Output Current	40A
Protection Class	IP20
Communication	CANopen, RS232
Operating Temperature	0°C to +45°C
Relative Humidity	5 to 95 %, non-condensing
Storage Temperature	-25 to +70 °C
