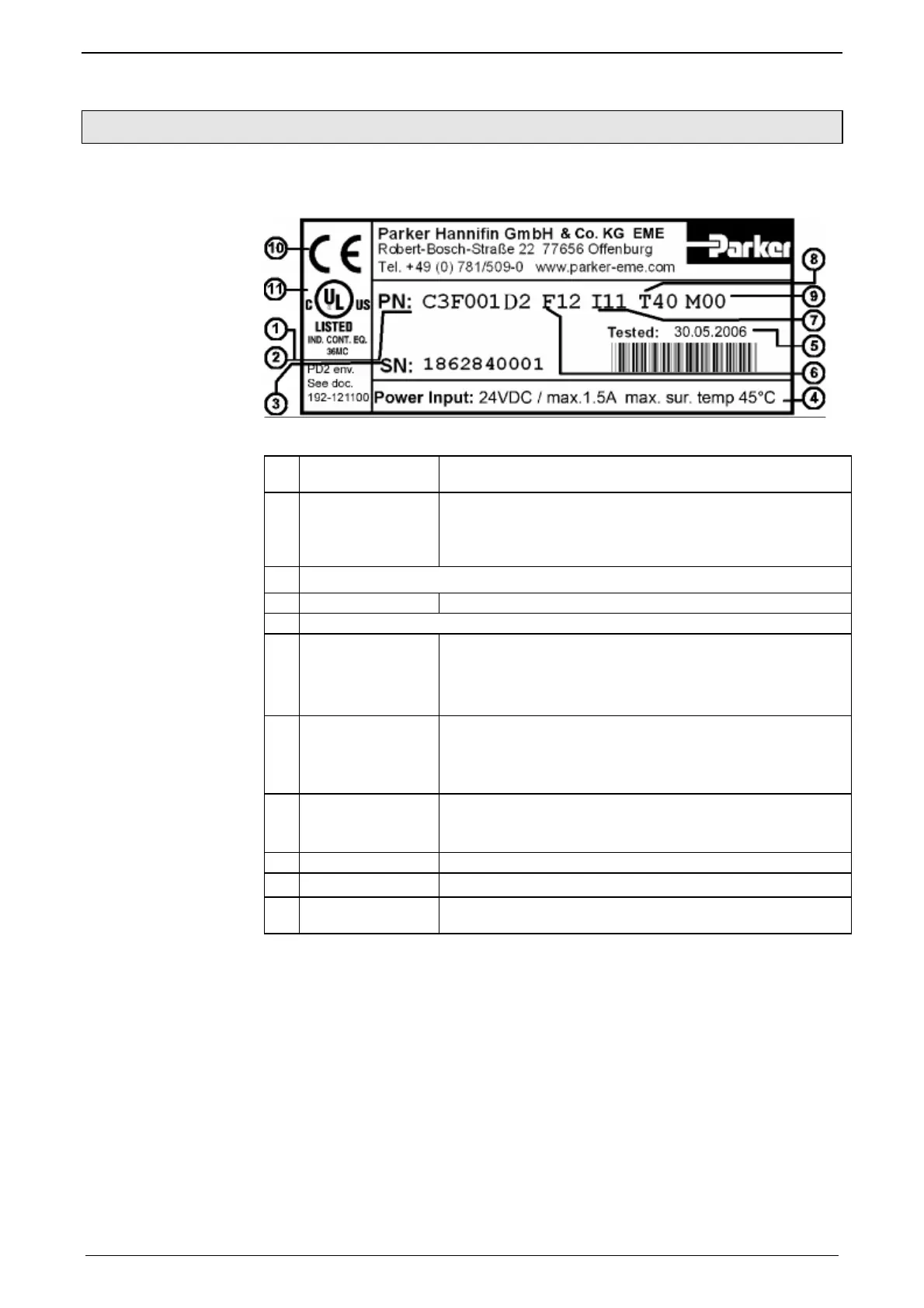

1.1.1. Type specification plate Compax3 Fluid
You will find the exact description of the device on the type specification
plate, which is located on the right side of the device:
Explanation:
1 Type designation
The complete order designation of the device (2, 6, -9...)
(Category No.)
2 C3F001D2
C3:Abbreviation for Compax3
F =Fluid:Hydraulics controller
001:+/-10V and 0..20mA outputs (16 Bit)
D2:24VDC device
3 Unique number of the particular device
4 Supply voltage 24 VDC
5 Date of factory test
6
Designation of the
feedback system
F12: Feedback Module
7 Device interface
I11 / I12: Digital Inputs / Outputs and RS232 / RS485
I20: Profibus DP
I21: CANopen
I22: DeviceNet
8 Technology function
T11: Positioning / pressure/force control
T30: Motion control programmable according to IEC61131-3
T40: Electronic cam generation
9 Options
Mxx:
10 CE compliance
11 UL certification PD2 (see page 456)
(degree of pollution)
Type specification
plate Compax3
Fluid:
